DJI SDR

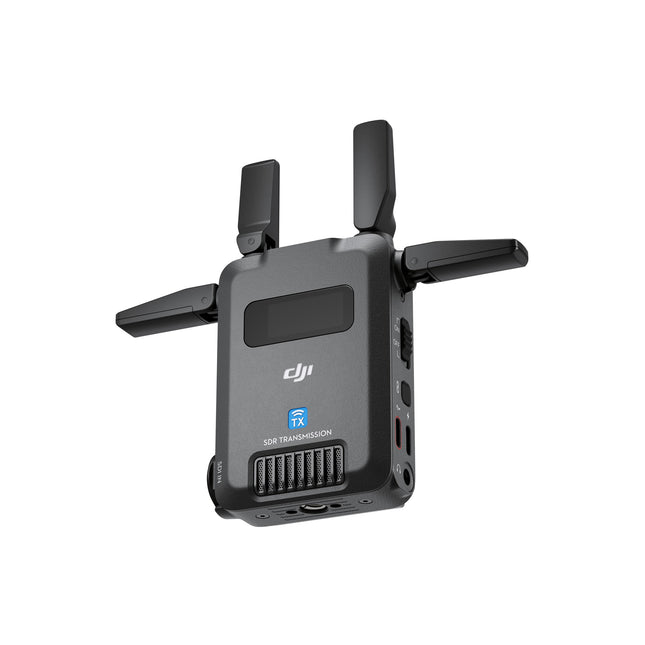

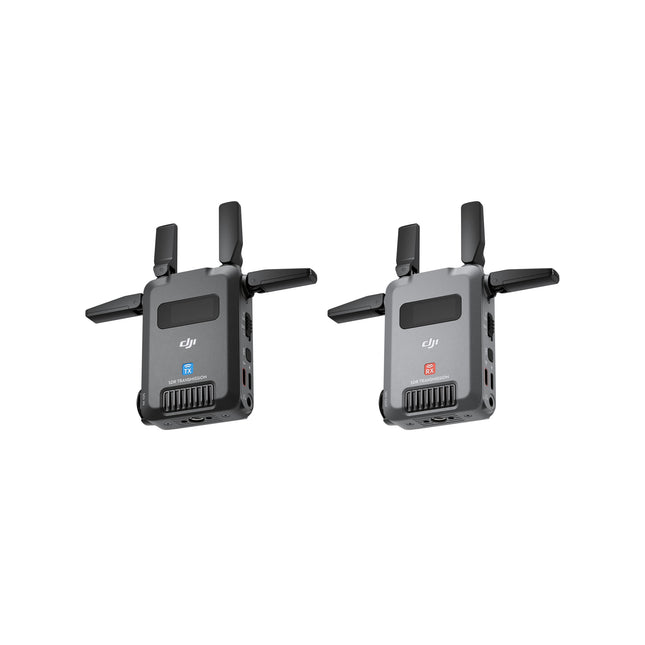

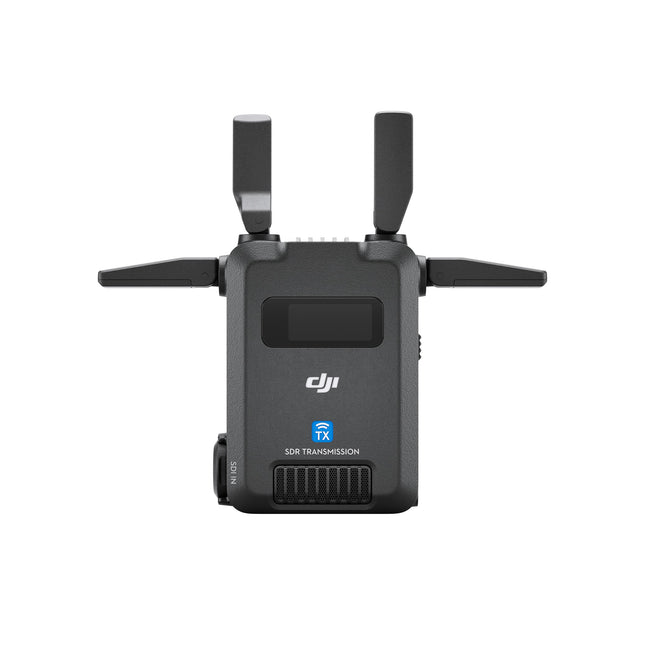

  SDR Transmission, Stable & Anti-Interference DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi. Strong Penetration, Extended Transmission Distance DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities. 20Mbps High Bitrate, 1080p FHD Image Quality DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3] Innovative USB-C Monitoring Experience DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet. Broadcast Mode, Unlimited Number of Receivers In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience. Specs Transmitter Weight Approx. 145 g (including antennas) Dimensions 86.5×64×32 mm (L×W×H, excluding antennas) Ports SDI Input PortHDMI Input Port3.5mm Stereo JackUSB-C Firmware Update PortUSB-C Power and Gimbal Communication Port Operating Frequency SDR Operating FrequencyNon-DFS Frequency Band:2.4000-2.4835 GHz5.725-5.850 GHzDFS Frequency Band:5.470-5.725 GHz5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.Wi-Fi Operating Frequency2.4000-2.4835 GHz5.150-5.250 GHz Transmitter Power (EIRP) SDR:2.4000-2.4835 GHz:< 30 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.470-5.725 GHz:< 30 dBm (FCC)< 23 dBm (CE/MIC)5.725-5.850 GHz:< 30 dBm (FCC)< 14 dBm (CE)＜30 dBm (SRRC)Wi-Fi:2.4000-2.4835 GHz:< 26 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.150-5.250 GHz:< 26 dBm (FCC)< 23 dBm (SRRC/CE/MIC) Wi-Fi Protocol 802.11b/a/g/n/ac/axSupports 2×2 MIMO Wi-Fi Max Bandwidth SDR:20 MHzWi-Fi:20 MHz Max Bitrate SDR:20 Mbps*Wi-Fi:8 Mbps* Measured in Control mode, with Broadcast mode turned off. Power Consumption 8.2 WMeasured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. Power Supply USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)USB-C Power Supply Type 2: 6.8-17.2 V DCNP-F Battery Power Supply Voltage: 6.8-8.4 V Input Video Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).720p: 50/59.94/60fps Input Audio Format SDI embedded, HDMI embedded Video Transmission System SDR + Wi-Fi Video Transmission Latency SDR:80 ms* (including camera and screen display latency)35 ms* (excluding camera and screen display latency)Wi-Fi:110 ms*** Measured when shooting 1080p/60fps video with Broadcast mode turned off.** Measured when shooting 1080p/60fps video. Video Coding Format H.264 Max Transmission Distance SDR:3 km (FCC)*2 km (CE/SRRC/MIC)*Wi-Fi:200 m* Measured in Control mode, with Broadcast mode turned off. Operating Temperature -10° to 40° C (14° to 104° F) Receiver Weight Approx. 145 g (including antennas) Dimensions 86.5×64×32 mm (L×W×H, excluding antennas) Ports SDI Output PortHDMI Output Port3.5mm Stereo JackUSB-C Firmware Update and Video Output PortUSB-C Power Port Operating Frequency SDR Operating FrequencyNon-DFS Frequency Band:2.4000-2.4835 GHz5.725-5.850 GHz5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. Transmitter Power (EIRP) SDR:2.4000-2.4835 GHz:< 30 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.725-5.850 GHz:< 30 dBm (FCC)< 14 dBm (CE)< 23 dBm (SRRC) Max Bandwidth 20 MHz Max Bitrate 20 MbpsMeasured in Control mode, with Broadcast mode turned off. Power Consumption 8.3 WMeasured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. Power Supply USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)USB-C Power Supply Type 2: 6.8-17.2 V DCNP-F Battery Power Supply Voltage: 6.8-8.4V Output Video Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).720p: 50/59.94/60fps Output Audio Format PCM Video Transmission System SDR Video Transmission Latency 80 ms (including camera and screen display latency)35 ms (excluding camera and screen display latency)Measured when shooting 1080p/60fps video with Broadcast mode turned off. Video Coding Format H.264 Max Transmission Distance 3 km (FCC)2 km (CE/SRRC/MIC)Measured in Control mode, with Broadcast mode turned off. Operating Temperature -10° to 40° C (14° to 104° F) In the Box DJI SDR Transmission Transmitter (TX) × 1 DJI SDR Transmission Receiver (RX) × 1 USB-A to USB-C Cable (43 cm) × 1 TX Camera Mounting Adapter Plate × 1 TX Gimbal Mounting Adapter Plate × 1

Read more less

  SDR Transmission, Stable & Anti-Interference DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi. Strong Penetration, Extended Transmission Distance DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities. 20Mbps High Bitrate, 1080p FHD Image Quality DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3] Innovative USB-C Monitoring Experience DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet. Broadcast Mode, Unlimited Number of Receivers In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience. Specs Transmitter Weight Approx. 145 g (including antennas) Dimensions 86.5×64×32 mm (L×W×H, excluding antennas) Ports SDI Input PortHDMI Input Port3.5mm Stereo JackUSB-C Firmware Update PortUSB-C Power and Gimbal Communication Port Operating Frequency SDR Operating FrequencyNon-DFS Frequency Band:2.4000-2.4835 GHz5.725-5.850 GHzDFS Frequency Band:5.470-5.725 GHz5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.Wi-Fi Operating Frequency2.4000-2.4835 GHz5.150-5.250 GHz Transmitter Power (EIRP) SDR:2.4000-2.4835 GHz:< 30 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.470-5.725 GHz:< 30 dBm (FCC)< 23 dBm (CE/MIC)5.725-5.850 GHz:< 30 dBm (FCC)< 14 dBm (CE)＜30 dBm (SRRC)Wi-Fi:2.4000-2.4835 GHz:< 26 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.150-5.250 GHz:< 26 dBm (FCC)< 23 dBm (SRRC/CE/MIC) Wi-Fi Protocol 802.11b/a/g/n/ac/axSupports 2×2 MIMO Wi-Fi Max Bandwidth SDR:20 MHzWi-Fi:20 MHz Max Bitrate SDR:20 Mbps*Wi-Fi:8 Mbps* Measured in Control mode, with Broadcast mode turned off. Power Consumption 8.2 WMeasured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. Power Supply USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)USB-C Power Supply Type 2: 6.8-17.2 V DCNP-F Battery Power Supply Voltage: 6.8-8.4 V Input Video Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).720p: 50/59.94/60fps Input Audio Format SDI embedded, HDMI embedded Video Transmission System SDR + Wi-Fi Video Transmission Latency SDR:80 ms* (including camera and screen display latency)35 ms* (excluding camera and screen display latency)Wi-Fi:110 ms*** Measured when shooting 1080p/60fps video with Broadcast mode turned off.** Measured when shooting 1080p/60fps video. Video Coding Format H.264 Max Transmission Distance SDR:3 km (FCC)*2 km (CE/SRRC/MIC)*Wi-Fi:200 m* Measured in Control mode, with Broadcast mode turned off. Operating Temperature -10° to 40° C (14° to 104° F)   In the Box DJI SDR Transmission Transmitter (TX) × 1 DJI SDR Transmission Receiver (RX) × 1 USB-A to USB-C Cable (43 cm) × 1 TX Camera Mounting Adapter Plate × 1 TX Gimbal Mounting Adapter Plate × 1

Read more less

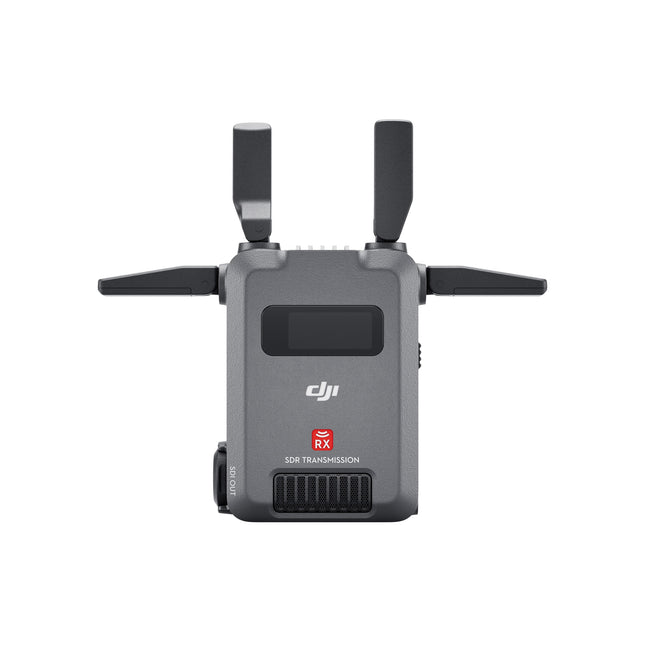

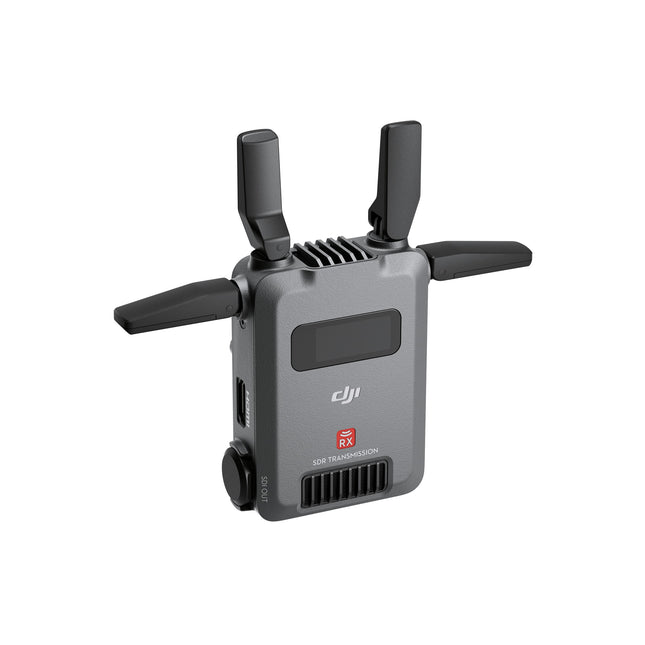

  SDR Transmission, Stable & Anti-Interference DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi. Strong Penetration, Extended Transmission Distance DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities. 20Mbps High Bitrate, 1080p FHD Image Quality DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3] Innovative USB-C Monitoring Experience DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet. Broadcast Mode, Unlimited Number of Receivers In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience. Specs Receiver Weight Approx. 145 g (including antennas) Dimensions 86.5×64×32 mm (L×W×H, excluding antennas) Ports SDI Output PortHDMI Output Port3.5mm Stereo JackUSB-C Firmware Update and Video Output PortUSB-C Power Port Operating Frequency SDR Operating FrequencyNon-DFS Frequency Band:2.4000-2.4835 GHz5.725-5.850 GHz5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. Transmitter Power (EIRP) SDR:2.4000-2.4835 GHz:< 30 dBm (FCC)< 20 dBm (SRRC/CE/MIC)5.725-5.850 GHz:< 30 dBm (FCC)< 14 dBm (CE)< 23 dBm (SRRC) Max Bandwidth 20 MHz Max Bitrate 20 MbpsMeasured in Control mode, with Broadcast mode turned off. Power Consumption 8.3 WMeasured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. Power Supply USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)USB-C Power Supply Type 2: 6.8-17.2 V DCNP-F Battery Power Supply Voltage: 6.8-8.4V Output Video Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).720p: 50/59.94/60fps Output Audio Format PCM Video Transmission System SDR Video Transmission Latency 80 ms (including camera and screen display latency)35 ms (excluding camera and screen display latency)Measured when shooting 1080p/60fps video with Broadcast mode turned off. Video Coding Format H.264 Max Transmission Distance 3 km (FCC)2 km (CE/SRRC/MIC)Measured in Control mode, with Broadcast mode turned off. Operating Temperature -10° to 40° C (14° to 104° F) In the Box DJI SDR Transmission Receiver (RX) × 1

Read more less

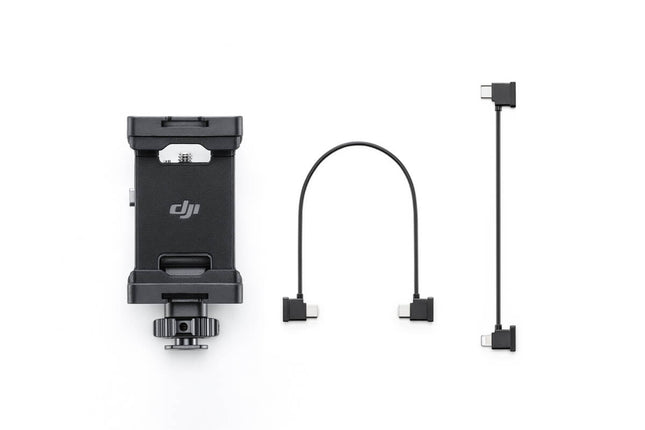

  This kit integrates the receiver with a smartphone, presenting an enhanced handheld monitoring experience. It features rotation capability for convenient vertical shooting monitoring. The receiver can connect to a smartphone via the USB-C port, delivering SDR video transmission at a bitrate of up to 20 Mbps. It is stable, reliable, and capable of powering a smartphone during the monitoring process. In The Box RX to Phone Connection Cable (USB-C to USB-C, 22 cm) × 1 RX to Phone Connection Cable (Lightning, 12 cm) × 1 RX Phone Holder × 1 Specifications Dimensions: 78×48×75 mm (L×W×H) Weight: 134 g Compatibility DJI SDR Transmission Receiver

Read more less

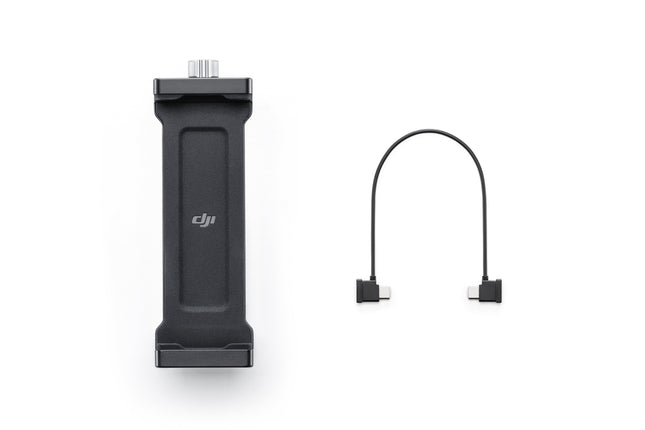

Overview This kit integrates the receiver with a tablet, presenting an enhanced handheld monitoring experience. The receiver can connect to a tablet via the USB-C port, delivering SDR video transmission at a bitrate of up to 20 Mbps. It is stable, reliable, and also capable of powering the tablet during the monitoring process. Tips Due to limited charging power, when connected to tablets or certain smartphones, it can only slow down the rate at which the device's battery drains. In The Box RX to Phone Connection Cable (USB-C to USB-C, 22 cm) × 1 RX Tablet Holder × 1 Specifications Dimensions: 155×50×66 mm (L×W×H) Weight: 219 g Compatibility DJI SDR Transmission Receiver
