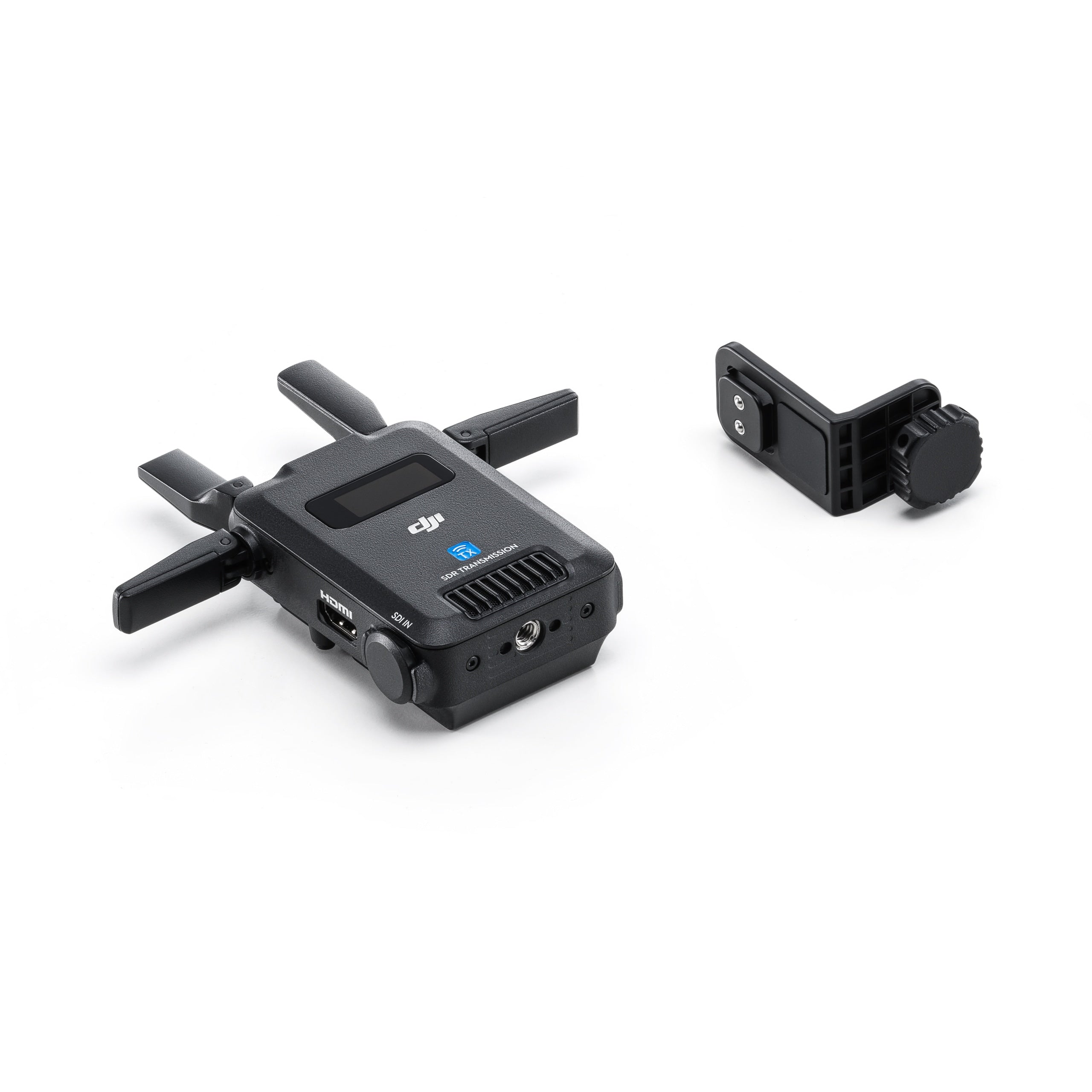

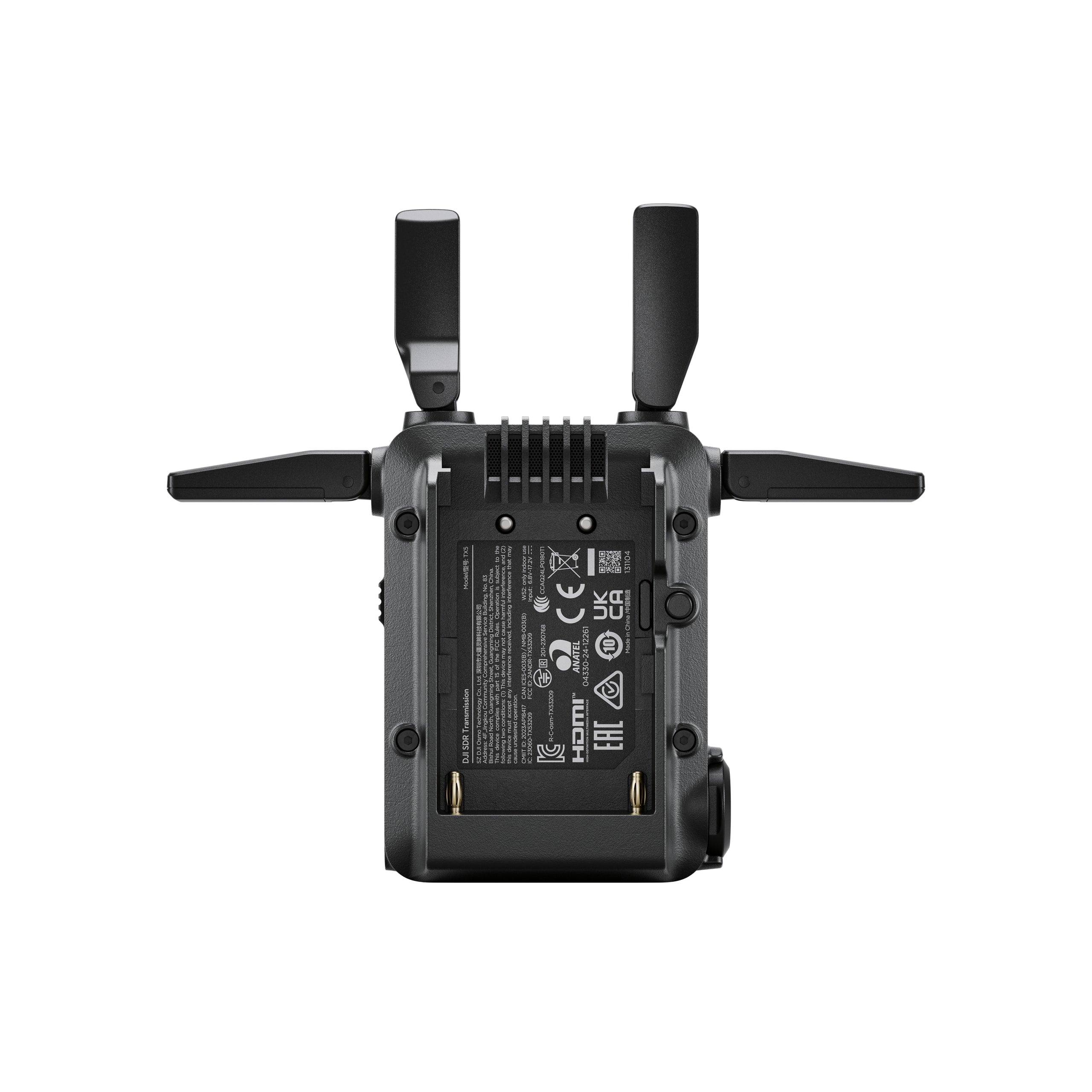

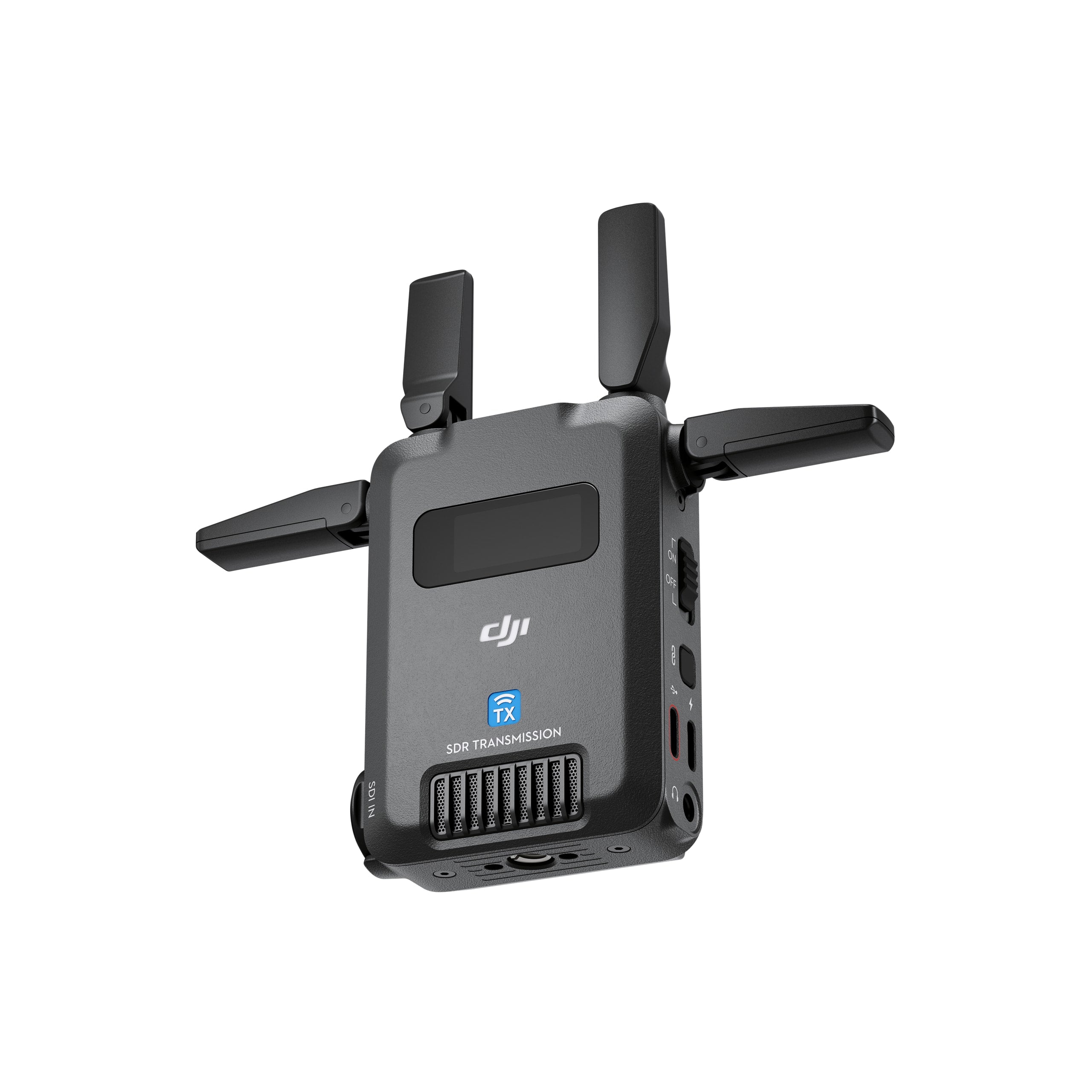

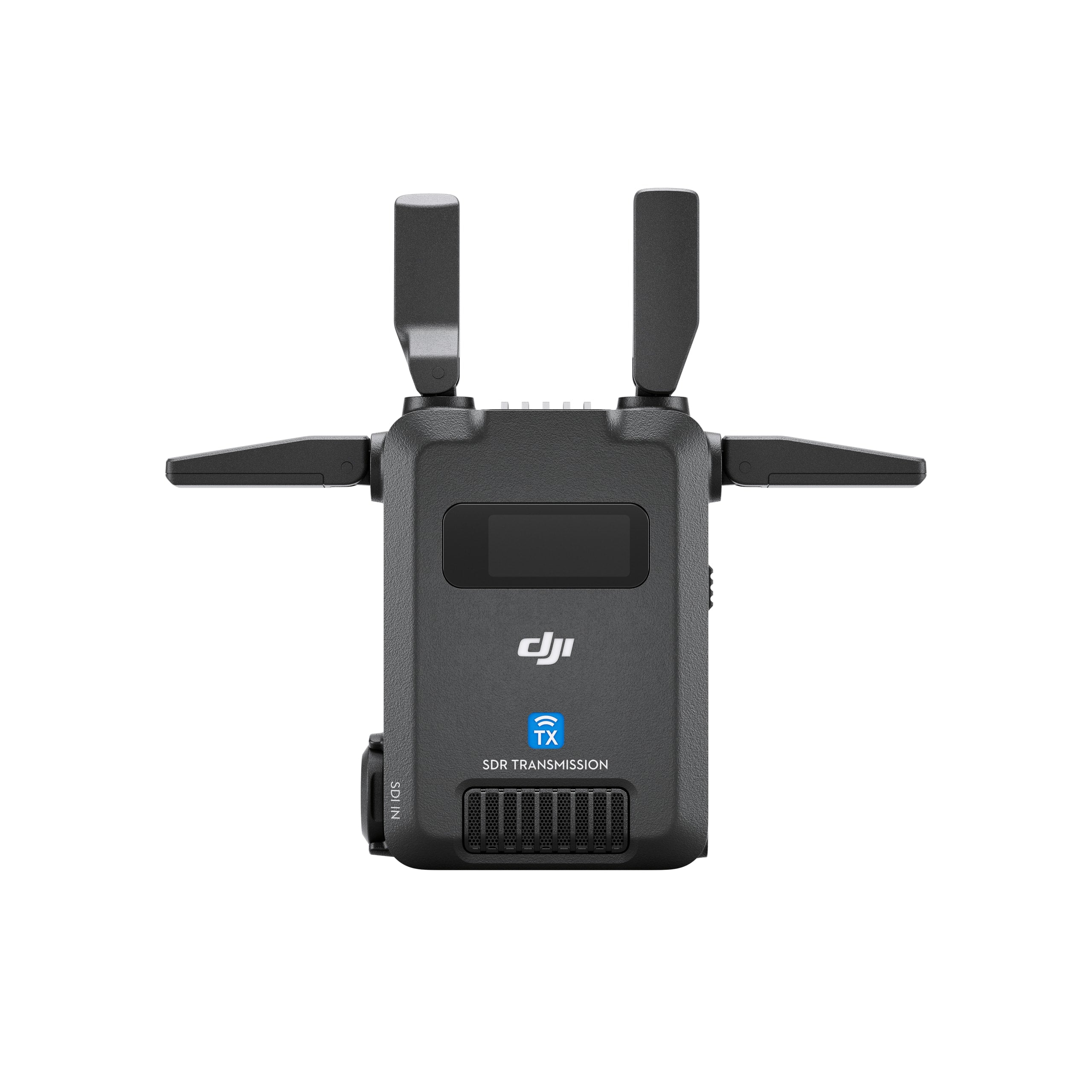

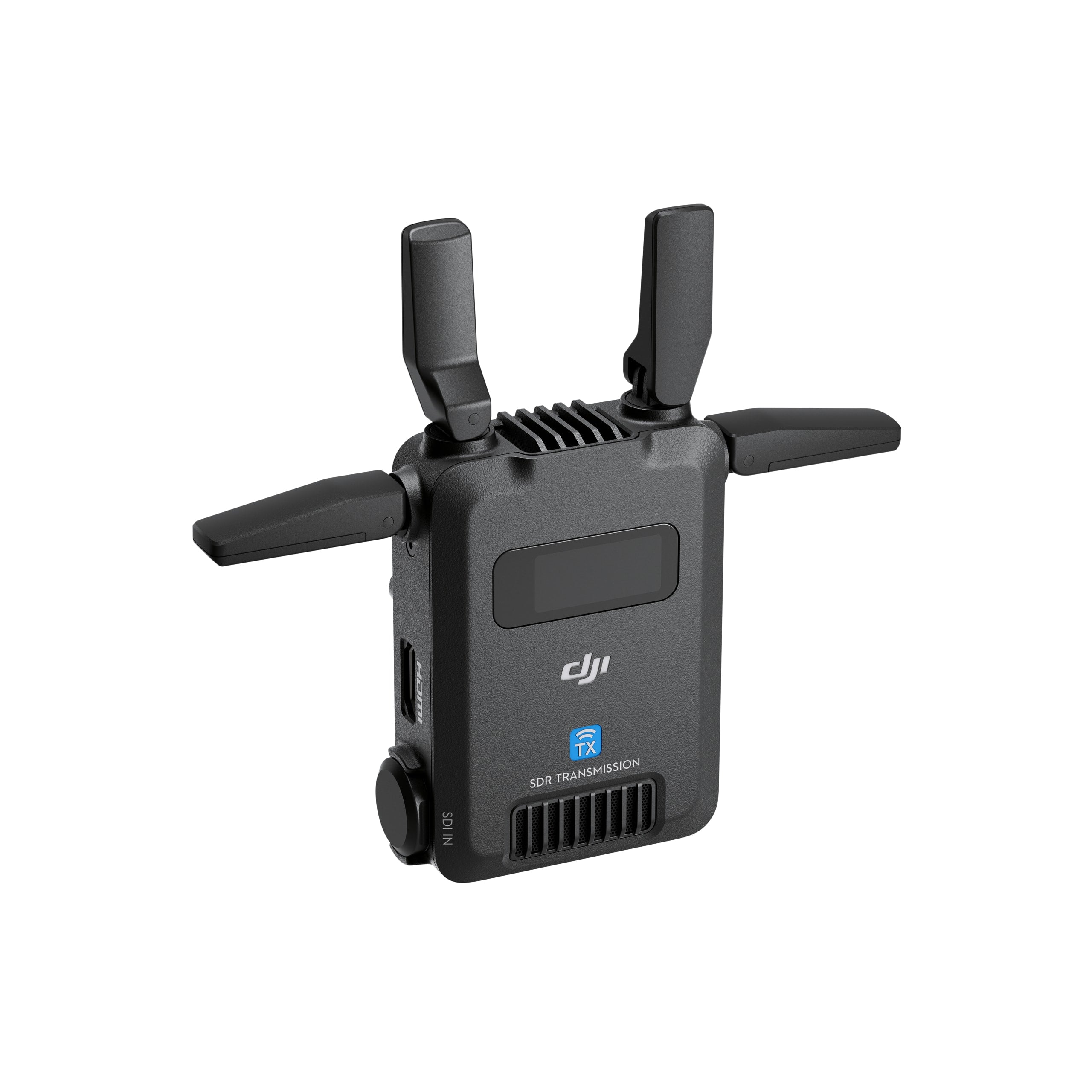

DJI SDR Transmission Transmitter

    Description



    • SDR Transmission, Stable & Anti-Interference

      DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

    • Strong Penetration, Extended Transmission Distance

      DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

    • 20Mbps High Bitrate, 1080p FHD Image Quality

      DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

    • Innovative USB-C Monitoring Experience

      DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

    • Broadcast Mode, Unlimited Number of Receivers

      In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

    Specs




    Transmitter

    • Weight

    • Approx. 145 g (including antennas)

    • Dimensions

    • 86.5×64×32 mm (L×W×H, excluding antennas)

    • Ports

    • SDI Input Port
      HDMI Input Port
      3.5mm Stereo Jack
      USB-C Firmware Update Port
      USB-C Power and Gimbal Communication Port

    • Operating Frequency

    • SDR Operating Frequency
      Non-DFS Frequency Band:
      2.4000-2.4835 GHz
      5.725-5.850 GHz
      DFS Frequency Band:
      5.470-5.725 GHz

      5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

      Wi-Fi Operating Frequency
      2.4000-2.4835 GHz
      5.150-5.250 GHz

    • Transmitter Power (EIRP)

    • SDR:
      2.4000-2.4835 GHz:
      < 30 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.470-5.725 GHz:
      < 30 dBm (FCC)
      < 23 dBm (CE/MIC)

      5.725-5.850 GHz:
      < 30 dBm (FCC)
      < 14 dBm (CE)
      ＜30 dBm (SRRC)

      Wi-Fi:
      2.4000-2.4835 GHz:
      < 26 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.150-5.250 GHz:
      < 26 dBm (FCC)
      < 23 dBm (SRRC/CE/MIC)

    • Wi-Fi Protocol

    • 802.11b/a/g/n/ac/ax
      Supports 2×2 MIMO Wi-Fi

    • Max Bandwidth

    • SDR:
      20 MHz

      Wi-Fi:
      20 MHz

    • Max Bitrate

    • SDR:
      20 Mbps*

      Wi-Fi:
      8 Mbps

      * Measured in Control mode, with Broadcast mode turned off.

    • Power Consumption

    • 8.2 W

      Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

    • Power Supply

    • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
      USB-C Power Supply Type 2: 6.8-17.2 V DC
      NP-F Battery Power Supply Voltage: 6.8-8.4 V

    • Input Video Format

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
      1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
      720p: 50/59.94/60fps

    • Input Audio Format

    • SDI embedded, HDMI embedded

    • Video Transmission System

    • SDR + Wi-Fi

    • Video Transmission Latency

    • SDR:
      80 ms* (including camera and screen display latency)
      35 ms* (excluding camera and screen display latency)
      Wi-Fi:
      110 ms**

      * Measured when shooting 1080p/60fps video with Broadcast mode turned off.
      ** Measured when shooting 1080p/60fps video.

    • Video Coding Format

    • H.264

    • Max Transmission Distance

    • SDR:
      3 km (FCC)*
      2 km (CE/SRRC/MIC)*
      Wi-Fi:
      200 m

      * Measured in Control mode, with Broadcast mode turned off.

    • Operating Temperature

    • -10° to 40° C (14° to 104° F)



      In the Box


      • DJI SDR Transmission Transmitter (TX) × 1


      • DJI SDR Transmission Receiver (RX) × 1


      • USB-A to USB-C Cable (43 cm) × 1


      • TX Camera Mounting Adapter Plate × 1


      • TX Gimbal Mounting Adapter Plate × 1

      DJI SDR Transmission Transmitter

        Product form

        SKU: CP-RN-00000400
        Barcode: 190021109087

        Out of stock

        $639.00

          • Free Shipping on orders over $500

          Description



          • SDR Transmission, Stable & Anti-Interference

            DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

          • Strong Penetration, Extended Transmission Distance

            DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

          • 20Mbps High Bitrate, 1080p FHD Image Quality

            DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

          • Innovative USB-C Monitoring Experience

            DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

          • Broadcast Mode, Unlimited Number of Receivers

            In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

          Specs




          Transmitter

          • Weight

          • Approx. 145 g (including antennas)

          • Dimensions

          • 86.5×64×32 mm (L×W×H, excluding antennas)

          • Ports

          • SDI Input Port
            HDMI Input Port
            3.5mm Stereo Jack
            USB-C Firmware Update Port
            USB-C Power and Gimbal Communication Port

          • Operating Frequency

          • SDR Operating Frequency
            Non-DFS Frequency Band:
            2.4000-2.4835 GHz
            5.725-5.850 GHz
            DFS Frequency Band:
            5.470-5.725 GHz

            5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

            Wi-Fi Operating Frequency
            2.4000-2.4835 GHz
            5.150-5.250 GHz

          • Transmitter Power (EIRP)

          • SDR:
            2.4000-2.4835 GHz:
            < 30 dBm (FCC)
            < 20 dBm (SRRC/CE/MIC)

            5.470-5.725 GHz:
            < 30 dBm (FCC)
            < 23 dBm (CE/MIC)

            5.725-5.850 GHz:
            < 30 dBm (FCC)
            < 14 dBm (CE)
            ＜30 dBm (SRRC)

            Wi-Fi:
            2.4000-2.4835 GHz:
            < 26 dBm (FCC)
            < 20 dBm (SRRC/CE/MIC)

            5.150-5.250 GHz:
            < 26 dBm (FCC)
            < 23 dBm (SRRC/CE/MIC)

          • Wi-Fi Protocol

          • 802.11b/a/g/n/ac/ax
            Supports 2×2 MIMO Wi-Fi

          • Max Bandwidth

          • SDR:
            20 MHz

            Wi-Fi:
            20 MHz

          • Max Bitrate

          • SDR:
            20 Mbps*

            Wi-Fi:
            8 Mbps

            * Measured in Control mode, with Broadcast mode turned off.

          • Power Consumption

          • 8.2 W

            Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

          • Power Supply

          • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
            USB-C Power Supply Type 2: 6.8-17.2 V DC
            NP-F Battery Power Supply Voltage: 6.8-8.4 V

          • Input Video Format

          • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
            1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
            720p: 50/59.94/60fps

          • Input Audio Format

          • SDI embedded, HDMI embedded

          • Video Transmission System

          • SDR + Wi-Fi

          • Video Transmission Latency

          • SDR:
            80 ms* (including camera and screen display latency)
            35 ms* (excluding camera and screen display latency)
            Wi-Fi:
            110 ms**

            * Measured when shooting 1080p/60fps video with Broadcast mode turned off.
            ** Measured when shooting 1080p/60fps video.

          • Video Coding Format

          • H.264

          • Max Transmission Distance

          • SDR:
            3 km (FCC)*
            2 km (CE/SRRC/MIC)*
            Wi-Fi:
            200 m

            * Measured in Control mode, with Broadcast mode turned off.

          • Operating Temperature

          • -10° to 40° C (14° to 104° F)



            In the Box


            • DJI SDR Transmission Transmitter (TX) × 1


            • DJI SDR Transmission Receiver (RX) × 1


            • USB-A to USB-C Cable (43 cm) × 1


            • TX Camera Mounting Adapter Plate × 1


            • TX Gimbal Mounting Adapter Plate × 1
