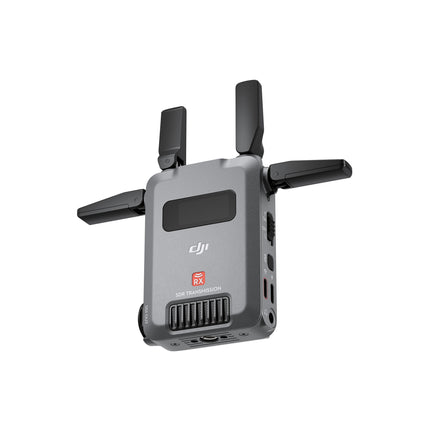

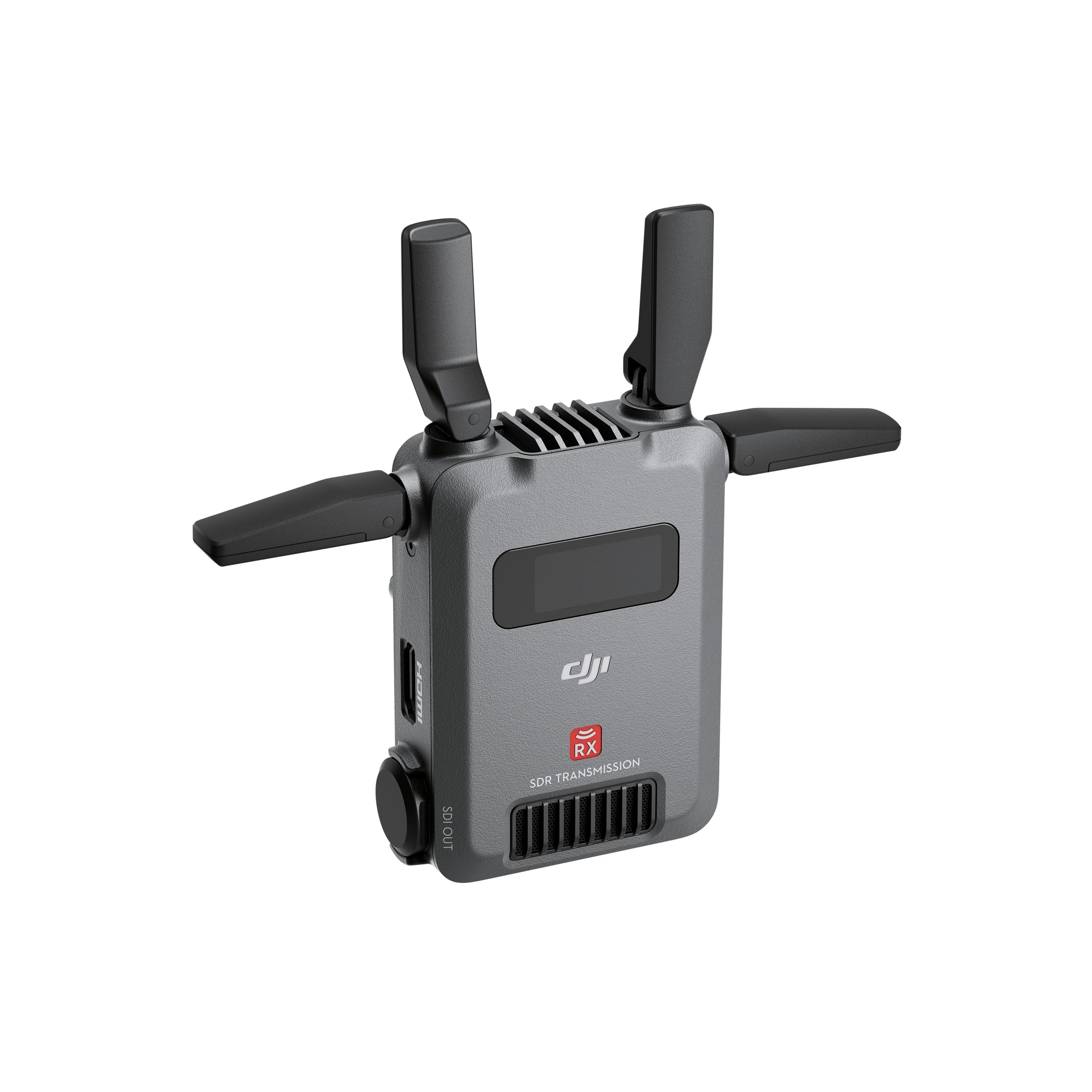

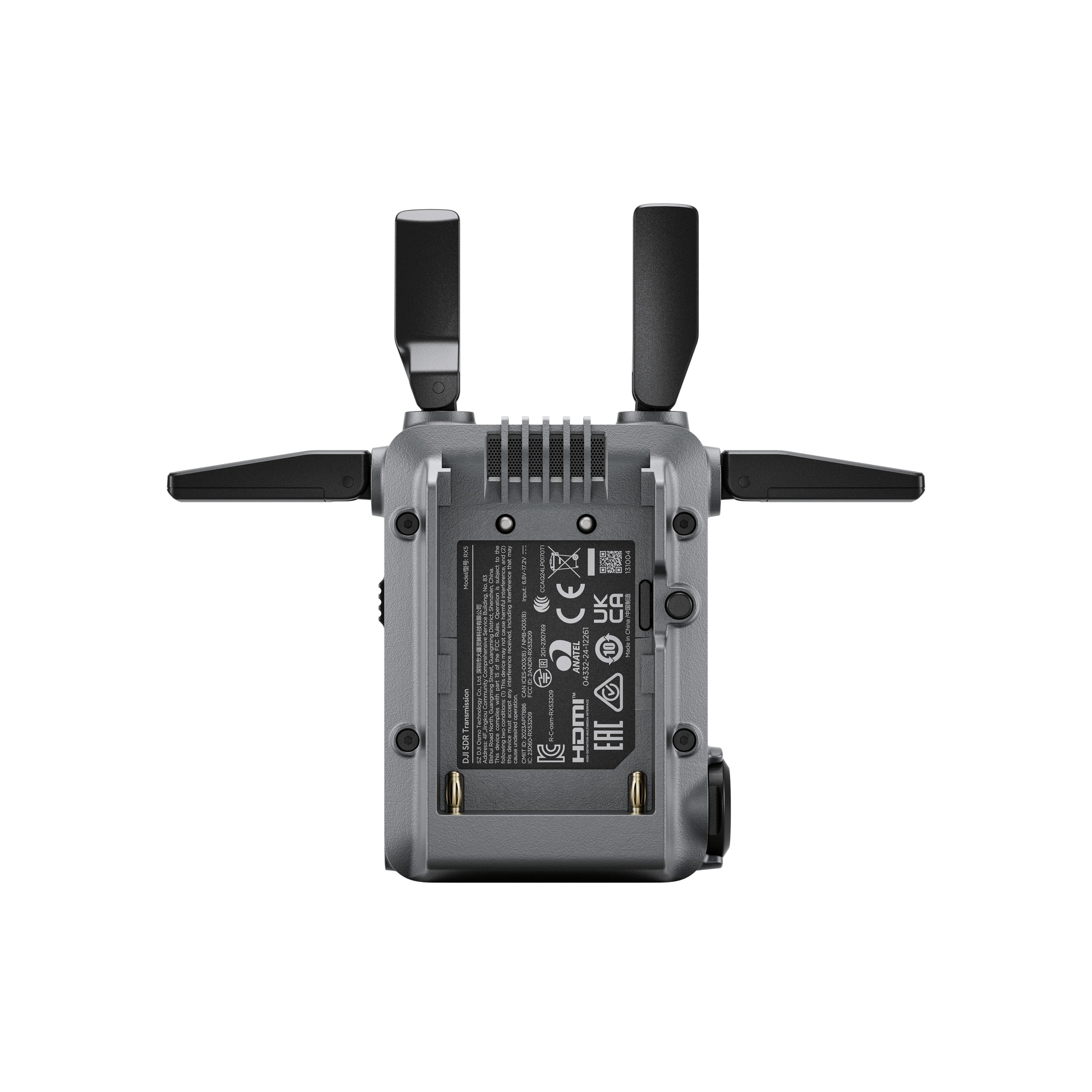

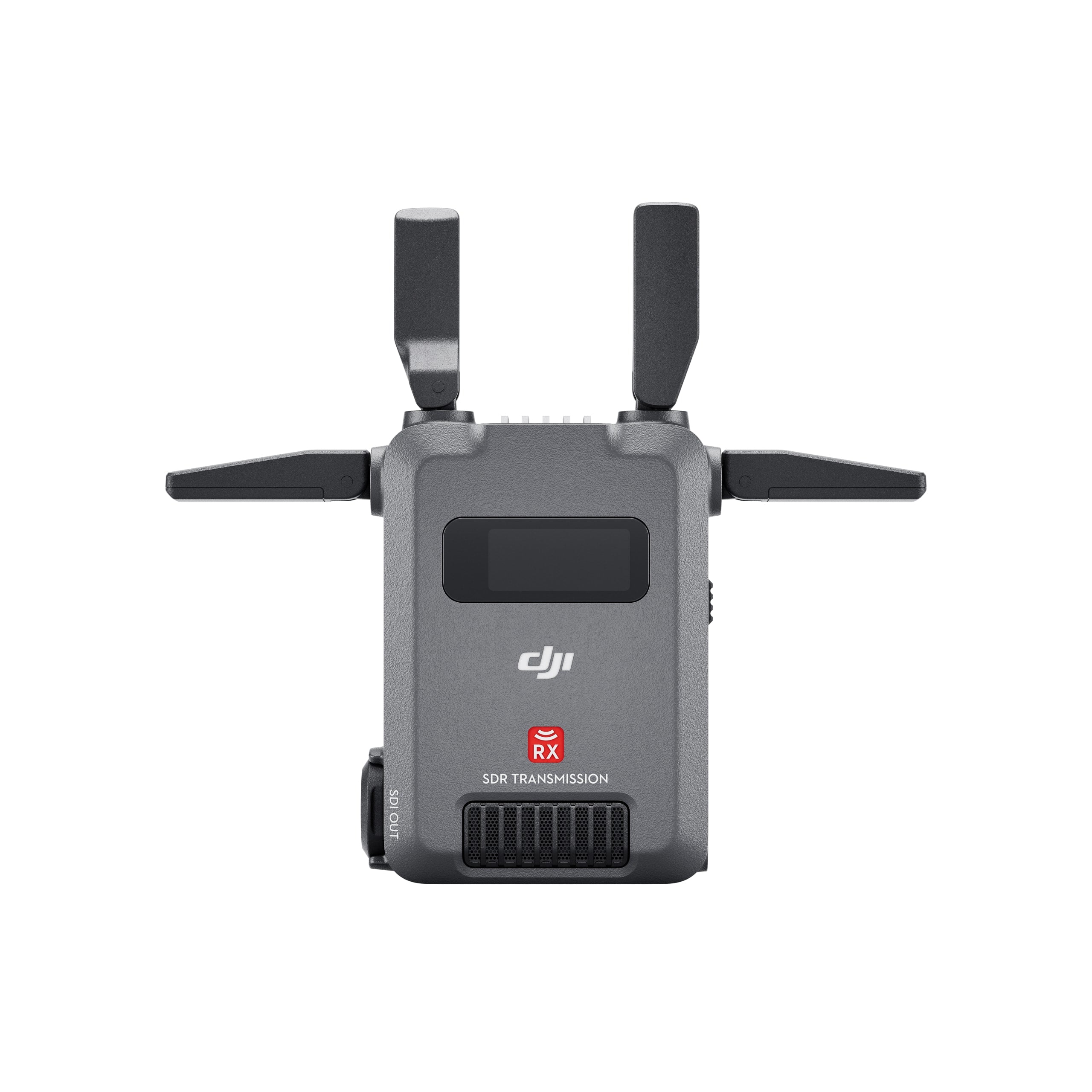

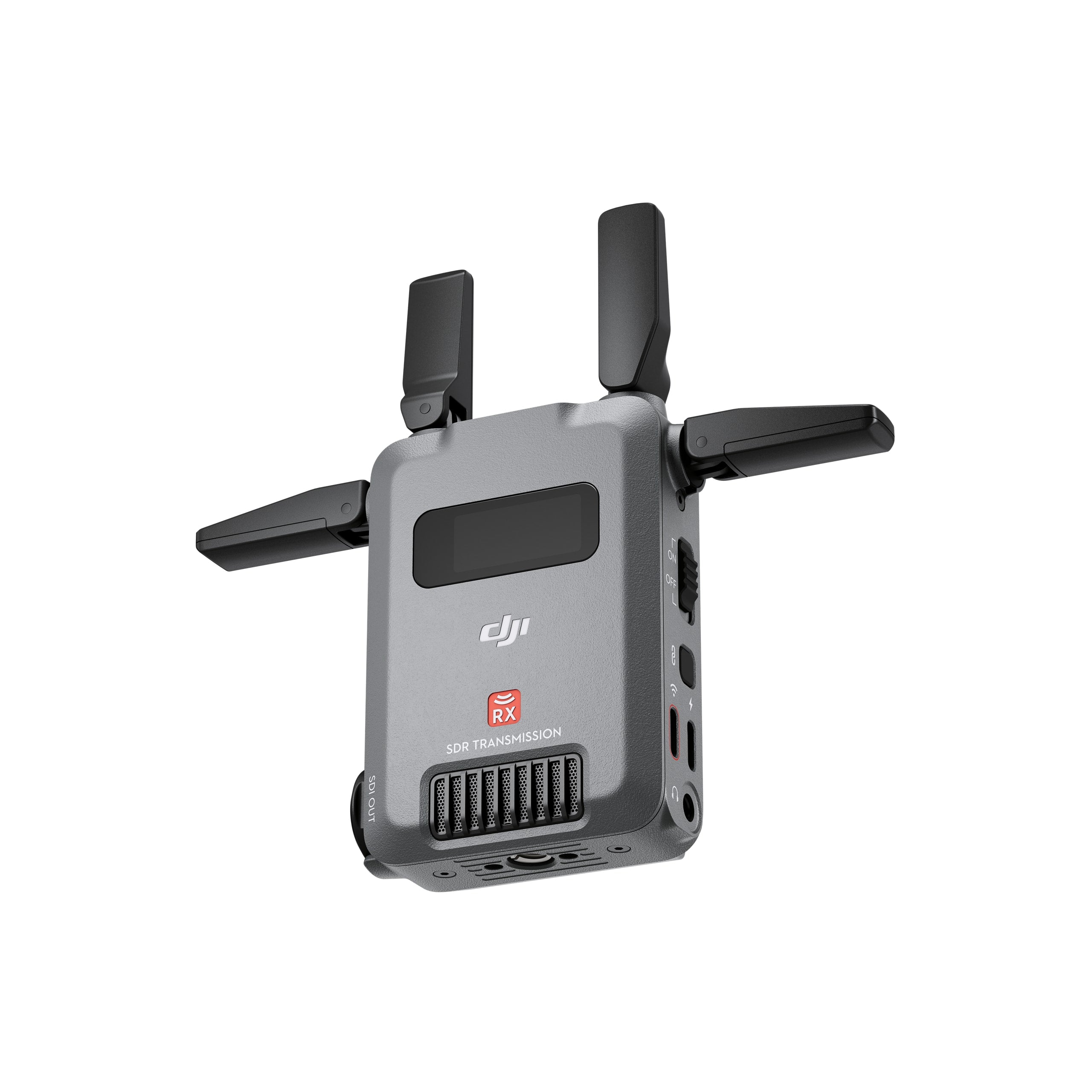

DJI SDR Transmission Receiver

    Description



    • SDR Transmission, Stable & Anti-Interference

      DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

    • Strong Penetration, Extended Transmission Distance

      DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1]suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

    • 20Mbps High Bitrate, 1080p FHD Image Quality

      DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

    • Innovative USB-C Monitoring Experience

      DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

    • Broadcast Mode, Unlimited Number of Receivers

      In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

    Specs


    Receiver

    • Weight

    • Approx. 145 g (including antennas)

    • Dimensions

    • 86.5×64×32 mm (L×W×H, excluding antennas)

    • Ports

    • SDI Output Port
      HDMI Output Port
      3.5mm Stereo Jack
      USB-C Firmware Update and Video Output Port
      USB-C Power Port

    • Operating Frequency

    • SDR Operating Frequency
      Non-DFS Frequency Band:
      2.4000-2.4835 GHz
      5.725-5.850 GHz

      5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.

    • Transmitter Power (EIRP)

    • SDR:
      2.4000-2.4835 GHz:
      < 30 dBm (FCC)
      < 20 dBm (SRRC/CE/MIC)

      5.725-5.850 GHz:
      < 30 dBm (FCC)
      < 14 dBm (CE)
      < 23 dBm (SRRC)

    • Max Bandwidth

    • 20 MHz

    • Max Bitrate

    • 20 Mbps

      Measured in Control mode, with Broadcast mode turned off.

    • Power Consumption

    • 8.3 W

      Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

    • Power Supply

    • USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
      USB-C Power Supply Type 2: 6.8-17.2 V DC
      NP-F Battery Power Supply Voltage: 6.8-8.4V

    • Output Video Format

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
      1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
      720p: 50/59.94/60fps

    • Output Audio Format

    • PCM

    • Video Transmission System

    • SDR

    • Video Transmission Latency

    • 80 ms (including camera and screen display latency)
      35 ms (excluding camera and screen display latency)

      Measured when shooting 1080p/60fps video with Broadcast mode turned off.

    • Video Coding Format

    • H.264

    • Max Transmission Distance

    • 3 km (FCC)
      2 km (CE/SRRC/MIC)

      Measured in Control mode, with Broadcast mode turned off.

    • Operating Temperature

    • -10° to 40° C (14° to 104° F)


    In the Box

    • DJI SDR Transmission Receiver (RX) × 1

    DJI SDR Transmission Receiver

      Product form

      SKU: CP-RN-00000401
      Barcode: 190021109049

      Out of stock

      $639.00
