Description

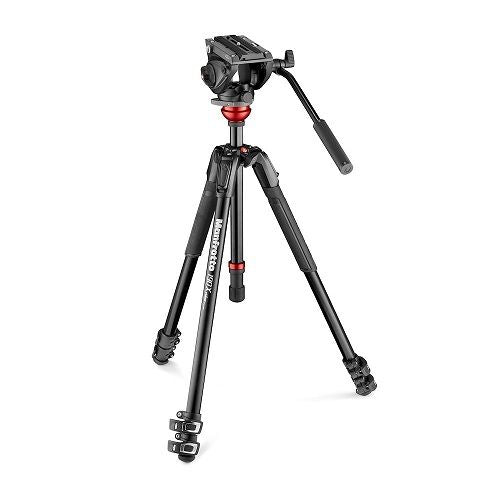

The new MVK500190XV is a video system composed by MVH500AH fluid video head and dedicated 190X Video aluminium tripod ensuring the utmost versatility and carrying convenience.
Product Description
500 video head flat base for greater versatility Single leg 3 section alu tripod with levelling column Easy link connectors for external accessories
The 500 head comes in the flat base version for greater versatility when it comes to using it in combination with other video accessories (such as slider or jib). It also features fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth. It comes with a side lock system allowing the camera and sliding plate to click quickly into the head from above instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above. The head has a pre-set counterbalance of 2.4kg at 55mm C.O.G. but can support up to 5kg of equipment. It has a 3/8 inch Easy Link connector to fit an external monitor or other accessories. The dedicated single leg 3 section aluminium 190X Video tripod features a levelling column for quick and easy set-up easily extendible adjustable legs and Quick Power Lock (QPL) levers that rapidly block or unblock each leg section. The tripod's casting also features an Easy Link connector equipped with anti-rotation for accessories. The system can support up to 8 kg.
Specifications
Weight: 3.2 kg Safety Payload Uni/Pdr 105:2021: 8 kg Counterbalance Weight: 2.4 kg Maximum Height: 173.3 cm Min Height: 50.3 cm Base Diameter: 60 mm Bubble Spirit Level (No.): 1 Certifications: None Closed Length: 72.2 cm Colour: Black Top Attachment: 1/4" screw 3/8" screw Ball Flat: Flat Safety Payload Weight: 5 kg Powered By (Batteries): 0 Easy Link: Yes Front Tilt: -70¡ / +90¡ Head Type: Video/Fluid Head Leg Type: Single Leg Angles: 25¡ 46¡ 66¡ 88¡ Leg Lock Type: Flip Lock Leg Sections: 3 Material: Aluminium Maximum Height (With Center Column Down): 149.3 cm Maximum Working Temperature: 60 ¡C Minimum Working Temperature: -20 ¡C Pan Bar Included: Yes Pan Drag: fluid cartridge with fixed drag Panoramic Rotation: 360 ¡ Plate Type: 500PLONG Quick Release: Yes Tilt Drag: fluid cartridge with fixed drag Upper Disc Diameter: 60 mm Accessory Compatibility: 500HLV
