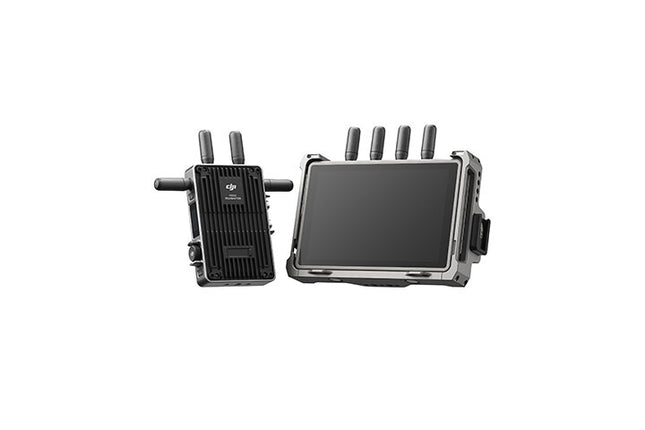

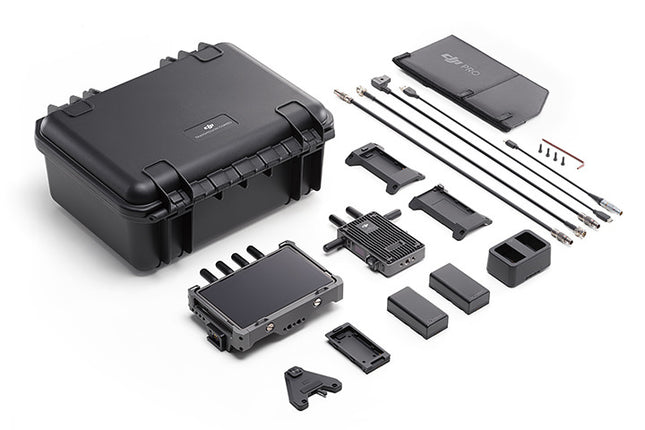

DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder.   VISION BEYOND BOUNDARIES DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.     TRANSMISSION PERFORMANCE   LONG-DISTANCE HD LIVE FEED DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 50Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.   END-TO-END ULTRA-LOW LATENCY The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.   SEAMLESS AUTO FREQUENCY HOPPING O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel. With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices. By mounting high-gain antennas, [2] transmission capability is further boosted.   ONE TRANSMITTER WITH MULTIPLE RECEIVERS The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely. For crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can be enabled on top of Control mode to allow an unlimited number of receivers (transmission performance differs from Control mode). This brings shooting efficiency and awareness to an entirely new level. In dynamic, multi-team environments such as reality television sets, DJI’s unique transmission protocol can make better use of wireless channels. With DFS bands and seamless automatic frequency hopping technology, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more monitors simultaneously. This results in a smooth, coordinated experience that's difficult to achieve with traditional transmission setups.   ENCRYPTED TRANSMISSION DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI’s self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.     MONITORING EXPERIENCE   INTEGRATED DESIGN Compared with conventional solutions, DJI Transmission integrates a high-bright monitor with a built-in receiver, providing optimum portability and efficient setup to help you get started fast in any setting. The remote monitor comes with a built-in image processing chip that is the same as the one used on Ronin 4D. This allows it to offer many features in addition to monitoring for integrated and efficient receiving, monitoring, control, and recording.   WIDE-GAMUT TOUCHSCREEN The High-Bright Remote Monitor is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits. It comes standard with a tempered glass screen protector and professional monitor hood to deliver rich, true-to-life colors, even in strong lighting conditions. With a 1920×1200 resolution, the screen displays a non-intrusive interface (OSD), with visible details like shooting parameters to ensure easily accessible information and seamless monitoring.   SUPPORTIVE TOOLS The remote monitor comes with supportive tools like safe zone, frame guide, zebra stripes, false color, peaking, and waveform for precise composition, exposure, and focusing.   INDEPENDENT RECORDING AND PLAYBACK The remote monitor also features a microSD card slot and allows for recording and playback of a 1080p/60fps H.264 live feed, as well as simultaneous access to video timecodes, making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.     EXPANSIVE CONTROL OPTIONS   BUILT-IN MOTION CONTROLLER The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.   COMPATIBLE WITH RONIN 4D HAND GRIPS The High-Bright Remote Monitor comes with an expansion-protective frame. When using with Ronin 4D Hand Grips, [2] the joystick can control the Ronin 2 or RS 3 Pro gimbal, and the focus wheel can control focusing and the adjustment of camera parameters like aperture, shutter, and ISO, while the record button controls start/stop of recording, [3] making the RS 3 Pro user experience similar to that of Ronin 4D.   COMPATIBLE WITH DJI MASTER WHEELS AND DJI FORCE PRO When used with the DJI Master Wheels or DJI Force Pro, [4] the remote monitor allows users to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, no longer utilizing the wireless signals from DJI Master Wheels or DJI Force Pro. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.   MIRROR CONTROL MODE When RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, [5] you can remotely control the menu of Sony mirrorless cameras from anywhere on set.       PORTS AND POWER SUPPLY   4D VIDEO TRANSMITTER PORT 3G-SDI Loop Out PortSupports output of 1080p/60fps videos. 3G-SDI Input PortSupports input of 1080p/60fps videos. HDMI 1.4 Type-A Input PortSupports input of 1080p/60fps videos.   HIGH-BRIGHT REMOTE MONITOR PORTS 3.5mm Stereo JackMonitors audio in real time. microSD Card SlotFor internal recording and playback on the monitor. HDMI 2.0 Type-A Input PortSupports input of 4K/60fps videos. USB Type-C portFor firmware updates. Power Input Port 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro). [4][6] HDMI 1.4 Type-A Output Port Supports output of 1080p/60fps videos. [6] 3G-SDI Output Port Supports output of 1080p/60fps videos. [6]   DIRECT POWER SUPPLY BY GIMBAL DJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.   OTHER POWER SUPPLY SOLUTIONS The Video Transmitter and High-Bright Remote Monitor are all compatible with the DJI WB37 Battery. They can also use the included NP-F Battery Adapter for universal batteries. Third-party V-mount battery adapters can also be used to provide power to the video transmitter and remote monitor using V-mount batteries. Pogo pins can be found on the front and rear of the video transmitter to mount the specialized V-mount battery adapter to a camera for integrated power supply of the camera and the video transmitter. For a continuous power supply, a P-TAP to DC-in power cable can be used to connect to an external power source.   FOOTNOTES: 1. Measured in Control mode with FCC compliance in a standard, interference-free environment.2. Sold separately.3. Requires a camera control cable. Check the camera compatibility list for detailed information on supported camera models.4. Items sold separately.5. Check the official spec sheet for compatible camera models.6. Using these functions requires additional accessories that are sold separately.   Product Specifications PRODUCT SPECIFICATIONS SPECIFICATIONS WeightVideo Transmitter Weight: Approx 350 g / 0.77 lbs (excluding antennas)High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas) DimensionsVideo Transmitter: 127×87×26 mm (L×W×H, excluding antennas)High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas) Operating FrequencyNon DFS Frequency Band:2.400-2.484 GHz5.150-5.250 GHz5.725-5.850 GHzDFS Frequency Band:5.250-5.350 GHz5.470-5.600 GHz5.650-5.725 GHz Transmitter Power (EIRP)2.400-2.484 GHz:<33 dBm (FCC)<20 dBm (SRRC/CE/MIC)5.150-5.250 GHz:<23 dBm (FCC/SRRC/MIC)5.250-5.350 GHz:<30 dBm (FCC)<23 dBm (SRRC/MIC)5.470-5.600 GHz, 5.650-5.725 GHz:<30 dBm (FCC)<23 dBm (CE/MIC)5.725-5.850 GHz:<33 dBm (FCC/SRRC)<14 dBm (CE) Max Bandwidth40 MHz Max Bitrate50 Mbps Power Consumption11 W Power Supply Voltage6 to 18 V Output VoltagePower Output Port: 6 to 18 V Operating TimeVideo Transmitter: 3 hours 40 minutes[1]High-Bright Remote Monitor: 2 hours[1] Input Video Format3G SDI: YCbCr 4:2:2 10-bitHDMI RGB 4:4:41080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/59.94/60fps720p: 50/59.94/60fps Output Video Format3G SDI: YCbCr 4:2:2 10-bit1080p: 23.98/24/25/29.97/30/50/59.94/60fps1080i: 50/59.94/60fps720p: 50/59.94/60fps Input Audio FormatSDI embedded, HDMI embedded Output Audio FormatPCM Video Transmission SystemO3 Pro Max Video Bitrate50 Mbps Video Transmission Latency68 ms[2]100 ms[3] Video Coding FormatH.264 Max Transmission Distance6 km (FCC)[4]4 km (CE/SRRC/MIC)[4] Max Bandwidth40 MHz Operating Temperature-10° to 45° C (14° to 113° F) Mirror Control Mode Supported Camera ModelsZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control). Notes 1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.2. Measured when shooting 1080p/60fps video.3. Measured when shooting 1080p/24fps video.4. In open environments free of obstructions or interference.     In The Box IN THE BOX DJI Video Transmitter × 1DJI High-Bright Remote Monitor × 1Remote Monitor Hood × 1WB37 Battery Adapter (TX) × 1WB37 Intelligent Battery × 2WB37 Battery Charging Hub (USB-C) × 1NP-F Battery Adapter (TX) × 1NP-F Battery Adapter (RX) × 1USB-C to LEMO Power Cable × 1RS Gimbal Mounting Plate × 1USB-C Cable × 1SDI Cable × 1DJI DC Power Cable × 1DC to P-Tap Power Cable × 1Installation Toolkit × 1Protector Case × 1Manuals × 1

Read more less

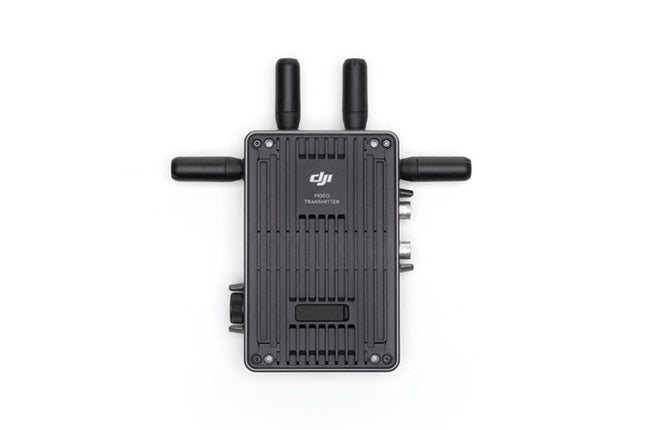

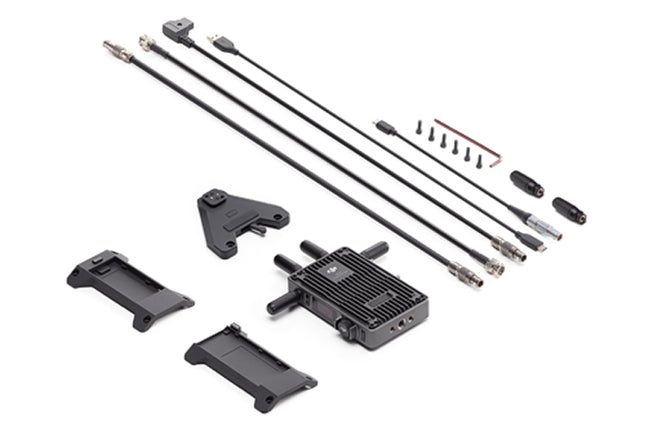

Uses O3 Pro video transmission technology for a 20,000-foot transmission range of 1080p/60fps FHD feeds. Supports additional DFS frequency band. Availability: Pre-Order ETA 26 September 2022 Product Description Note: The DJI Video Transmitter must be used with the DJI High-Bright Remote Monitor.  FEATURES With the latest O3 Pro video transmission technology, the DJI Video Transmitter offers a stunning 20,000-foot [2] ground transmission range. In addition to 2.4 GHz and 5.8 GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.   Tips 1. Requires the DJI High-Bright Remote Monitor for use.2. Measured in Control mode with FCC compliance in a standard, interference-free environment. Compatibility DJI High-Bright Remote MonitorDJI Ronin 2 DJI RS 3 Pro   Product Specifications Max Transmission Distance: Approx. 20,000 ft (approx. 6 km for FCC, approx. 4 km for CE/SRRC/MIC)Max Resolution and Frame Rate: 1920×1080@60fpsOperating Frequency:Non-DFS Frequency Band2.400-2.484 GHz5.150-5.250 GHz5.725-5.850 GHzDFS Frequency Band5.250-5.350 GHz5.470-5.600 GHz5.650-5.725 GHzMax Bandwidth: 40 MHz   In The Box Video Transmitter × 1Ronin Video Transmission Antenna × 2WB37 Battery Adapter (TX) × 1NP-F Battery Adapter (TX) × 1USB-C Cable ×1 SDI Cable × 1DJI DC Power Cable × 1DC to P-TAP Power Cable × 1USB-C to LEMO Power Cable × 1RS Gimbal Mounting Plate × 1Installation Toolkit × 1

Read more less

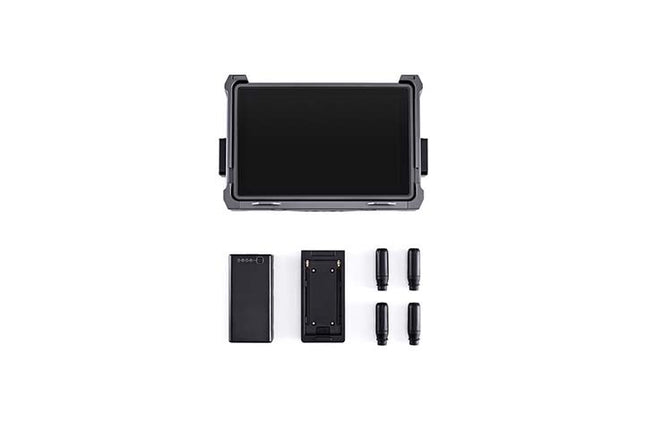

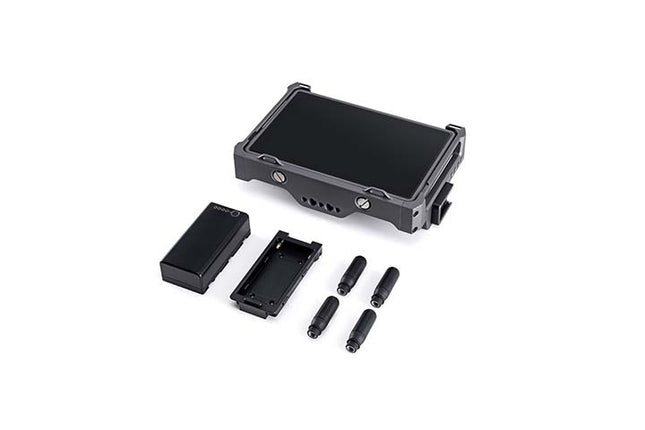

The DJI High-Bright Remote Monitor is integrated with a wide colour gamut display and image transmission receiver and can be used for monitoring, recording, and playback.   With a 7-inch wide colour gamut, 1,500-nit high-bright touchscreen, and an integrated O3 Pro image transmission receiver, the DJI High-Bright Remote Monitor can be used for monitoring, recording, and playback. It also works seamlessly with the Hand Grips, DJI Master Wheels, DJI Force Mobile, and the new DJI Three-Channel Follow Focus to enable remote control of focus, gimbal movements, and camera functions. (Note: Must be used with the DJI Ronin 4D Video Transmitter). The DJI High-Bright Remote Monitor is integrated with a wide color gamut display and image transmission receiver and can be used for monitoring, recording, and playback. When used with the DJI Remote Monitor Expansion Plate, outputs of HDMI and SDI signals can be achieved.   Highlights 1,500-nit high-bright monitor7-inch wide color gamut touchscreen displayOutput of HDMI and SDI signalsMirror Control ModeIndependent recording and playbackRemote parameter setting, remote controlMotion controlCustomizable LUT and independent LUT for monitoringFocus assistance and exposure assistanceIndependent monitoring of HDMI input   Compatibility DJI Ronin 4D Video Transmitter   In The Box High-Bright Remote Monitor × 1Ronin Video Transmission Antenna × 4Remote Monitor Tempered Glass Screen Protector × 1Remote Monitor Hood × 1Remote Monitor Cage × 1NP-F Battery Adapter × 1WB37 Intelligent Battery × 1WB37 Battery Charging Hub (USB-C) × 11.5mm Ball-End Hex Key × 1

Read more less

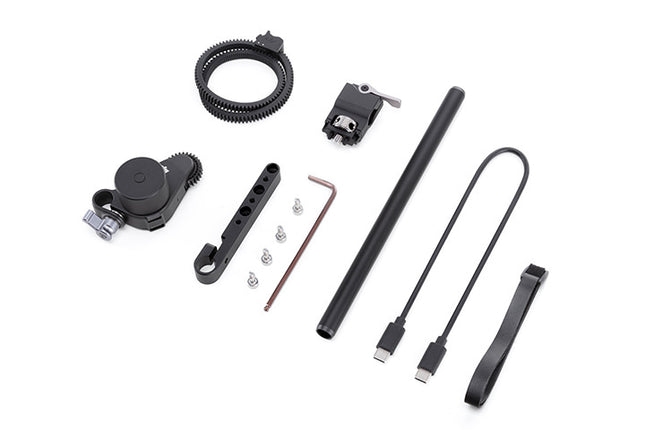

The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use. Compatibility DJI RS 3 Pro DJI RS 3DJI RS 2DJI RSC 2 PRODUCT SPECIFICATIONS Structure: Weight: 108 g Dimensions: 80×50×36 mm (L×W×H) Rod: 12 mm Specifications: Max Torque: 1.0 N·m (8 V) Max Speed: 180 rpm (8 V) Electrical Properties: Free Current: 50 mA (5 V) Stall Current: 2.8 A (8 V) Operating Voltage: 6 to 17.6 V Noise: 45 dB Gear: Number of Teeth: 30 Module: 0.8 Operating Temperature: -20° to 45° C (-4° to 113° F) IN THE BOX Focus Motor (2022) × 1 Focus Motor Rod Mount Kit Combo × 1 Focus Gear Strip × 1 Multi-Camera Control Cable (USB-C, 30 cm) x 1 M4 Screw (10 mm) × 4 Allen Wrench (3 mm) × 1 Lens-Fastening Strap × 1
