DJI RS Focus Motor (2022)

    Description

    The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.


    Compatibility

    DJI RS 3 Pro
    DJI RS 3
    DJI RS 2
    DJI RSC 2

    PRODUCT SPECIFICATIONS

    Structure: Weight: 108 g

    Dimensions: 80×50×36 mm (L×W×H)

    Rod: 12 mm

    Specifications:

    Max Torque: 1.0 N·m (8 V) Max Speed: 180 rpm (8 V)

    Electrical Properties:

    Free Current: 50 mA (5 V) Stall Current: 2.8 A (8 V)

    Operating Voltage: 6 to 17.6 V

    Noise: 45 dB

    Gear: Number of Teeth: 30 Module: 0.8

    Operating Temperature: -20° to 45° C (-4° to 113° F)

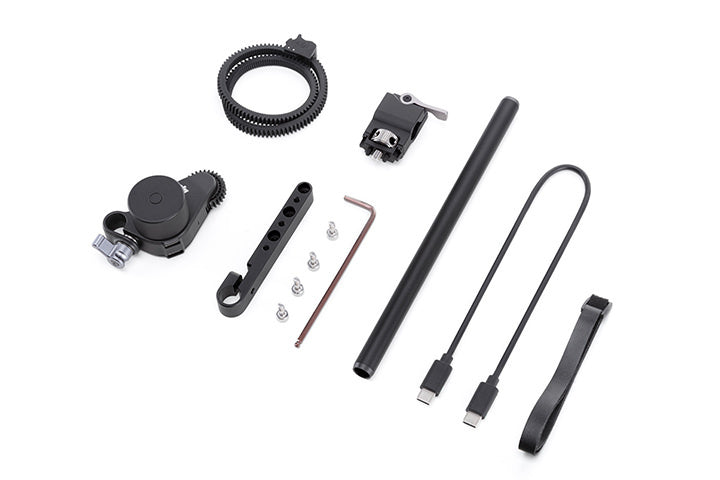

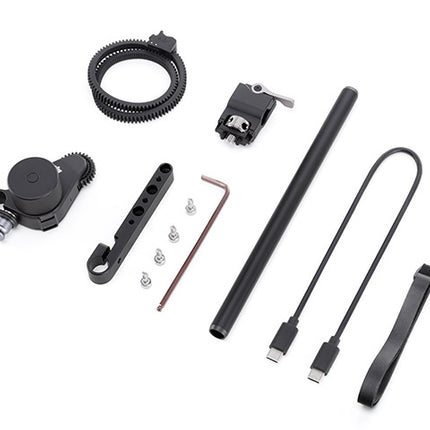

    IN THE BOX

    Focus Motor (2022) × 1

    Focus Motor Rod Mount Kit Combo × 1

    Focus Gear Strip × 1

    Multi-Camera Control Cable (USB-C, 30 cm) x 1

    M4 Screw (10 mm) × 4

    Allen Wrench (3 mm) × 1

    Lens-Fastening Strap × 1

    Product form

    The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%.... Read more

    Free pickup in our shop(s)

    SKU: CP-RN-00000227
    Barcode: 190021060685

    Out of stock

    $199.00

      Description

      The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.


      Compatibility

      DJI RS 3 Pro
      DJI RS 3
      DJI RS 2
      DJI RSC 2

      PRODUCT SPECIFICATIONS

      Structure: Weight: 108 g

      Dimensions: 80×50×36 mm (L×W×H)

      Rod: 12 mm

      Specifications:

      Max Torque: 1.0 N·m (8 V) Max Speed: 180 rpm (8 V)

      Electrical Properties:

      Free Current: 50 mA (5 V) Stall Current: 2.8 A (8 V)

      Operating Voltage: 6 to 17.6 V

      Noise: 45 dB

      Gear: Number of Teeth: 30 Module: 0.8

      Operating Temperature: -20° to 45° C (-4° to 113° F)

      IN THE BOX

      Focus Motor (2022) × 1

      Focus Motor Rod Mount Kit Combo × 1

      Focus Gear Strip × 1

      Multi-Camera Control Cable (USB-C, 30 cm) x 1

      M4 Screw (10 mm) × 4

      Allen Wrench (3 mm) × 1

      Lens-Fastening Strap × 1
