Description

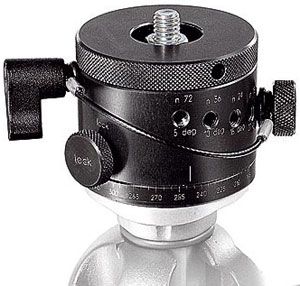

The 300N panoramic rotation unit allows the photographer to take sequential constant-angle shots around a single axis an essential part of achieving accurate and easy-to-stitch panoramic compositions.
Product Description
Allow to take sequential constant-angle shots around one axis Ample choice of rotation angle Click-stop selector screw included and attached to safety cable Secondary locking screw to stop unwanted rotation of the head Also used as a turntable base for object panoramas
The set positions of the 300N give ample choice of rotation angle and so of number of photos needed to complete a 360¡ pan and cover the most common requests of panoramic photographers depending on the camera/lens equipment used. To make angle selection easier a inch click-stop inch selector screw is included and attached to a safety cable to prevent it from being separated from the head and getting lost. The 300N also comes complete with a secondary locking screw which stops unwanted or accidental rotation of the head when heavy or off-centre equipment makes it less balanced or when the head is used for non-horizontal rotation. The 300N can also be used as a turntable base for object panoramas or as a means of reading the angle of rotation of camera pan movements in a range of photography. A camera can be mounted on the panoramic unit by adding one of a range of quick release sliding or fixed plates or a conventional geared ball or 3-way head.
Specifications
Weight: 0.609 kg Base Diameter: 64 mm Material: Aluminium Safety Payload Weight: 14 kg Plate Type: fixed - with 3/8 inch screw Colour: Black Top Attachment: 3/8 inch screw Easy Link: No Head Type: Other Independent Pan Lock: yes Maximum Working Temperature: 70 ¡C Minimum Working Temperature: -30 ¡C Pan Bar Included: No Pan Drag: NONE Panoramic Rotation: 360 ¡ Quick Release: No Tilt Drag: NONE Working Height: 6.3 cm
