DJI ZENMUSE L1 (LIDAR)

Description

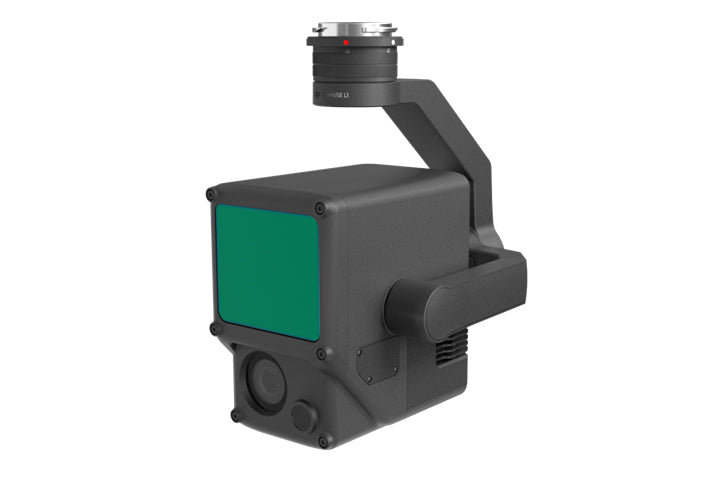

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal.

Product Description

Due to be released Q1 2021



The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.



Key Features

Integrates a Lidar module, an RGB camera, and a high-accuracy IMU

Point Rate: 240,000pts/s

IP44 Ingress Protection Level

High Accuracy: Vertical: 5 cm / Horizontal: 10 cm

Supports 3 Returns

Point Cloud LiveView

High Efficiency 2 km2 covered in a single flight

Detection Range: 450 m (80% reflectivity, 0 klx)



Visualise Data As You Fly

Livox Lidar Module

•Frame Lidar with up to 100% effective point cloud results
•Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
•Point Rate: 240,000 pts/s
•Supports 3 returns
•Line Scan Mode and Non-repetitive Petal Scan Mode



Product Specifications



PRODUCT SPECIFICATIONS

GENERAL

Dimensions: 152×110×169 mm
Weight Approx: 900 g
Power: 30 W
IP Rating: IP44
Supported Aircraft: Matrice 300 RTK
Operating Temperature Range: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: -20° to 60° C (-4° to 140° F)


SYSTEM PERFORMANCE

Detection Range: 450 m @ 80% reflectivity, 0 klx <br>;190 m @ 10% reflectivity, 100 klx
Point Rate Single return: 240,000 pts/s <br>;Multiple return: 480,000 pts/s
System Accuracy Horizontal: 10 cm @ 50 m <br>;Vertical: 5 cm @ 50 m
Real-time Point Cloud Coloring Modes: True color; coloring by reflectivity; coloring by elevation


LIDAR

Ranging Accuracy: 3 cm @ 100 m
Maximum Returns Supported: 3
Scan Modes: Repetitive line scan mode, non-repetitive petal scan mode
FOV: Repetitive line scan: 70.4°×4.5°<br>; Non-repetitive petal scan: 70.4°×77.2°
Laser Safety: Class 1


INERTIAL NAVIGATION SYSTEM

IMU Update Frequency: 200 Hz
Accelerometer Range: ±8 g
Angular Velocity Meter Range: ±2000 dps
Yaw Accuracy: Real-time: 0.18°, Post-processing: 0.08°
Pitch / Roll Accuracy: Real-time: 0.03°, Post-processing: 0.025°


AUXILIARY POSITIONING VISION SENSOR

Resolution: 1280×960
FOV: 95°


RGB MAPPING CAMERA

Sensor Size: 1 inch
Effective Pixels: 20 MP
Photo Size: 4864×3648 (4:3); 5472×3648 (3:2)
Focal Length: 8.8 mm / 24 mm (Equivalent)
Shutter Speed: Mechanical Shutter Speed: 1/2000 - 8 s / Electronic Shutter Speed: 1/8000 - 8 s
ISO: Video: 100 – 3200 (Auto), 100 – 6400 (Manual)
Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)"
Aperture Range: f/2.8 - f/11


GIMBAL

Stabilized System: 3-axis (tilt, roll, pan)
Angular Vibration Range: 0.01°
Mount: Detachable DJI SKYPORT
Mechanical Range: Tilt: -120° to +30°; Pan: ±320°
Operation Modes: Follow/Free/Re-center


DATA STORAGE

Raw Data Storage: Photo/IMU/Point cloud data storage
Point Cloud Data Storage: Real-time modeling data storage
Supported microSD Cards: microSD: Class 10 or UHS-1 rating or above; Max capacity: 256 GB


POST-PROCESSING SOFTWARE

Supported Software: DJI Terra
Data Format: DJI Terra supports exporting standard format point cloud models:
Point cloud format: PNTS/LAS/PLY/PCD/S3MB format
Reconstruction model format: B3DM/OSGB/PLY/OBJ/S3MB format






Product form

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a... Read more

Free pickup in our shop(s)

SKU: L1

Contact Us For Pricing

Description

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal.

Product Description

Due to be released Q1 2021



The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.



Key Features

Integrates a Lidar module, an RGB camera, and a high-accuracy IMU

Point Rate: 240,000pts/s

IP44 Ingress Protection Level

High Accuracy: Vertical: 5 cm / Horizontal: 10 cm

Supports 3 Returns

Point Cloud LiveView

High Efficiency 2 km2 covered in a single flight

Detection Range: 450 m (80% reflectivity, 0 klx)



Visualise Data As You Fly

Livox Lidar Module

•Frame Lidar with up to 100% effective point cloud results
•Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
•Point Rate: 240,000 pts/s
•Supports 3 returns
•Line Scan Mode and Non-repetitive Petal Scan Mode



Product Specifications



PRODUCT SPECIFICATIONS

GENERAL

Dimensions: 152×110×169 mm
Weight Approx: 900 g
Power: 30 W
IP Rating: IP44
Supported Aircraft: Matrice 300 RTK
Operating Temperature Range: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: -20° to 60° C (-4° to 140° F)


SYSTEM PERFORMANCE

Detection Range: 450 m @ 80% reflectivity, 0 klx <br>;190 m @ 10% reflectivity, 100 klx
Point Rate Single return: 240,000 pts/s <br>;Multiple return: 480,000 pts/s
System Accuracy Horizontal: 10 cm @ 50 m <br>;Vertical: 5 cm @ 50 m
Real-time Point Cloud Coloring Modes: True color; coloring by reflectivity; coloring by elevation


LIDAR

Ranging Accuracy: 3 cm @ 100 m
Maximum Returns Supported: 3
Scan Modes: Repetitive line scan mode, non-repetitive petal scan mode
FOV: Repetitive line scan: 70.4°×4.5°<br>; Non-repetitive petal scan: 70.4°×77.2°
Laser Safety: Class 1


INERTIAL NAVIGATION SYSTEM

IMU Update Frequency: 200 Hz
Accelerometer Range: ±8 g
Angular Velocity Meter Range: ±2000 dps
Yaw Accuracy: Real-time: 0.18°, Post-processing: 0.08°
Pitch / Roll Accuracy: Real-time: 0.03°, Post-processing: 0.025°


AUXILIARY POSITIONING VISION SENSOR

Resolution: 1280×960
FOV: 95°


RGB MAPPING CAMERA

Sensor Size: 1 inch
Effective Pixels: 20 MP
Photo Size: 4864×3648 (4:3); 5472×3648 (3:2)
Focal Length: 8.8 mm / 24 mm (Equivalent)
Shutter Speed: Mechanical Shutter Speed: 1/2000 - 8 s / Electronic Shutter Speed: 1/8000 - 8 s
ISO: Video: 100 – 3200 (Auto), 100 – 6400 (Manual)
Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)"
Aperture Range: f/2.8 - f/11


GIMBAL

Stabilized System: 3-axis (tilt, roll, pan)
Angular Vibration Range: 0.01°
Mount: Detachable DJI SKYPORT
Mechanical Range: Tilt: -120° to +30°; Pan: ±320°
Operation Modes: Follow/Free/Re-center


DATA STORAGE

Raw Data Storage: Photo/IMU/Point cloud data storage
Point Cloud Data Storage: Real-time modeling data storage
Supported microSD Cards: microSD: Class 10 or UHS-1 rating or above; Max capacity: 256 GB


POST-PROCESSING SOFTWARE

Supported Software: DJI Terra
Data Format: DJI Terra supports exporting standard format point cloud models:
Point cloud format: PNTS/LAS/PLY/PCD/S3MB format
Reconstruction model format: B3DM/OSGB/PLY/OBJ/S3MB format
