- The above charging time data was measured in a controlled test environment and is for reference only.
Fast and Flexible Recharging
DJI Power 1000 V2 can be recharged via grid power, solar power, and car power. Whether indoors or on the go, you can choose the best charging method, ensuring a reliable power supply and greater convenience.
Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, it takes only 37 minutes to go from zero to 80% [7] and 56 minutes to full. Even if you start charging it right before heading out, it gives you the confidence to set off whenever you need.
Solar Power
Economical and environmentally friendly, DJI Power 1000 V2 can be recharged via the DJI Power Solar Panel Adapter Module (MPPT) [12], or the DJI Power 1.8kW Solar/Car Super Fast Charger [4] with up to 1800W [13]solar input, taking only 40 minutes to charge 1024 Wh. [14]
Car Power
Easily supercharge any road trip with the DJI Power 1kW Super Fast Car Charger [11] or the 1.8kW Solar/Car Super Fast Charger. [11]These charges utilize the excess electricity from your car's alternator to quickly recharge the DJI Power 1000 V2, suitable for regular cars and RVs. [24] With expansion batteries, it takes just 78 minutes [15] to charge the power station from zero to full.
Upgraded Safety Design [5]
Safety is a top priority for DJI Power 1000 V2, with careful attention paid to each detail ranging from its body structure and cell chemistry to the system software.
Rich Built-in Ports
Expanded Applications
Extensive Accessories

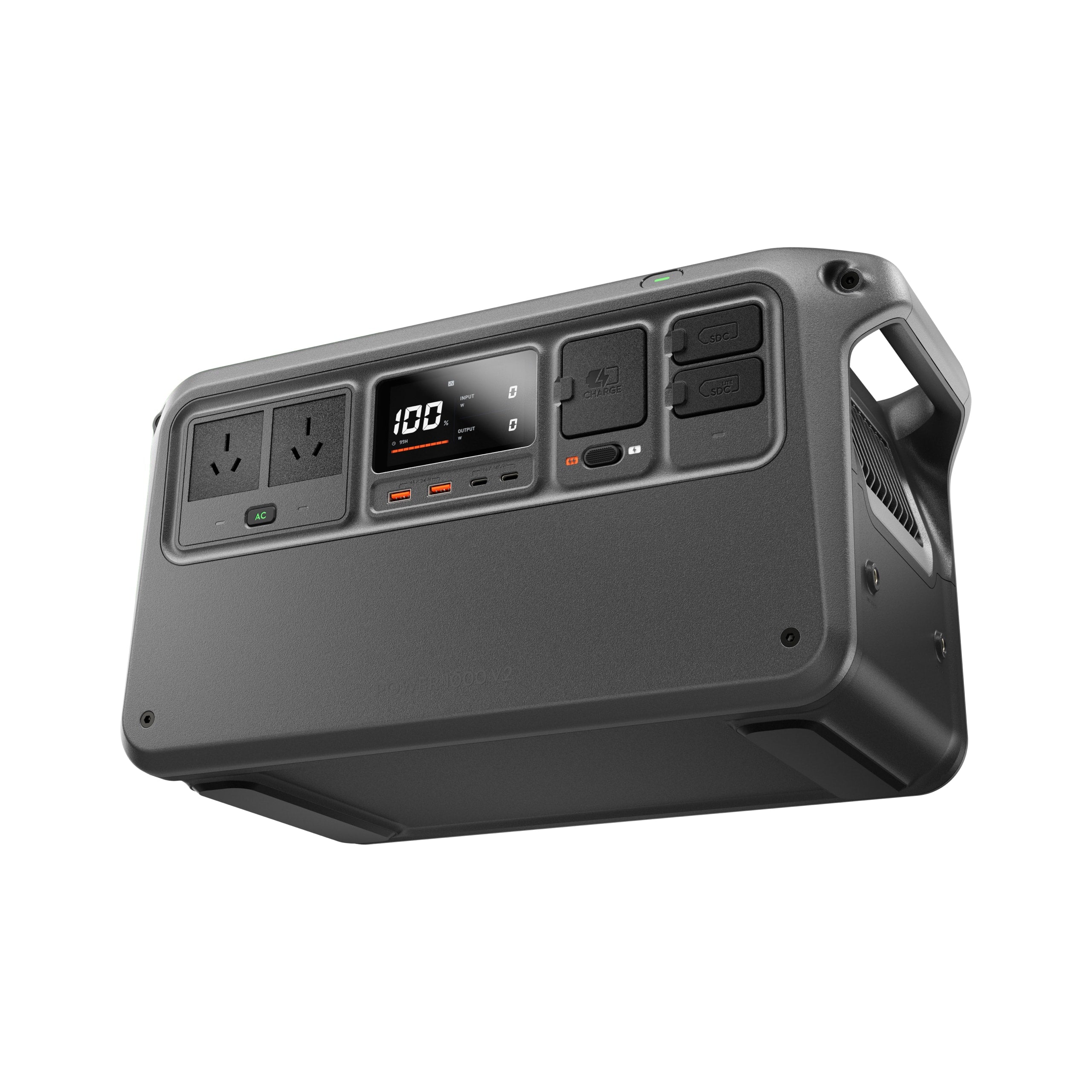

DJI Power 1000 V2 features dual USB-A ports, four AC output ports, one SDC port, one SDC Lite port, and two 1/4" threaded ports, allowing connection to various DJI Power series accessories, different models of solar panels, power supply cables, and adapter cables.
General
-
Model
-
DYM1000V2L
DYM1000V2H
-
Net Weight
-
Approx. 14.2 kg
-
Dimensions
-
448×225×230 mm (L×W×H)
-
Number of Ports
-
AC Output × 4 (For regions using CN, US, and JP standards)*
AC Output × 2 (For other countries and regions)*
USB-C × 2
USB-A × 2
SDC × 1
SDC Lite × 1
AC Input × 1
* Models for regions using CN, US, and JP standards feature four AC output ports. Due to differing port sizes, models for other regions include only two.
-
Max Operating Altitude
-
5000 m
Output Specifications
-
AC Output
-
DYM1000V2L: AC 100-120 V, 50/60 Hz, max current: 20 A
DYM1000V2H: AC 220-240 V, 50/60 Hz, max current: 10.9 A
AC output data varies by country and region.
-
USB-C Output
-
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 5 A
28 V, 5 A (EPR)
Max output power per channel: 140 W*
* The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
Input Specifications
-
AC Input
-
DYM1000V2L:
AC 100-120 V, 50/60 Hz, max current: 13 A
AC 100-120 V, 50/60 Hz, max current: 13 A (Bypass mode)
DYM1000V2H:
AC 220-240 V, 50/60 Hz, max current: 6.5 A
AC 220-240 V, 50/60 Hz, max current: 10 A (Bypass mode)
Wi-Fi and Bluetooth
In the Box
-
-

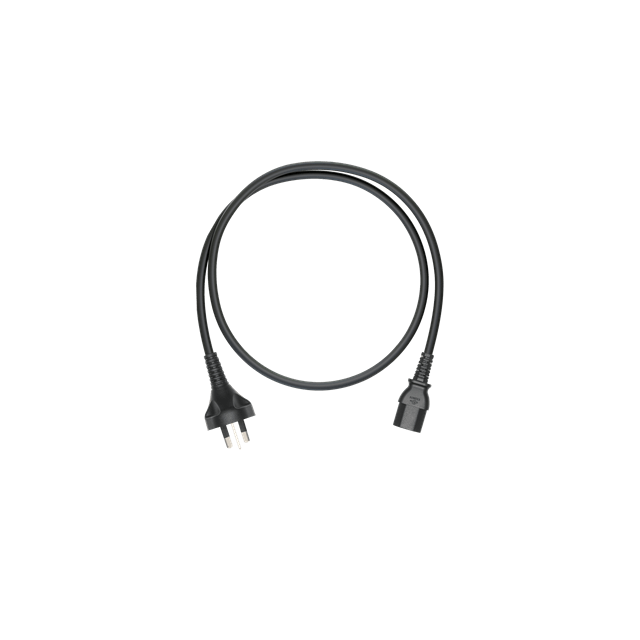

DJI Power AC Power Cable
× 1
