Description

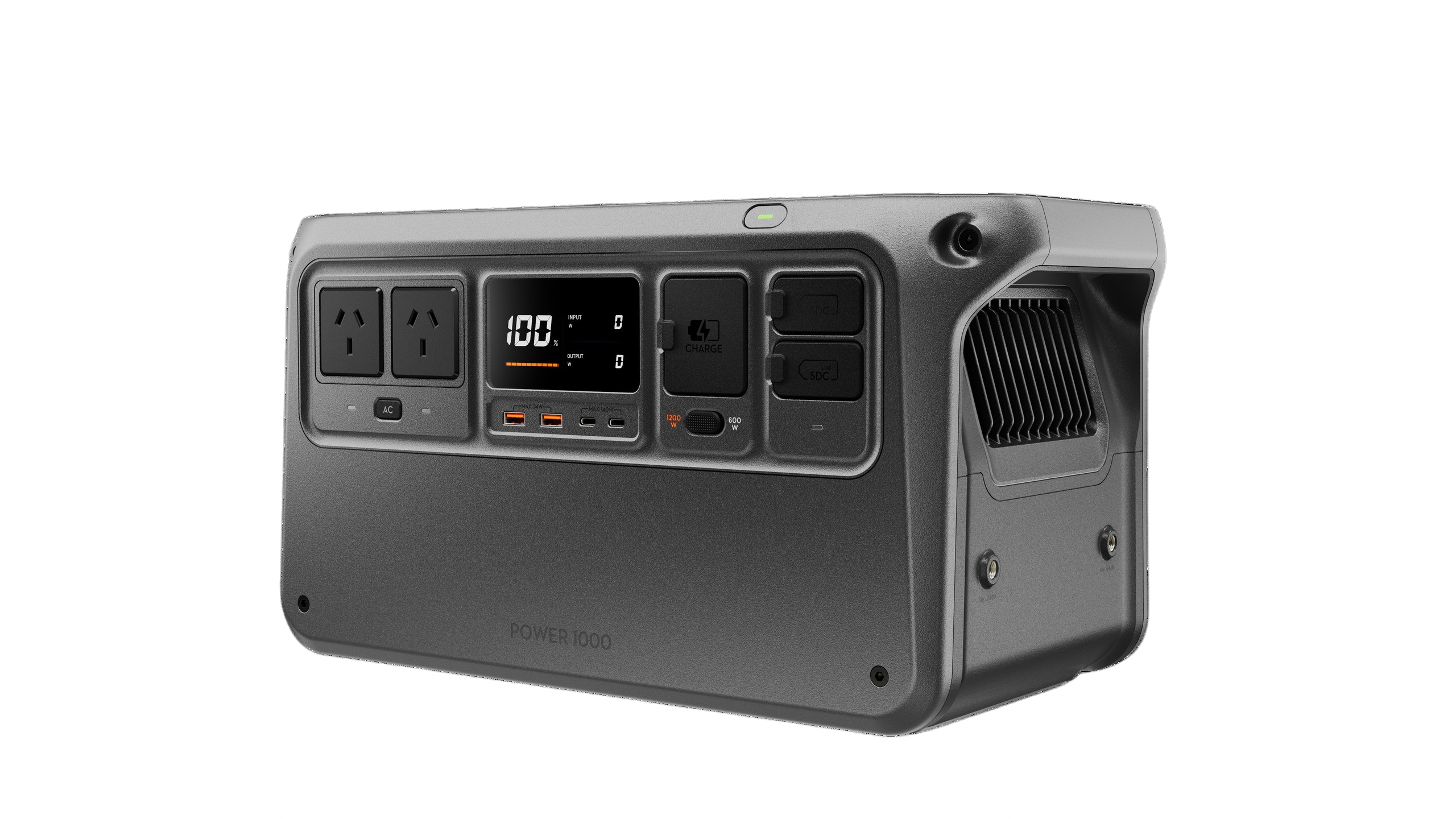

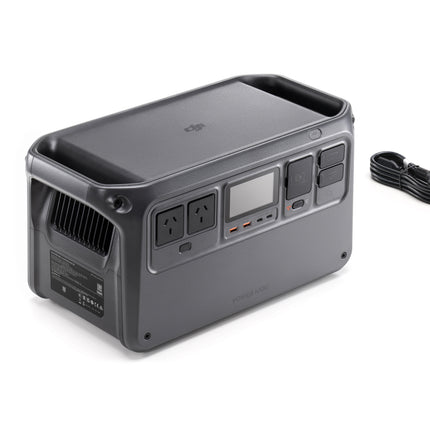

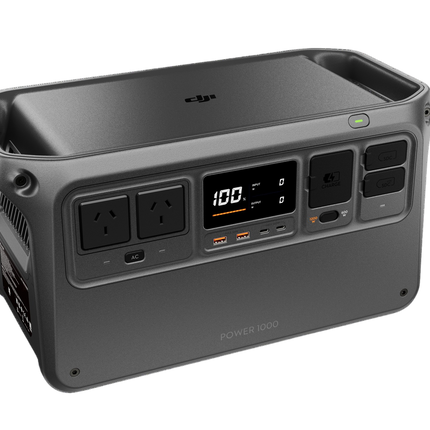

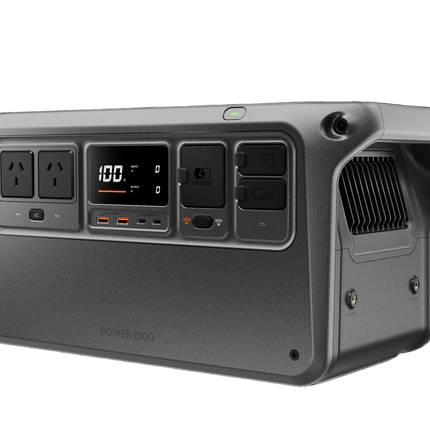

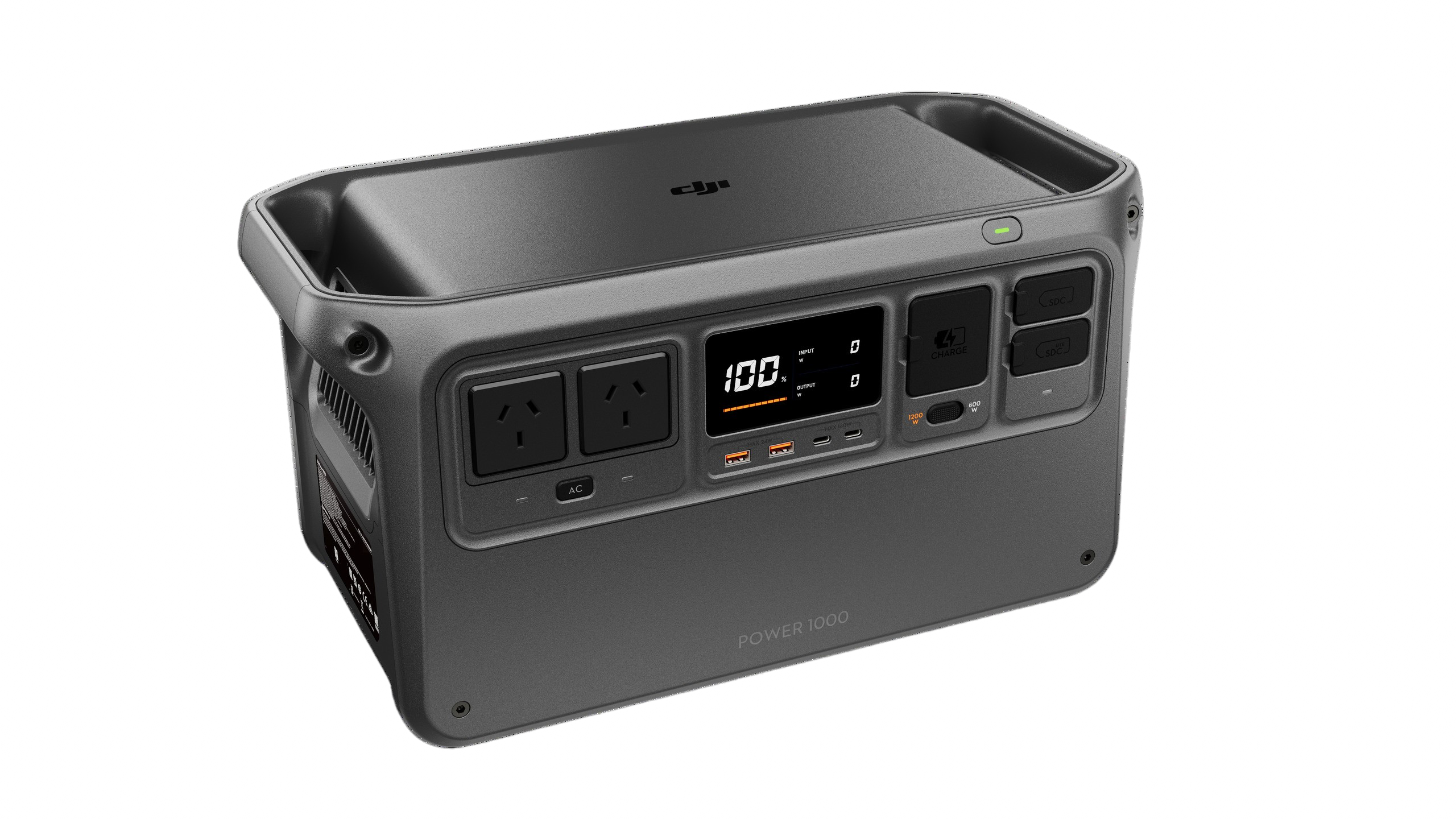

DJI Power 1000
Power Your World
Product Highlights
2400W Max Output Power [1]
Meets power demands of over 99% of common household appliances [2]
Fully Charged in 70 Mins [3]
Recharged to 80% in just 50 mins [3]
Supports Solar Charging
Ultra-Quiet Operation
Dual PD 3.1 USB-C Out Ports (140W Max) [4]
Up to 5 Years of Warranty
Comprehensive Safety
LFP cell with a service life of approx. 10 years
Fast Charges DJI Drones [5]
DJI Power SDC super-fast charge
Power Supply/Recharging in Multiple Scenarios
[Stable High-Power AC Output]
DJI Power 1000 has a battery capacity of 1024 Wh, providing a max AC output power of 2400 W. [1] It can also fast charge DJI drone batteries to unleash your aerial content creation.
1024Wh Capacity Charging Ability
|
Camping and Road Trips
|
Content Creation
|
DIY
|
Home Backup Battery
|
|
Mobile Phone
Approx. 57 times
|
Digital Camera
Approx. 59 times
|
Electric Jack Hammer
Approx. 1.2 hours
|
Wi-Fi Router
Approx. 76.8 hours
|
|
Camping Light
Approx. 32 times
|
Laptop
Approx. 9 times
|
Electric Chainsaw
Approx. 29 mins
|
Refrigerator
Approx. 45 hours
|
|
Coffee Machine
Approx. 55 mins
|
Drone
Approx. 12 times
|
Power Saw
Approx. 40 mins
|
Lamp
Approx. 92 hours
|
|
Projector
Approx. 9.2 hours
|
Photography Lighting Equipment
Approx. 1.2 hours
|
/
|
Rice Cooker
Approx. 1.2 hours
|
|
Car Refrigerator
Approx. 19 hours
|
Speaker
Approx. 64 times
|
/
|
Juicer
Approx. 3.6 hours
|
|
Electric Fan
Approx. 9 hours
|
/
|
/
|
Microwave Oven
Approx. 1.3 hours
|
* Measured under 25° C (77° F) laboratory conditions, using DJI Power 1000 to charge products of certain brands. The data is for reference only. Actual user experience may vary.
Which Product is Right for You?
The robust DJI Power 1000 provides stable power supply to more than 99% of common household devices. [2] Click the button below to choose your common scenarios and appliances, and find the product portfolio best suited for you.
Fast Charges DJI Drones
With the aid of separately-sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function, [5] and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation.
|
Mavic 3 Series Intelligent Flight Battery [7]
Approx. 32 mins
Battery level from 10% to 95%
|
DJI Air 3 Intelligent Flight Battery
Approx. 30 mins
Battery level from 10% to 95%
|
|
Inspire 3 TB51 Intelligent Flight Battery
Approx. 28 mins
Battery level from 10% to 95%
|
M30 TB30 Intelligent Flight Battery
Approx. 32 mins
Battery level from 10% to 95%
|
* The above charging time data was measured in a controlled test environment and is for reference only.
[Multiple Recharging Options]
DJI Power 1000 can be recharged in three ways: grid power, solar power, and car power. Whether indoors or on the road, you can flexibly choose the recharging method that works for you.
Grid Power
It's fast and easy to plug in, recharge, and go. When connected to grid power, DJI Power 1000 supports both 1200W Fast Recharge Mode and 600W Standard Recharge Mode, with the quickest recharging time being 70 minutes for 100% battery. It can also charge to 80% in just 50 minutes. [3]
Solar Power
DJI Power 1000 can be connected to solar panels through the DJI Power Solar Panel Adapter Module (MPPT) or the DJI Power Car Power Outlet to SDC Power Cable, [8] and recharged with environmentally friendly solar power. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm allows the solar panels to recharge DJI Power 1000 in an optimized and efficient way.
* Solar panels from DJI-certified brand Zignes are recommended. DJI Power 1000 supports a max solar power input of 800 W, and it can be fully recharged by solar power in approx. 1.35 to 2.8 hours. [9]
Car Power
Easily supercharge any road trip. With the DJI Power Car Power Outlet to SDC Power Cable (12V/24V), you can fully recharge DJI Power 1000 via car charger.
Safety Design
Safe and Secure, Inside and Out
Safety comes first at all times. From the body structure and cell chemistry to the system software, DJI Power 1000 features a comprehensive safety design. It has passed 26 product test certifications from the Swiss third-party testing authority SGS, ensuring worry-free electrical usage.
|
Intelligent Battery Management System (BMS)
When the safety threshold of electricity usage is surpassed, the protective mechanism for supplying power and recharging will kick into action automatically. And once electricity supply returns to normal, DJI Power 1000 will resume operation.
|
|
LFP Cell
The LFP cell is safe and durable, and can achieve 4000 cycles, [10] providing a lifespan of approximately 10 years, even with frequent use. [11]
|
|
SGS Switzerland Authority Certification
Thanks to its comprehensive safety design, DJI Power 1000 has gained the high-quality portable power station certification from SGS Switzerland, and received 26 product test certifications, including 2 product test verifications, 4 mechanical performance tests, 9 electrical performance tests, 3 environmental resistance tests, 5 noise-level tests, and 3 intelligent and efficient DC power-supplying and recharging tests.
|
Safe and Reliable Power Usage
|
11 Temperature Sensors
11 temperature sensors on the device continually monitor heat dissipation, and the power station can function normally even in temperatures as high as 40° C (104° F). [12]
|
|
Power Outage Protection
Ten fuses located throughout the power station provide circuit protection for each module. Even if there is a circuit abnormality, DJI Power 1000 will respond quickly and safely.
|
|
High-Strength Structure
The power station uses flame-retardant material and supports weight up to 100 kg (220 lbs), [12] further enhancing reliable protection.
|
UPS Mode, Seamless Power Continuity
If an electrical device is connected to a powered-on DJI Power 1000 (via AC output port) and both are receiving grid power, DJI Power 1000 defaults to UPS (Uninterruptible Power Supply) mode. In cases of sudden power outage, DJI Power 1000 can start powering the connected device (or devices) within 0.02 seconds, [12] ensuring continued operation.
Ultra-Quiet Operation
The noise level of DJI Power 1000 is as low as 23 dB [13] during recharging, lower than most household refrigerators, so there is no noise disturbance even in quiet environments.
Ample Accessories
[Extensive Ports, Expanded Applications]
Dual USB-C Out Ports (140W Max)
DJI Power 1000 has two 140W USB-C output ports, [4] with a total power output of up to 280 W, a 40% increase compared to the commonly found dual 100W USB-C output ports on the market. It easily meets the electricity demands of most USB-C port devices, while supporting up to PD 3.1 140W charging that can fast charge a 16-inch MacBook Pro.
Extensive Accessories

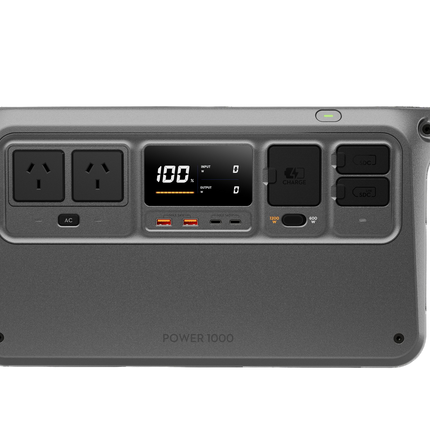

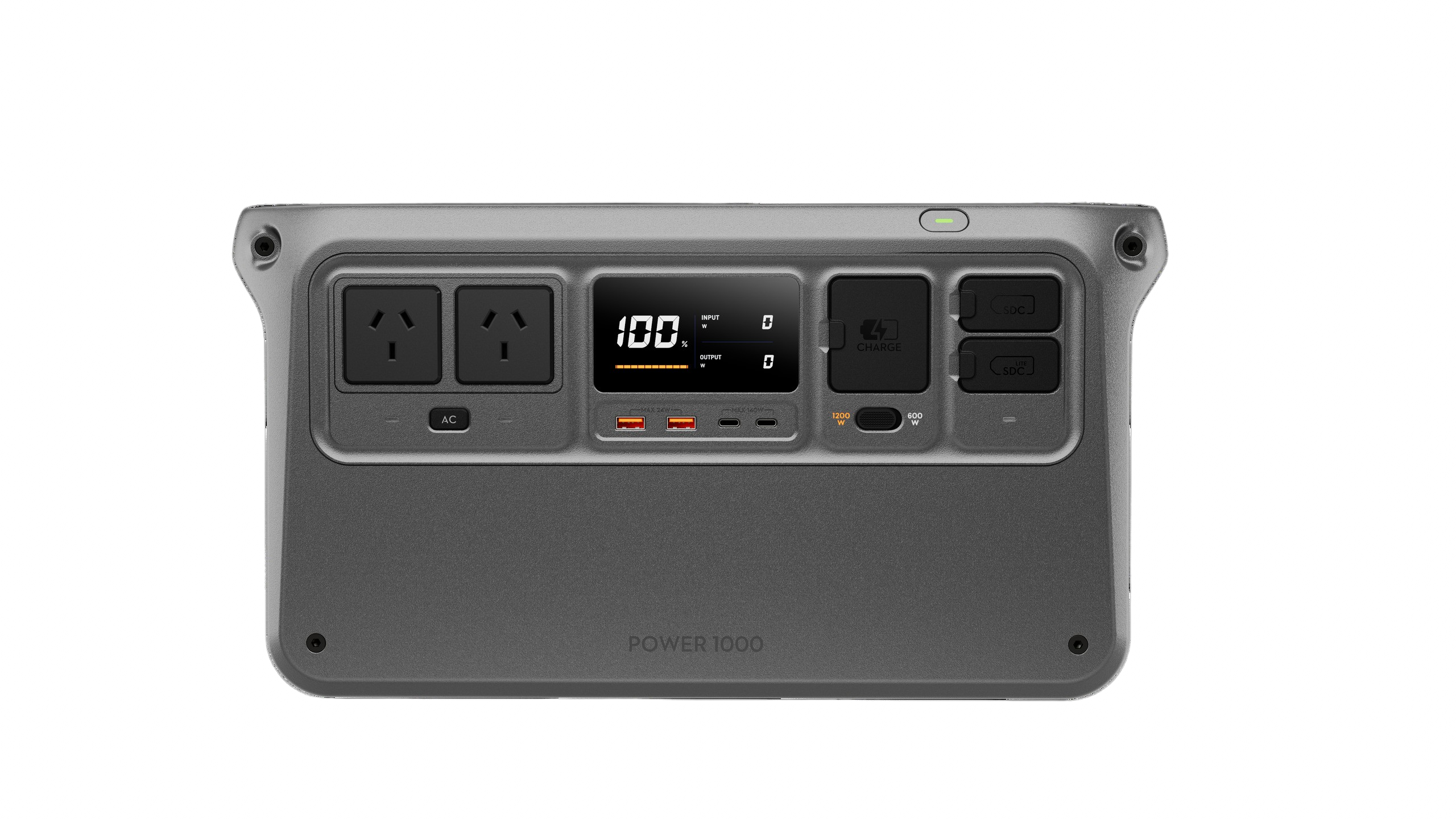

DJI Power 1000 has dual USB-A ports, dual AC output ports, one SDC port, one SDC Lite port, and two 1/4″ thread holes. It is highly versatile to make power usage in various scenarios more convenient. It can connect to different types of solar panels, power cables, and adapter cables, meeting the needs of a variety of power supply and recharging options.
|
DJI Power Solar Panel Adapter Module (MPPT)
Connect to one to three solar panels and recharge DJI Power 1000 with solar power.
|
|
DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
Can connect to one solar panel to recharge DJI Power 1000 via solar power, or recharge DJI Power 1000 via car charger.
|
|
Zignes 120W Solar Panel (Outside North America)
Zignes 100W Solar Panel (North America Only)
When paired with the DJI-certified Zignes solar panels, DJI Power 1000 can be recharged via solar power using the DJI Power Solar Panel Adapter Module (MPPT).
|
|
DJI Power SDC to Matrice 30 Series Fast Charge Cable
230W fast charge, charge a Matrice 30 battery from 10% to 95% in 32 mins.
|
|
DJI Power SDC to DJI Air 3 Fast Charge Cable
125W fast charge, charge an Air 3 battery from 10% to 95% in 30 mins.
|
|
DJI Power SDC to DJI Mavic 3 Series Fast Charge Cable
150W fast charge, charge a Mavic 3 series battery from 10% to 95% in 32 mins.
|
|
DJI Power SDC to DJI Inspire 3 Fast Charge Cable
200W fast charge, charge an Inspire 3 series battery from 10% to 95% in 28 mins.
|
|
DJI Power SDC to XT60 Power Cable (12 V)
With this cable, DJI Power 1000 can achieve 12V DC output, suitable for connecting to model aircraft balance chargers or devices with XT60 connectors.
|
|
DJI Power SDC to Car Charger Plug Power Cable (12 V)
Using this cable, DJI Power 1000 can charge car-powered devices that have a car charger plug, such as a car refrigerator.
|
|
DJI Power 1000 Protective Storage Case
Protect the power station from bumps and dust, and make it more convenient to carry.
|
* All of the aforementioned accessories are sold separately. All aforementioned charging data was measured in a controlled test environment and is for reference only. Actual user experience may vary.
** Certain accessories are currently out of stock. Stay tuned to DJI updates on availability.
*** Actual appearance of certain accessories may vary.
Notes
* The appearance of products sold in different countries and regions may vary. Refer to the actual item.
- Available when the product's battery level is above 20%.
- Device power does not exceed 2000 W.
- Data tested under laboratory conditions at 25° C (77° F) and should be used for reference only.
- Each USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
- Requires certain accessories, which are sold separately.
- DJI Power 1000 units purchased from the DJI Store will have a three-year warranty, which can be extended by an additional two years after registration. Consult customer service on DJI Store for more details.
- Supports DJI Mavic 3 Pro Series, Mavic 3 Classic, Mavic 3 Series, and Mavic 3 Enterprise Series.
- DJI Power 1000 can connect to up to two DJI Power Solar Panel Adapter Modules (MPPT), which can then connect up to three solar panels, meaning up to six solar panels can be connected to DJI Power 1000 at the same time. Additionally, DJI Power 1000 can connect to one solar panel through the DJI Power Car Power Outlet to SDC Power Cable.
- Requires the DJI Power Solar Panel Adapter Module (MPPT) and solar panels. The aforementioned accessories are sold separately. The minimum time to fully recharge was measured under 25° C (77° F) laboratory conditions and is for reference only. Actual recharging time is subject to factors like the angle of sunlight and light intensity. Actual user experience may vary. To use solar panels not officially recommended by DJI, convert the solar panel connector to an XT60 interface. To prevent damage to the MPPT module and the power station, ensure the open-circuit voltage of each solar panel is less than 30 V. The power output of each solar panel connected to a single XT60 interface should not exceed 200 W, with the total output power of solar panels connected to the entire MPPT module capped at 400 W.
- Measured under 25° C (77° F) laboratory conditions, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.
- Based on the correct usage of the product, DJI Power 1000 will have an approximate lifespan of 10 years, calculated on the basis of completing one full recharge/discharge cycle on a daily basis. This data is for reference only. Actual user experience may vary.
- Data measured in a DJI laboratory.
- Measured 100 cm away from DJI Power 1000 while it was being recharged in the Standard Recharging Mode and is for reference only.
- During power output, the device being charged must support the PD 3.0 protocol. During power input (recharging the power station), the charger must support the PD 3.0 protocol.
DJI Power 1000 Specifications:
| Model |
DYM1000L/DYM1000H |
| Capacity |
1024 Wh |
| Net Weight |
Approx. 13 kg |
| Dimensions |
448×225×230 mm (L×W×H) |
| Number of Ports |
"AC Output × 2<br> USB-C × 2<br> USB-A × 2<br> SDC × 1<br> SDC Lite × 1<br> AC Input × 1" |
| Max Operating Altitude |
3000 m |
| AC Output |
"DYM1000L: AC 100-120 V, 50/60 Hz, max continuous output: 2200 W<br> DYM1000H: AC 220-240 V, 50/60 Hz, max continuous output: 2400 W<br><br> <sup>Max continuous output power is available when the product's battery level is above 20%. AC output data varies by country and region. </sup><br> <sup>Given that the voltage in Japan is 100 V, the max continuous output power of the Japanese version is 2000 W.</sup>" |
| AC Output (Bypass Mode) |
"DYM1000L: AC 100-120 V, 12 A, 1440 W<br> DYM1000H: AC 220-240 V, 10 A, 2200 W" |
| USB-A Output |
"5 V, 3 A<br> 9 V, 2 A<br> 12 V, 2 A<br> Max output power per channel: 24 W" |
| USB–C Output |
"5 V, 5 A<br> 9 V, 5 A<br> 12 V, 5 A<br> 15 V, 5 A<br> 20 V, 5 A<br> 28 V, 5 A (EPR)<br> Max output power per channel: 140 W*<br> <sup>* The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.</sup>" |
| SDC and SDC Lite Output |
"SDC: 9-27 V, max current: 10 A, max output power: 240 W<br> SDC Lite: 9-27 V, max current: 10 A, max output power: 240 W<br><br> <sup>Both of the SDC and SDC Lite ports support extensive accessories.</sup>" |
| AC Input |
"DYM1000L: AC 100-120 V, 1200 W (recharging), 1440 W (Bypass mode)<br> DYM1000H: AC 220-240 V, 1200 W (recharging), 2200 W (Bypass mode)" |
| SDC and SDC Lite Input |
"SDC: DC 32-58.4 V, max 400 W, 8 A<br> SDC Lite: DC 32-58.4 V, max 400 W, 8 A<br> <sup>Both of the SDC and SDC Lite ports support extensive accessories.</sup>" |
| Cell Chemistry |
LFP (lithium ferrophosphate) |
| Cycle Life |
"Maintains over 70% capacity after 4000 cycles.<br> <sup>Measured at 25℃/77°F room temperature, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.</sup>" |
| Power Supply Temperature |
-10° to 45° C (14° to 113° F) |
| Recharging Temperature |
0° to 45° C (32° to 113° F) |
| Storage Temperature |
-10° to 45° C (14° to 113° F) |
3

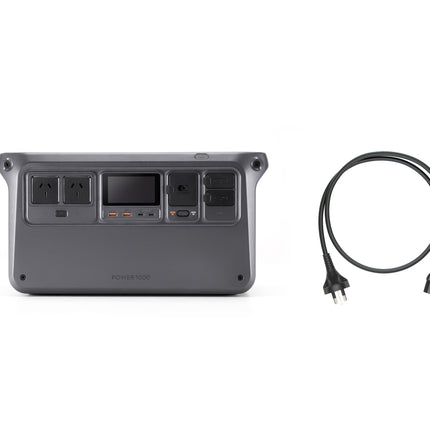

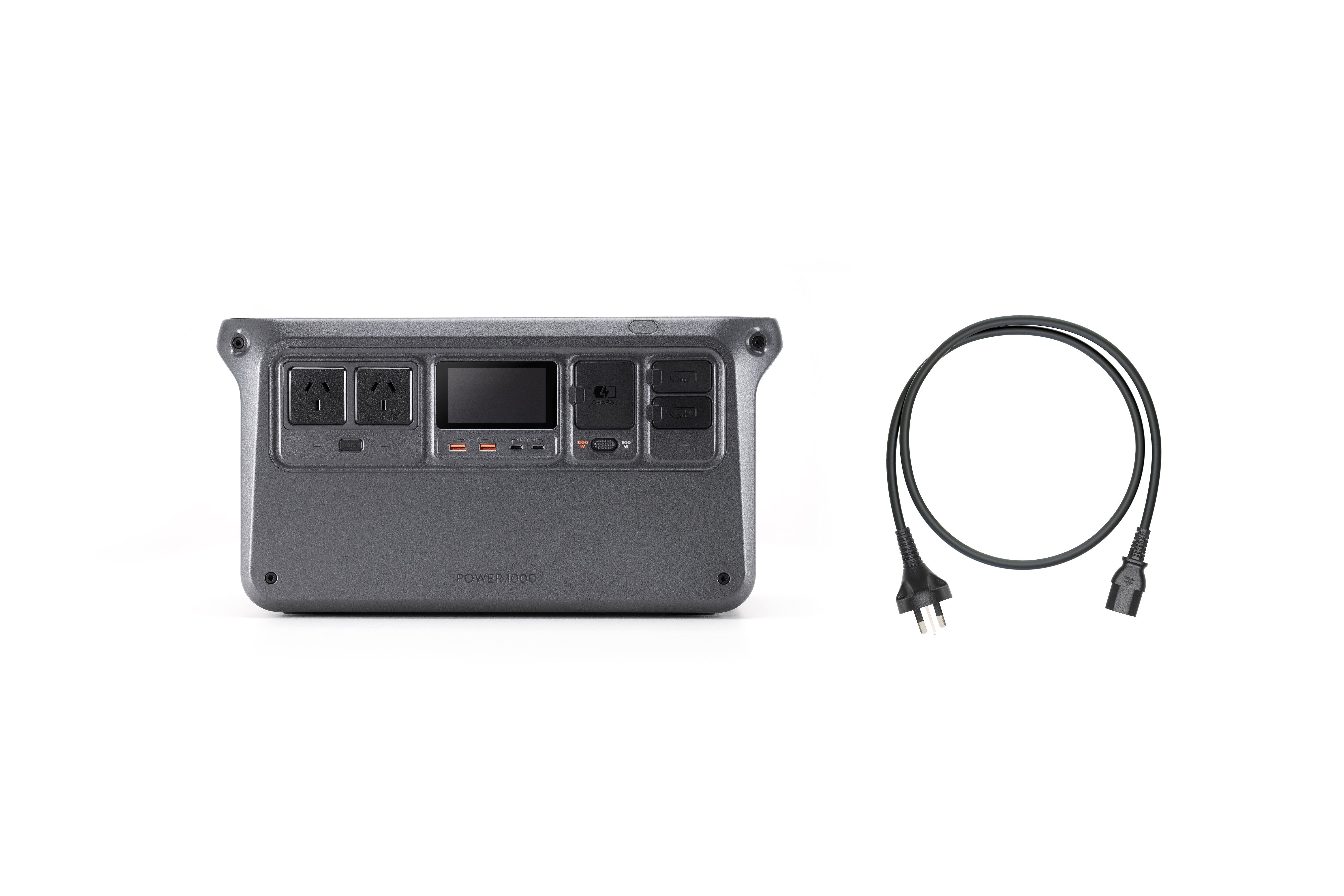

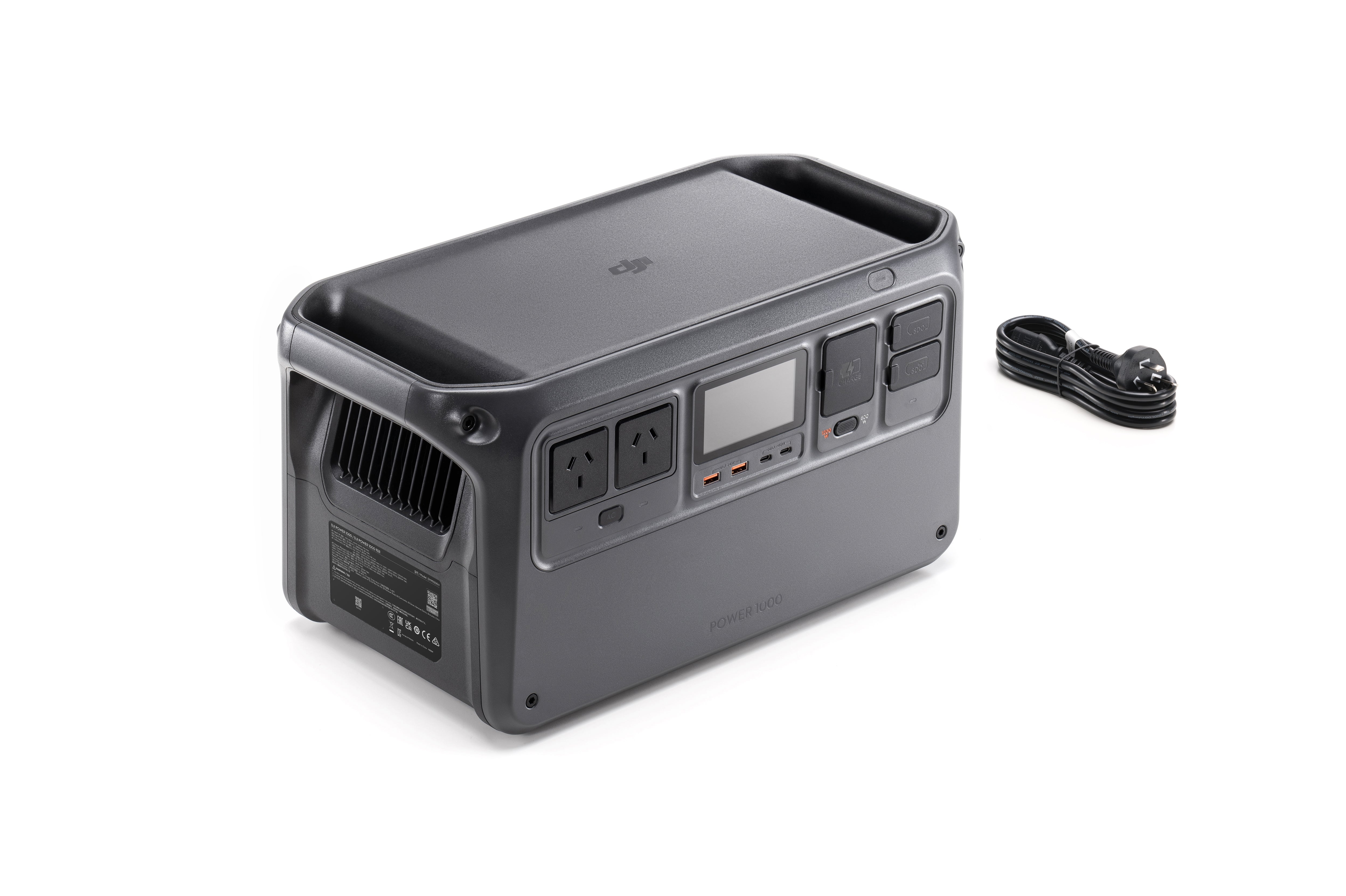

In the Box
DJI Power AC Power Cable × 1
