Description

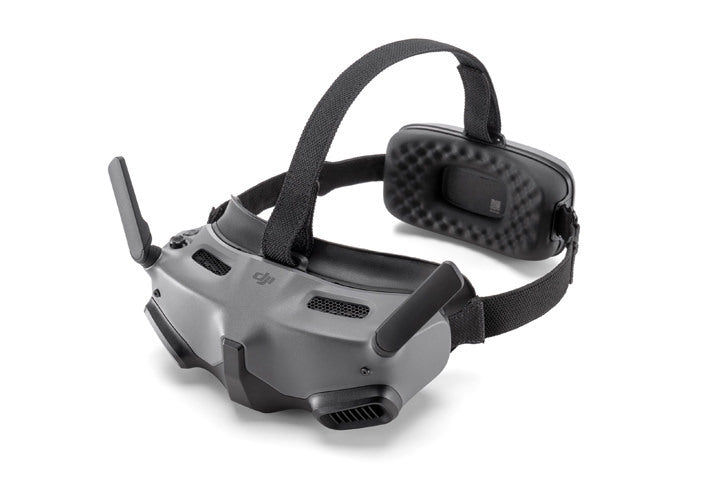

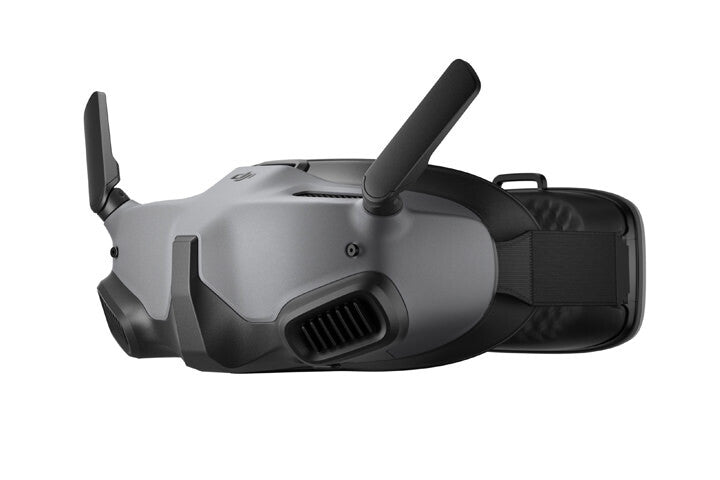

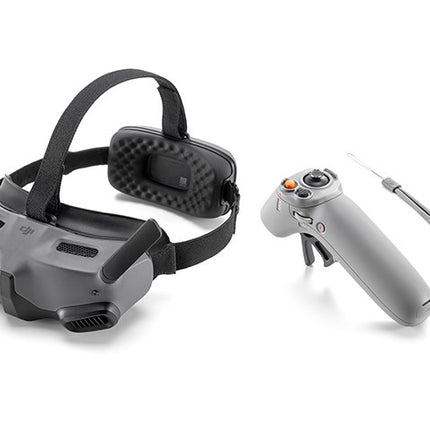

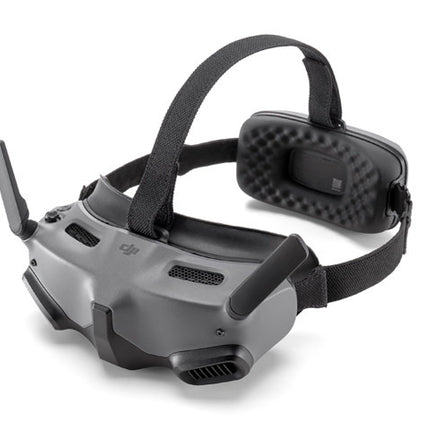

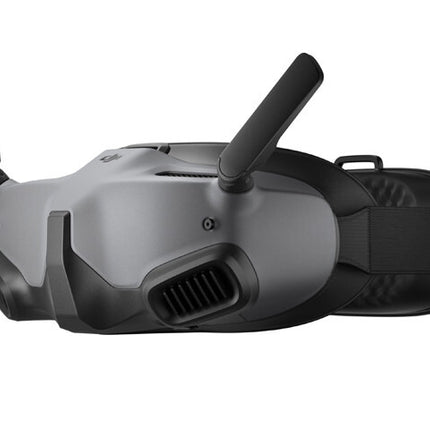

DJI Goggles Integra features an integrated design, adopts two 1080p Micro-OLED screens with up to 100Hz refresh rate, and supports ultra-low-latency video transmission, delivering a more immersive flight experience.
Combined for Convenience

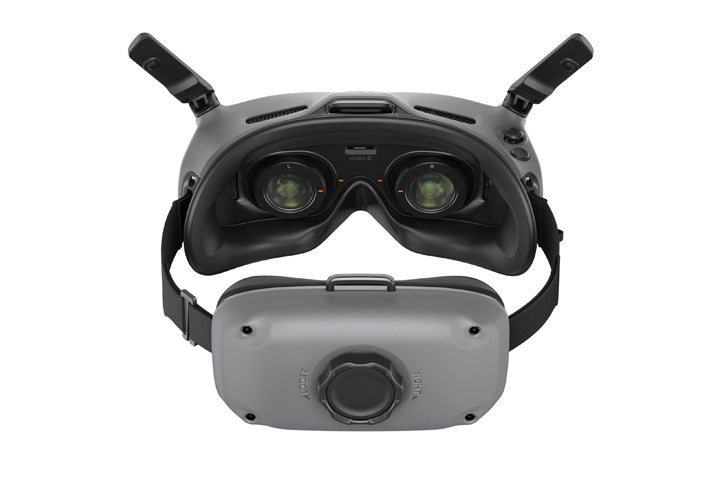

DJI Goggles Integra combines headband and battery into one, getting rid of pesky cables. Light and compact, the goggles weigh about 410 g with foldable antennas. And with a two-hour battery life, you can fly comfortably and worry-free for extended flights.
HD Display, Stunning Colors

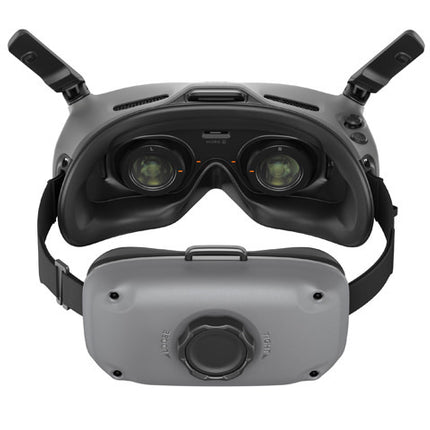

DJI Goggles Integra has two 1080p Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. Enjoy brilliant views with a screen brightness of up to 700 nits and a refresh rate of up to 100 Hz. DJI Goggles Integra is also TÜV Rheinland Low Blue Light Certified, so you can rest assured your flight is easy on the eyes.
Ultra-Low Latency, Stable Video Transmission
DJI Goggles Integra adopts DJI O3+ video transmission, boasting latency as low as 30 ms. The goggles automatically switch frequency bands and possess strong anti-interference capabilities so that you can soar uninterrupted.
Share the Sky
Connect to the DJI Fly app and display a real-time camera view to your goggles and smartphone so you can share your view.
Tips
What precautions should be taken when using DJI Goggles Integra with the DJI Mavic Series or DJI Mini Series for the first time?
1. Before first use, please make sure that the goggles and motion controller have been updated to the latest firmware version. Additionally, use DJI RC-N1, DJI RC, or DJI RC Pro to update the drone to the latest firmware version. Otherwise, the linking between the aircraft and the goggles and motion controller will fail.
2. FPV flight control is only supported when the goggles are used with DJI RC Motion 2.
3. When the goggles are used with the DJI Mavic 3 Series, the drone supports omnidirectional obstacle sensing and APAS 5.0, 4K/60fps and 1080p/60fps normal video recording, and Explore mode. For intelligent features like MasterShots, QuickShots, and Panorama, only DJI RC-N1, DJI RC, or DJI RC Pro are compatible.
4. When the goggles are used with DJI Mini 3 Pro, the drone supports forward and backward obstacle sensing and APAS 4.0, 4K/60fps, 2.7K/60fps, and 1080p/60fps normal video recording. For vertical shooting and intelligent features like MasterShots, QuickShots, and Panorama, only DJI RC-N1, DJI RC, or DJI RC Pro are compatible.
Compatibility
DJI Avata
DJI Mavic 3 Classic
DJI Mavic 3
DJI Mavic 3 Cine
DJI Mavic 3 Pro
DJI Mavic 3 Pro Cine
DJI Mini 3 Pro
PRODUCT SPECIFICATIONS
DJI GOGGLES INTEGRA
GOGGLES
Model: RCDS13
Weight: Approx. 410 g (battery included)
Dimensions (L×W×H): With antennas folded: 170×104×74.44 mm
With antennas unfolded: 205×104×104 mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
IPD Range: 56-72 mm
FOV (single screen): 44°
Video Recording Format: MOV
Supported Video Playback Formats: MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature: -10° to 40° C (14° to 104° F)
Power Input: Built-in battery
Supported SD Cards: microSD (up to 512 GB)
Recommended microSD Cards: SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC
VIDEO TRANSMISSION
Video Transmission: When used with different aircrafts, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata: O3+
Operating Frequency: 2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP): 2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
Transmission Latency: 1080p/100fps: as low as 30 ms
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission Distance: When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata:
12 km (FCC)
6 km (CE/SRRC/MIC)
DJI O3 Air Unit:
10 km (FCC)
2 km (CE)
6 km (SRRC)
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Max Video Bitrate: 50 Mbps
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
BATTERY
Weight: Approx. 185 g (headband included)
Dimensions (L×W×H): 120×48.8×71 mm
Capacity: 2450 mAh
Voltage: 5.6-8.4 V
Type: Li-ion
Chemical System: LiNiMnCoO2
Energy: 17.64 Wh
Charging Temperature: 5° to 45° C (41° to 113° F)
Max Charging Power: 15 W (charging when powered off)
Operating Time: Approx. 2 hours
Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

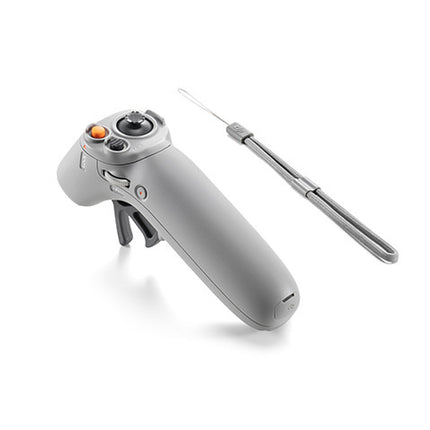

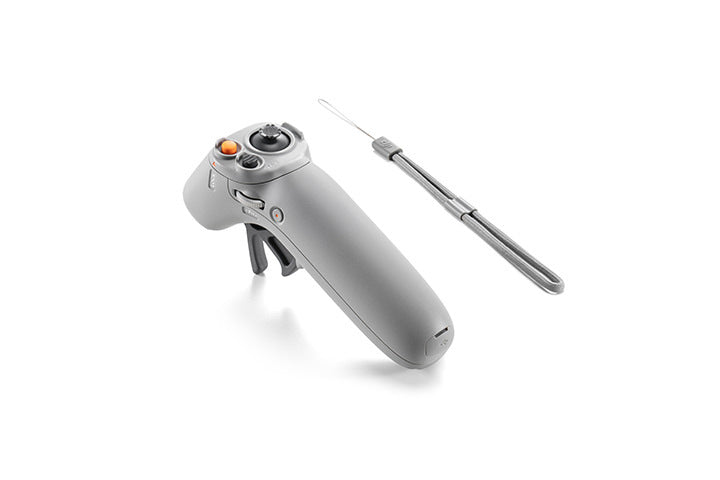

DJI RC MOTION 2
Model: RM220
Weight: Approx. 170 g
Operating Frequency: 2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP): 2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (unobstructed, interference free): 10 km (FCC)
6 km (CE/SRRC/MIC)
When used with different aircraft, the motion controller will automatically select the corresponding firmware to match the video transmission specification of the aircraft. Measured in an outdoor open environment without interference. Actual data varies with operating environment.
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Time: Approx. 5 hours
Measured with an ambient temperature of 25° C (77° F), when connected to DJI Avata, and in a stationary state.

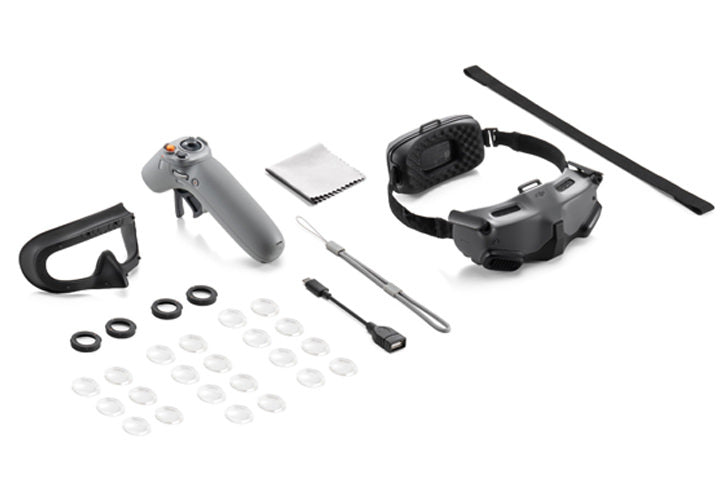

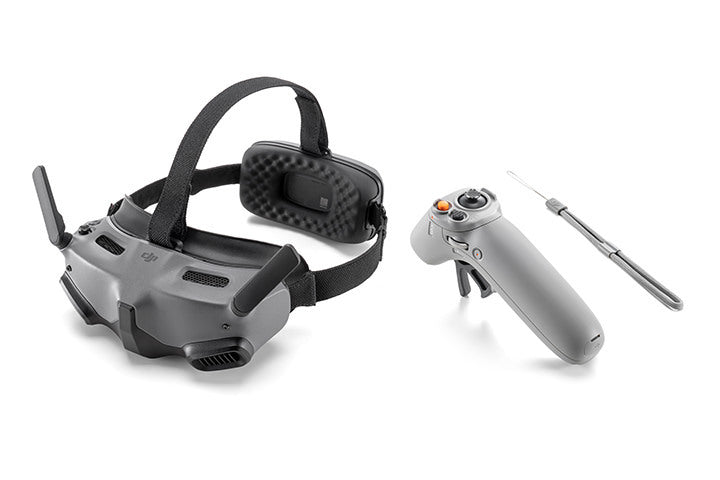

IN THE BOX
DJI Goggles Integra × 1
USB-C OTG Cable × 1
DJI Goggles Integra Eyeglass Frames (Pair) × 2
DJI Goggles Integra Corrective Lenses (Pair) × 11
DJI Goggles Integra Top Headband × 1
Lens Cleaning Cloth × 1
DJI RC Motion 2 × 1
Lanyard × 1
