Description
ALL THRILLS, NO FRILLS
FULLY EXPERIENCE FLIGHT
The adrenaline-pumping DJI Avata 2 delivers an immersive FPV drone experience with improved imaging, safety, and battery life. Amp up the fun when you pair Avata 2 with the new DJI Goggles 3 and DJI RC Motion 3.
VISIONARY BREAKTHROUGH

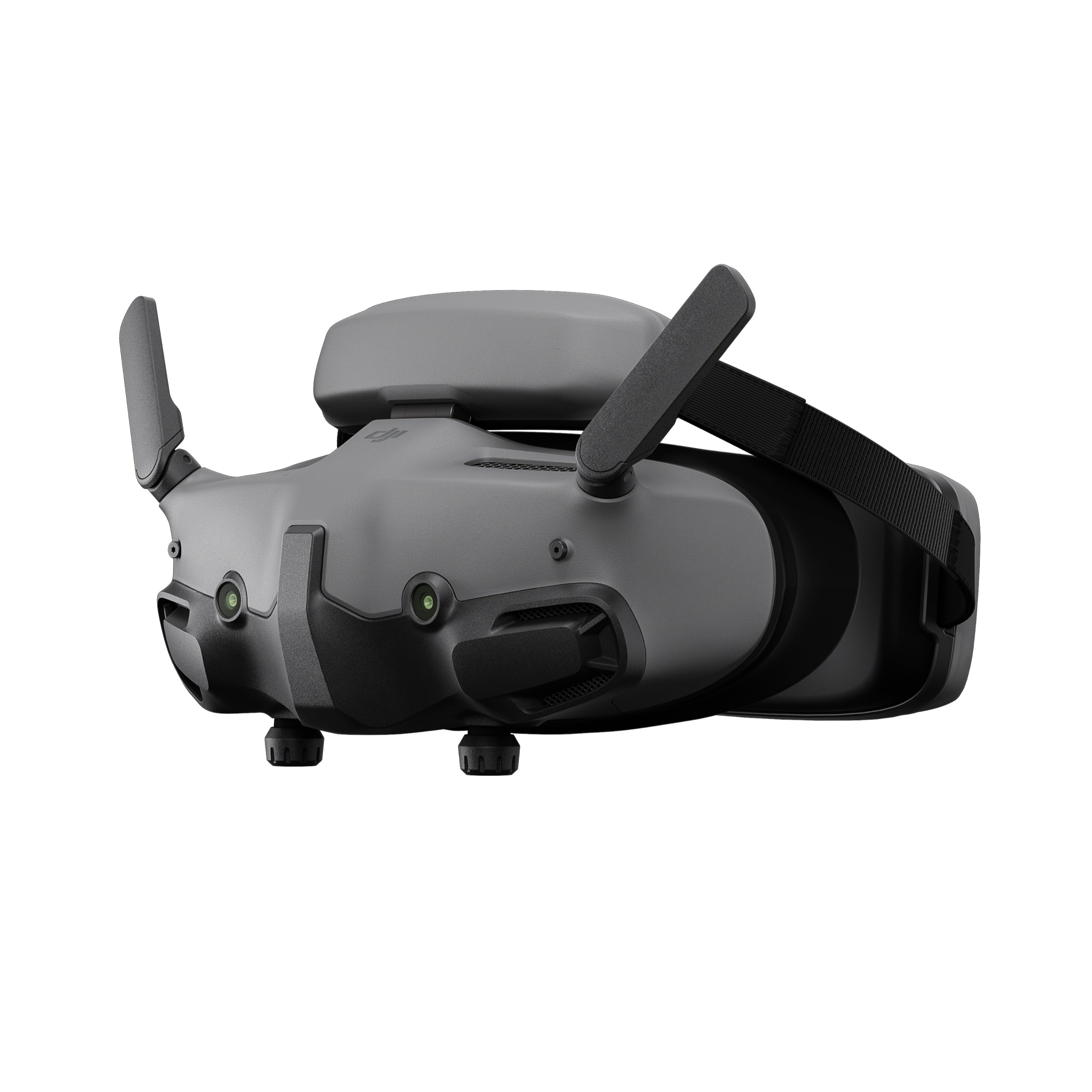

DJI Goggles 3 now has Real View PiP (Picture-In-Picture). Observe your surroundings without removing the goggles, for more safety and immersion. The Micro-OLED high-definition display and ultra-low-latency transmission bring the world into view.
FEEL EVERY FLIGHT

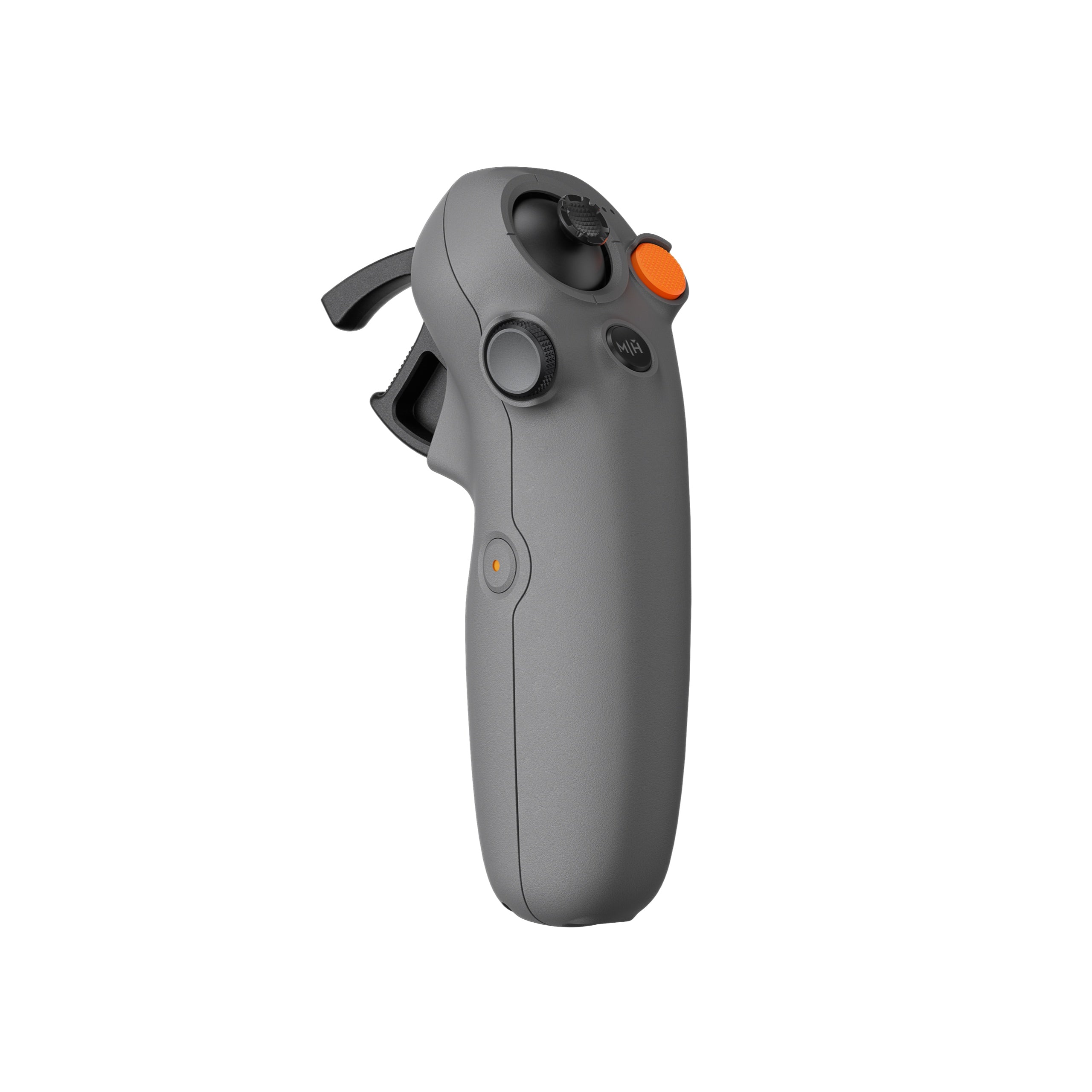

Effortlessly perform difficult aerial acrobatics with DJI RC Motion 3. New pilots can now perform spectacular flips, drifts, and other captivating manoeuvres.
FLIPPING AWESOME
CREATIVE EDGE
EASY ACRO
Soar, dive, and roll for stunning aerial footage with a single push. Capturing epic FPV footage with DJI RC Motion 3 and Avata 2 is easier than ever.
One-Push Flip - 360° front/back flip, adding fresh twists to your footage.
One-Push Roll - Roll 360° left/right, turning any shot from meh to magic.
One-Push 180° Drift - High-speed lateral drifts to yaw spin 180° past objects and swiftly pull away, achieving dramatic visuals.
ADVANCED MANOEUVRES
Fly nimbly through tight spaces with the new DJI FPV Remote Controller 3 in Manual mode to showcase flying prowess [3] and gutsy creativity.
TIGHT SHOTS IN SUPER-WIDE 4K
Create breathtaking visuals with the 155° FOV of Avata 2 and its ability to swiftly approach and pull away from subjects. New pilots can quickly master aerobatic shots and capture fast-moving dynamic low-altitude shots that other drones can't.
1/1.3-INCH IMAGE SENSOR
The upgraded 1/1.3-inch image sensor expands the captured dynamic range, handling low-light conditions more effectively to capture outstanding footage on every flight. [4]
IMMERSION REIMAGINED
4K/60FPS HDR VIDEOS [7]
Unleash your true aerial potential. The 4K/60fps HDR on Avata 2 captures all the awesomeness of high-speed flight. In the goggles, you can adjust the sharpness and noise reduction levels for more finely tuned videos.
ROCKSTEADY
Equipped with DJI's latest stabilisation algorithm, Avata 2 captures smooth, steady footage even when flying at high speeds or in windy conditions.
HORIZONSTEADY
HorizonSteady handles horizontal rotations up to 360°, ensuring the captured footage remains locked on the horizon even if the drone turns sharply or sways dramatically.
155° ULTRA-WIDE-ANGLE FOV
Amplify your vision and increase the immersion of low-altitude, high-speed flights. Avata 2 offers ultra-wide-angle, wide-angle, and normal-angle FOV options giving you the ability to adjust to the scenario.
10-BIT D-LOG M
Capture rich detail in highlights and shadows and enhance content post-production opportunities while further streamlining colour-grading.
GOT YOU COVERED
COMPREHENSIVE SAFETY
The updated integrated propeller guard design of Avata 2 makes it lighter and more agile, enabling it to navigate freely in tight spaces. [4] Releasing the accelerator on RC Motion 3 or pressing the lock button brings the drone to a halt, allowing you to handle unexpected situations calmly. In addition, the automatic Return to Home (RTH) function is initiated when the drone's battery is low or in case of signal loss, adding an extra layer of security. [8]
ADVANCED POSITIONING WITH NEW SENSORS

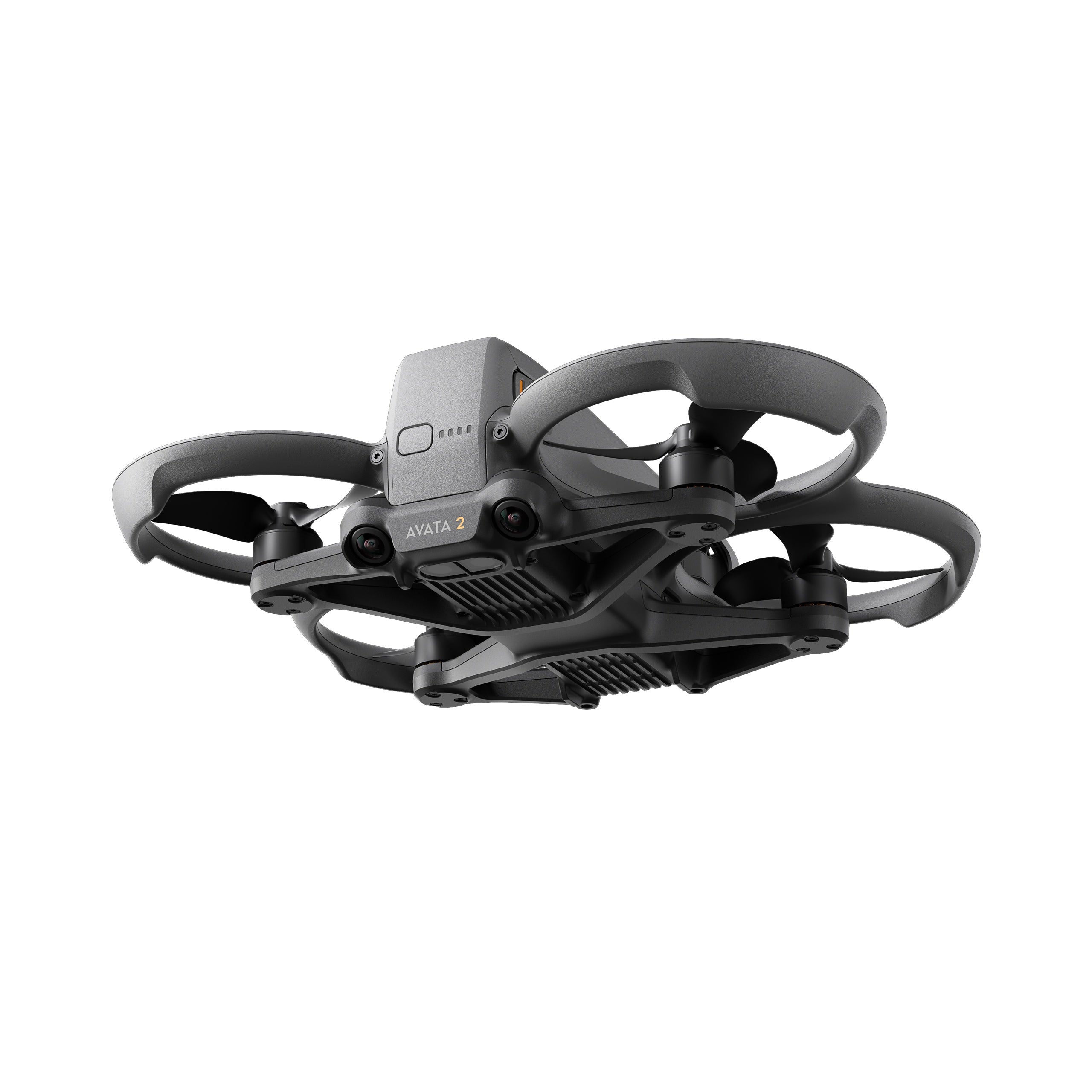

New binocular fisheye sensors enable downward and backward visual positioning during low-altitude and indoor flights, enhancing flight stability and safety.
TURTLE MODE
Avata 2 can automatically flip itself back into takeoff position when upside down with Turtle mode enabled, so you can quickly get airborne again.
EXCELLENCE IN EVERYTHING
THE SKY'S THE LIMIT WITH LONGER FLIGHT
Avata 2 boasts a maximum flight time of 23 minutes [9] and supports PD fast charging, so you can quickly recharge it and take to the skies again.
The new DJI Avata 2 Two-Way Charging Hub [3] features a power accumulation function, allowing the transfer of remaining power from multiple batteries to the one with the highest charge level, [10] giving you an "extra battery" in critical moments.
O4 VIDEO TRANSMISSION, ENHANCED PERCEPTION
DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. Its two-transmitter, four-receiver, four-antenna design ensures strong anti-interference performance, and it boasts up to 13 km of maximum video transmission distance, [11] a transmission latency as low as 24 ms, [12]1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. [13]
BOUNDLESS PASSION, WIRELESS SHARING
Watch the DJI Goggles 3 live feed from Avata 2 on your smart device's DJI Fly App. [14] Connect up to 5 m away. [15]Sharing the excitement of FPV just got easier, and learning how to fly is more accessible than ever.
SAVE MORE, SHARE MORE
CAPTURE AND EDIT SEAMLESSLY
Avata 2 comes equipped with 46GB internal storage, capable of storing approximately 90 minutes of 1080p/60fps video, ensuring you capture the best parts of each flight.
With Wi-Fi connectivity for fast file transfer to your phone, post-editing and sharing of your finished work is highly efficient.
ONE-TAP VFX WITH LIGHTCUT
The LightCut app, connecting directly to DJI Avata 2 via Wi-Fi, allows you to intelligently add Sky VFX during post based on the flight trajectory captured in your videos, helping you easily create engaging aerial footage. Without the need to download the footage, the app offers editing and, combined with One-Tap Edit, allows you to produce polished content in a snap effortlessly.
Sky VFX - After connecting the device and importing the footage, tap Sky VFX to add unique overlays, through-the-air text animations, virtual cockpits, and dashboard effects, enhancing the interactive fun and engagement of your immersive flight footage.
One-Tap Edit - With AI's intelligent recognition of video types and themes, you can effortlessly filter through and select highlights with smooth camera work and exquisite composition. Coupled with a vast array of thematic templates, enabling you to produce polished content. The app also boasts intelligent sound effects, colour recovery, one-click addition of device watermarks, and end credits, among other features.
Wireless Connection - When Avata 2 is connected wirelessly to LightCut, you can preview the captured footage within the app and edit it without the need to download the footage, saving valuable space on your smartphone.
PRODUCT SPECIFICATIONS
AIRCRAFT
Takeoff Weight: Approx. 377 g
Dimensions: 185×212×64 mm (L×W×H)
Max Ascent Speed: 6 m/s (Normal mode)
9 m/s (Sport mode)
Max Descent Speed: 6 m/s (Normal mode)
9 m/s (Sport mode)
Max Horizontal Speed (near sea level, no wind): 8 m/s (Normal mode)
16 m/s (Sport mode)
27 m/s (Manual mode)*
* No faster than 19 m/s with the Manual mode in the EU regions.
Max Takeoff Altitude: 5000 m
Measured in a windless environment when taking off from an altitude of 5000 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
Max Flight Time: Approx. 23 mins
Measured when flying forward at a speed of 21.6 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
Max Hovering Time: Approx. 21 mins
Measured when hovering in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
Max Flight Distance: 13.0 km
Measured when flying forward at a speed of 43.2 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
Max Wind Speed Resistance: 10.7 m/s (Level 5)
Operating Temperature: -10° to 40° C (14° to 104° F)
Global Navigation Satellite System: GPS + Galileo + BeiDou
Hovering accuracy range: Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
Internal Storage: 46 GB
CAMERA
Image Sensor: 1/1.3-inch image sensor
Effective Pixels: 12 MP
Lens: FOV: 155°
Format Equivalent: 12 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range: 100-25600 (Auto)
100-25600 (Manual)
Shutter Speed: Video: 1/8000-1/30 s
Photo: 1/8000-1/50 s
Max Image Size: 4000×2256 (16∶9)
4000×3000 (4∶3)
Still Photography Mode: Single shot
Photo Format: JPEG
Video Resolution: 4K (4∶3): 3840×2880@30/50/60fps
4K (16∶9): 3840×2160@30/50/60fps
2.7K (4∶3): 2688×2016@30/50/60fps
2.7K (16∶9): 2688×1512@30/50/120fps
1080p (4∶3): 1440×1080@30/50/120fps
1080p (16∶9): 1920×1080@30/50/120fps
Video Format: MP4 (H.264/H.265)
Max Video Bitrate: 130 Mbps
Supported File System: exFAT
Color Mode: Standard
D-Log M
Camera FOV: Supports normal mode, wide-angle mode, and ultra-wide-angle mode.
EIS: Supports RockSteady 3.0+ and HorizonSteady
Can be disabled*
* When stabilization is turned off, footage captured with the wide-angle view supports offline stabilization Gyroflow.
GIMBAL
Stabilization: Single-axis mechanical gimbal (tilt)
Mechanical Range: Tilt: -95° to 90°
Controllable Range: Tilt: -85° to 80°
Max Control Speed (tilt): 100°/s
Angular Vibration Range: ±0.01°
Electronic Roll Axis: Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
SENSING
Sensing Type: Downward and backward visual positioning
Downward: ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.3-10 m
Measurement Range: 0.3-20 m
FOV: Horizontal 78°, Vertical 78°
Backward: Measurement Range: 0.5-20 m
FOV: Horizontal 78°, Vertical 78°
Operating Environment: Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement)
Adequate lighting (lux > 15, normal indoor lighting conditions)
VIDEO TRANSMISSION
Video Transmission System: O4
Live View Quality: 1080p@30/50/60/100fps
Operating Frequency: 2.400-2.4835 GHz
5.170-5.250 GHz*
5.725-5.850 GHz*
* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.
Transmitter Power (EIRP): 2.4 GHz:
<33 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
<33 dBm (FCC)
<30 dBm (SRRC)
< 14 dBm (CE)
Communication Bandwidth: Max 60 MHz
Max Transmission Distance (unobstructed, free of interference): FCC: 13 km (subject to the aircraft's max flight distance)
CE: 10 km
SRRC: 10 km
MIC: 10 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.
Max Transmission Distance (unobstructed, with interference): Strong Interference: Urban landscape, approx. 1.5-4 km
Medium Interference: Suburban landscape, approx. 4-10 km
Low Interference: Suburb/seaside, approx. 10-13 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference): Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed: Wi-Fi: 30 MB/s*
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
Lowest Latency: With DJI Goggles 3:
1080p/100fps Video Transmission Quality: 24 ms
1080p/60fps Video Transmission Quality: 40 ms
Max Video Bitrate: 60Mbps
Antennas: 4 antennas, 2T4R
WI-FI
Protocol: 802.11a/b/g/n/ac
Operating Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP): 2.4 GHz:
<20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
<20 dBm (FCC/SRRC)
< 14 dBm (CE)
BLUETOOTH
Protocol: Bluetooth 5.0
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
INTELLIGENT FLIGHT BATTERY
Capacity: 2150 mAh
Weight: Approx. 145 g
Standard Voltage: 14.76 V
Max Charging Voltage: 17 V
Battery Type: Li-ion
Energy: 31.7 Wh@0.5C
Charging Temperature: 5° to 40° C (41° to 104° F)
Charging Time: With Charging Hub (60W max charging power):
From 0 to 100%: approx. 45 min
From 10 to 90%: approx. 30 min
Directly Charging the Drone (30 W max charging power):
From 0 to 100%: approx. 88 min
From 10 to 90%: approx. 60 min
CHARGER
Recommended Charger: DJI 65W Portable Charger
DJI 65W Car Charger
USB Power Delivery charger
BATTERY CHARGING HUB
Input: 5-20 V, max 3 A
Output (power accumulation): Max 65 W
Output (charging): Max 17 V
Output (USB): 5 V, 2 A
Charging Type: Three batteries charged in sequence.
Compatibility: DJI Avata 2 Intelligent Flight Battery
STORAGE
Recommended microSD Cards: SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC
Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS React Plus 64GB U3 A1 V90 microSDXC
Kingston CANVAS React Plus 128GB U3 A1 V90 microSDXC
Kingston CANVAS React Plus 256GB U3 A1 V90 microSDXC
Samsung EVO Plus 512GB U3 A2 V30 microSDXC
DJI FPV REMOTE CONTROLLER 3
Max Operating Time: Approx. 10 hours
Operating Temperature: -10° to 40° C (14° to 104° F)
Charging Temperature: 0° to 50° C (32° to 122° F)
Charging Time: 2 hours
Charging Type: 5 V, 2 A
Battery Capacity: 2600 mAh
Weight: Approx. 240 g
Dimensions: 165×119×62 mm (L×W×H)
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): 2.400 GHz:
<26 dBm (FCC)
<20 dBm (CE/SRRC/MIC)

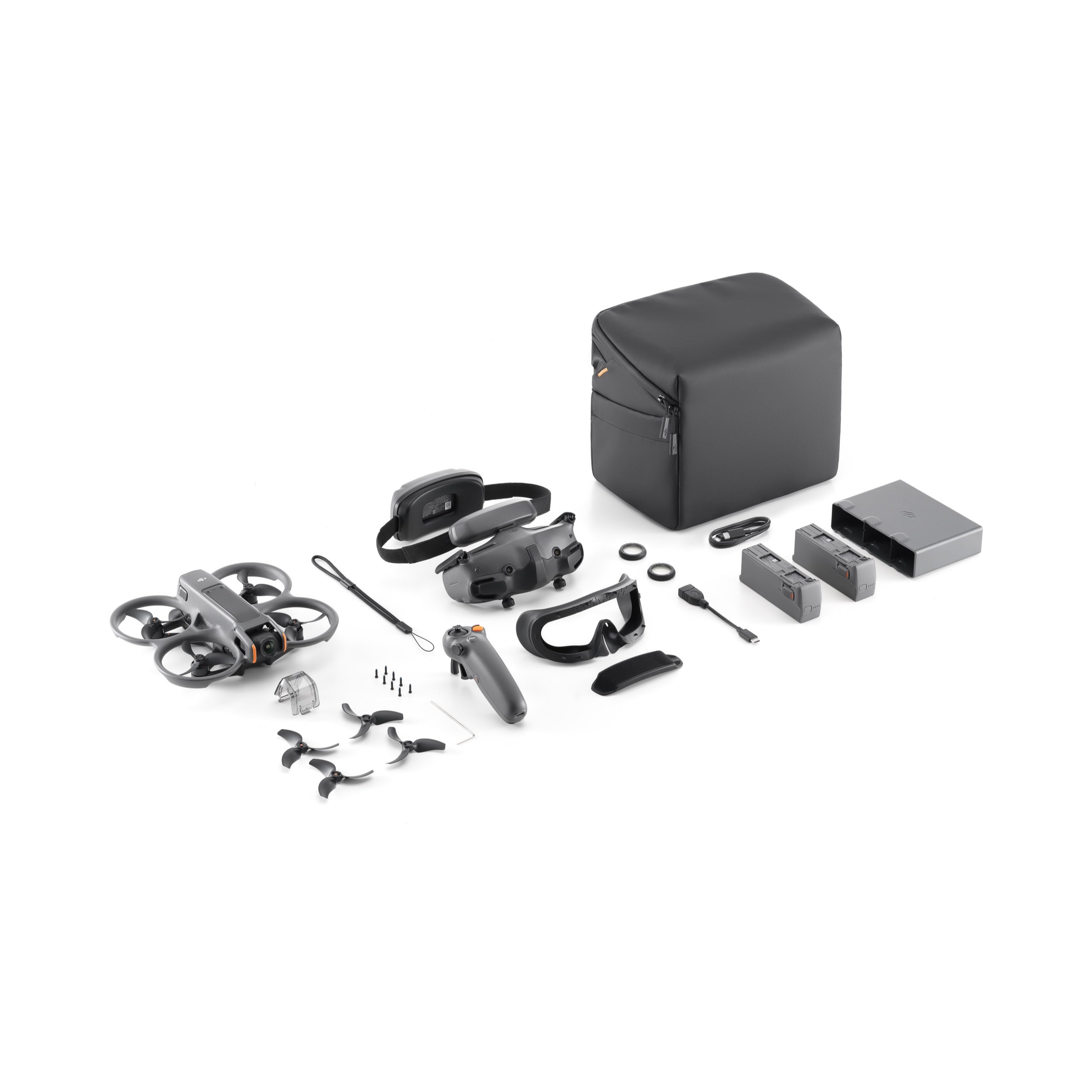

IN THE BOX
DJI Avata 2 × 1
DJI RC Motion 3 × 1
DJI RC Motion 3 Lanyard × 1
DJI Goggles 3 × 1
DJI Goggles 3 Foam Padding × 1
DJI Goggles 3 Additional Forehead Pad × 1
DJI Goggles 3 -2.0D Corrective Lenses (Pair) × 1
USB-C OTG Cable × 1
DJI Avata 2 Intelligent Flight Battery × 3
DJI Avata 2 Propellers (Pair) × 2
DJI Avata 2 Propeller Screw × 8
Screwdriver × 1
DJI Avata 2 Gimbal Protector × 1
Type-C to Type-C PD Cable × 1
DJI Avata 2 Two-Way Charging Hub × 1
DJI Sling Bag × 1
