Fisherman FD1S is built for fishing with a toughened body and a large bait capacity. The FD1S is ready to use straight out of the box, with unrivalled Efficiency and Power.
2.2 KG
Bait Capacity
The new FD1S’s propulsion system is optimized to provide higher strength and more efficiency than its predecessor, allowing the drone to lift heavier baits of upto 20% more (to 2.2 kg) with astonishing ease. This means that fishermen can take advantage of multiple baits to attract the big fish, and give you confidence that the drone will handle loads reliably in all conditions.
Smooth Control ESCs
The integration of sine wave ESCs in the FD1S ensures gentle and progressive motor acceleration, increasing stability when the drone starts lifting additional weights off the ground. The precise control provided by these ESCs also allows for delicate maneuvering and stable hovering, which is essential when positioning your baits exactly where you want them.
Marinised Motors
The motors on the FD1S are marinised meaning they have been developed to be used in and around the ocean and a salty environment.
S6 Flight Controller
With improved responsiveness, the new S6 flight controller (or "brain") actively makes real-time adjustments to maintain the FD1S‘s altitude and balance, ensuring stable operation even with heavy baits attached.
High Voltage Batteries
FD1S is powered by a high-voltage LiHV 6S battery with the aim to increase the drone’s lifting capacity. With high power-to-weight ratio, the FD1S’s flight battery enable the drone to carry heavy baits without sacrificing flight stability, and has enough thrust to operate in challenging conditions such as strong winds.
GPS 9.0
With improved satellites connectivity, the latest 9th-gen GPS provides unparalleled precision and stability when anglers are navigating FD1S to the specific fishing spot. The drone will maintain its position and course even in windy condition.
Calibration-free
Thanks to the S6 flight controller, anglers can deploy the FD1S for fishing swiftly, bypassing the complicated calibration process. FD1S can automatically calibrate its sensors to maintain stability and control during flight.
Cruise Mode
The cruise mode controls the FD1S to automatically fly at a constant speed and direction, making long-distance drone-casting effortless. Without constantly adjusting the drone’s flight, anglers can focus more on the fishing aspects.
Auto-Return
When FD1S has dropped your bait, a press of a button can automatically bring the drone back to the take-off point. The auto-return feature can also be triggered in emergencies such as low battery or signal loss.
Slide-in Battery
Replacing the FD1S battery is a breeze. Simply pop open the hatch, slide the battery into its slot, press the power button, and you're all set! Rest assured, the hatch is completely watertight, thanks to its rubber seal, ensuring everything stays dry when sealed.
Screw-on Propellers
The propeller's threaded design of FD1S ensures a straightforward setup, securely fastening the propellers to prevent them from detaching during high-thrust situations when the motors are working at high speeds.
IP65
Saltwater-resistant
The FD1S Drone is air pressure tested and dunk tested to ensure IPx5 water resistance. The fuselage is made from marine-grade ABS to increase strength and prevent distortion.
Corrosion-resistant
The water resistant motors, bait release and internal electronics of FD1S are treated with a corrosion-resistant coating - adding an extra layer of protection against the salty environment.
Self-Floating Design
We designed the FD1S with buoyancy to enable it to float when landing and taking off from the water.
40 MPH Wind Resistance
With its robust propulsion system and the precision of GPS 9.0 technology, FD1S is capable of holding its position and stability even in wind speeds reaching 40 mph / 35 knots.
Automatic Flip
Should the fishing drone inadvertently flip over in the calm water, the joysticks can be used to right the drone to its upright orientation, allowing you to lift-off and fly it safely back to shore.
Specifications
Aircraft
Water Resistance Rating: IP65
Weight: 1578g (Without battery); 2291g (With Battery)
Max Take-Off Weight: 4491g
Size (W/O Propeller): 628*628*218mm (With propellers); 372*372*202mm (Without propellers)
Max Ascent Speed: 3m/s
Max Descent Speed: 2m/s
Max Flight Speed: GPS:10m/s; ATTI:18m/s (Without payload), 14m/s (With max payload)
Max Tilt Angle: 30°
Max Altitude From Takeoff Point: 120m default
Max Flight Distance: 1300m
Max Image Transmission Distance: 1300m
Max Payload Capacity: 2200g(4.8lb)
Max Wind Speed Resistance: 18m/s
Max Flight Time(Hovering): 27 mins (no wind & no load)
Hovering Precision: ±0.5m
Working Temperature: -10°C~40°C
Satellite Positioning Systems: GPS + Galileo + BeiDou
Remote Controller
Size: 174*89*190mm
Weight: 378g(Without battery)
Operating Frequency: 2.402-2.478GHM
Bandwidth: 500KHz
Modulation Type: GFSK
Sensitivity: -92dB
Transmitter Power: < 20dB
Battery: 6V (1.5V AA*4)
Channel: 6
Flight Battery
Nominal Capacity: 4200mAh
Nominal Voltage: 23.1V
Max Charging Voltage: 26.4V
Type: 6S LIHV
Size: 153.6*82.4*48.3mm
Weight: 716g
Working Temperature: 0°C – 40°C
Charging Time: 120 mins
Max Charging Current: 5A
Charger
Input: 100~240V
Output: 22.2V-6A
Max Charging Power: 150W
Supported Battery Types and Cells: 6S LIHV
Size: 143*100*60mm
Weight: 454.6g
Working Temperature: 0°C ~60°C
Storage Temperature: 0°C ~60°C
Bait Release
SwellPro Fisherman FD1S Drone is equipped with a DUAL bait release.
Waterproof Rating: IP65
Max Payload Capacity: 2200g(4.8lb)
Size: 75*50*37.5 mm
Weight: 100g

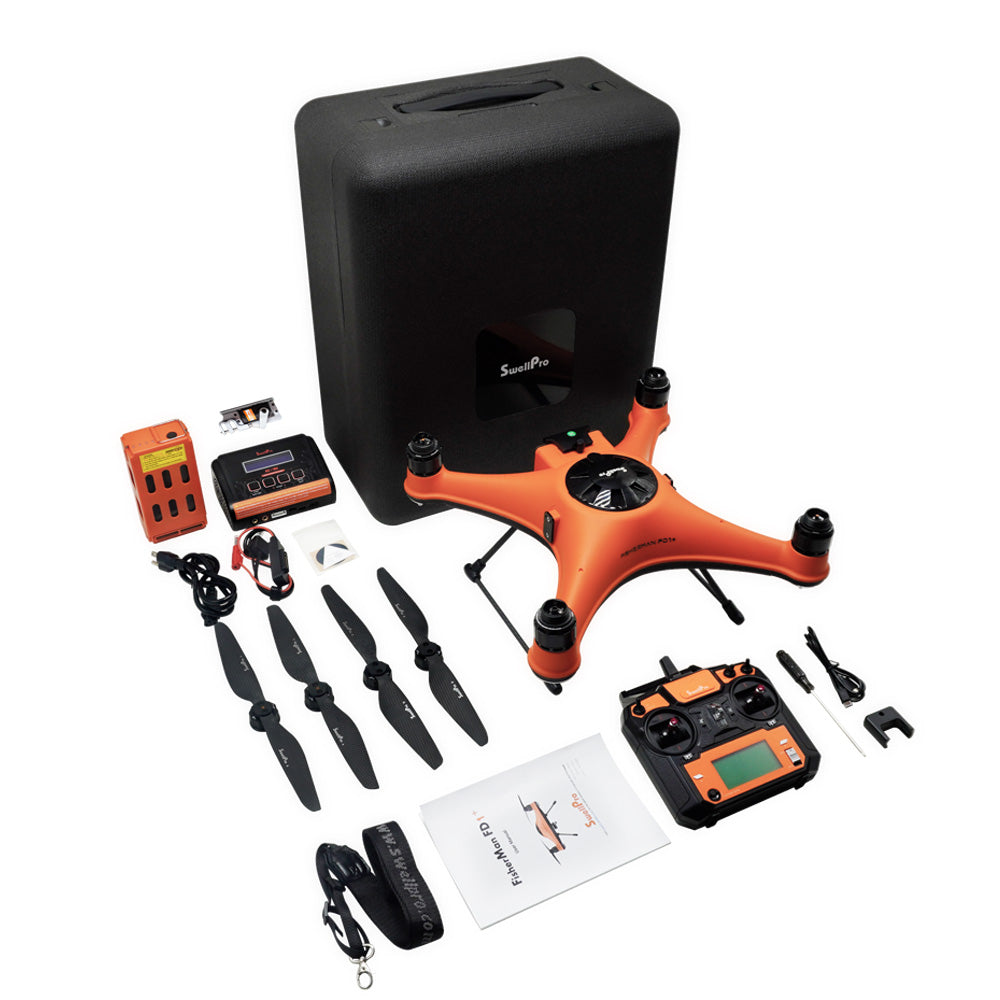

What's in the Box?
1x Aircraft
1x Remote Controller
1x Dual Payload Release
2x Propellers(Pair)
1x Flight Battery
1x Battery Charger & Cable
1x Power Adapter
1x Carry Case
