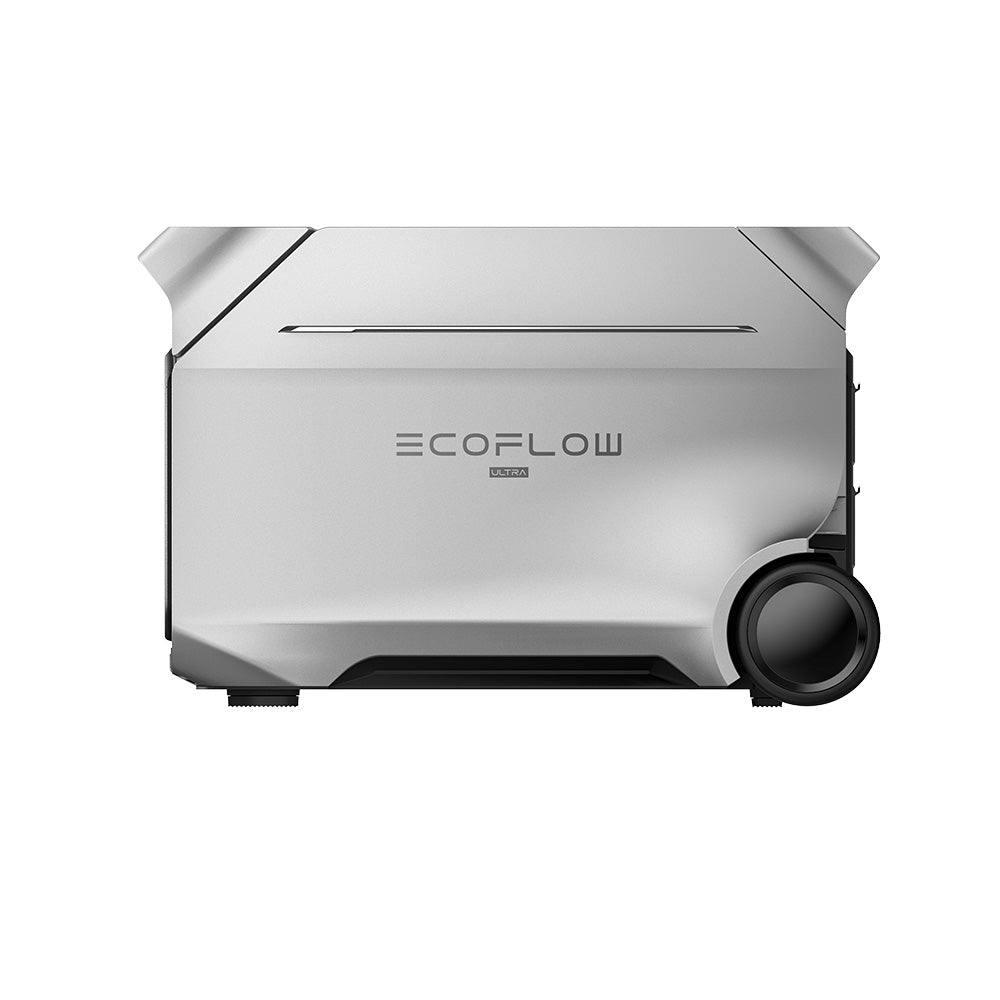

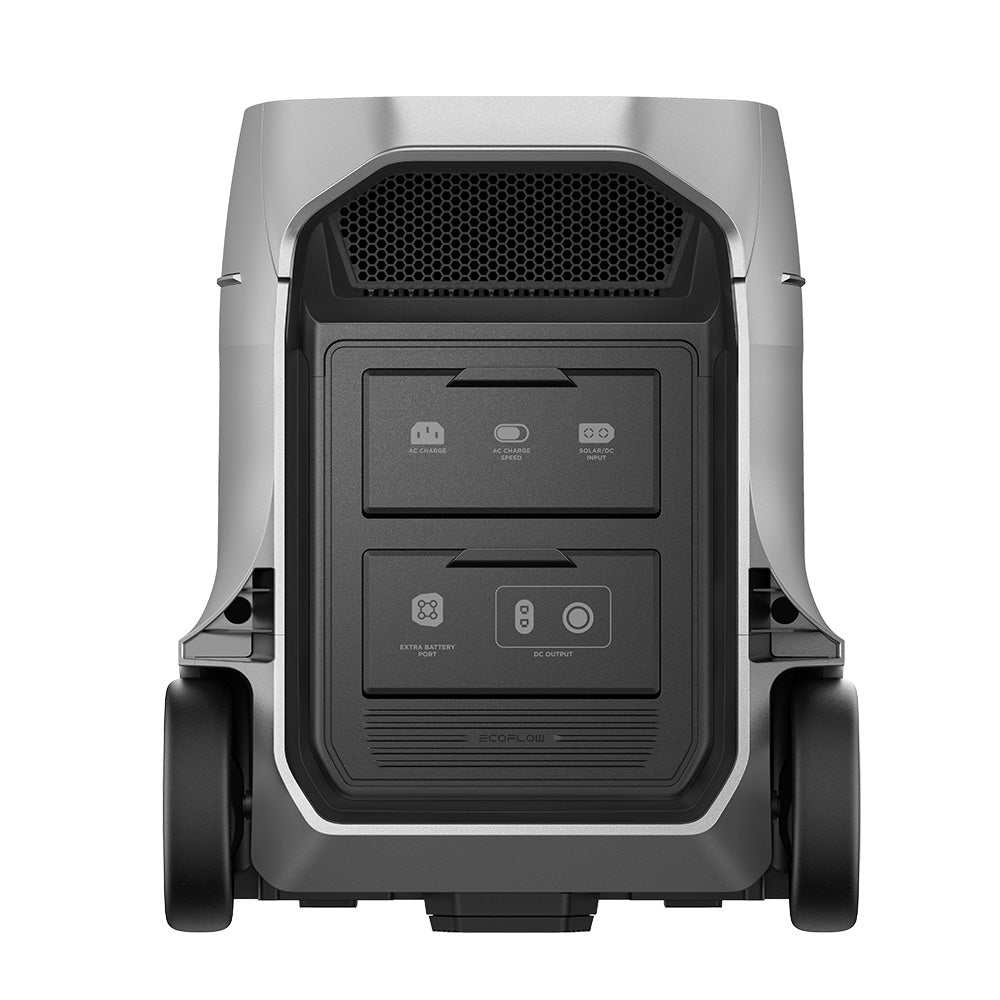

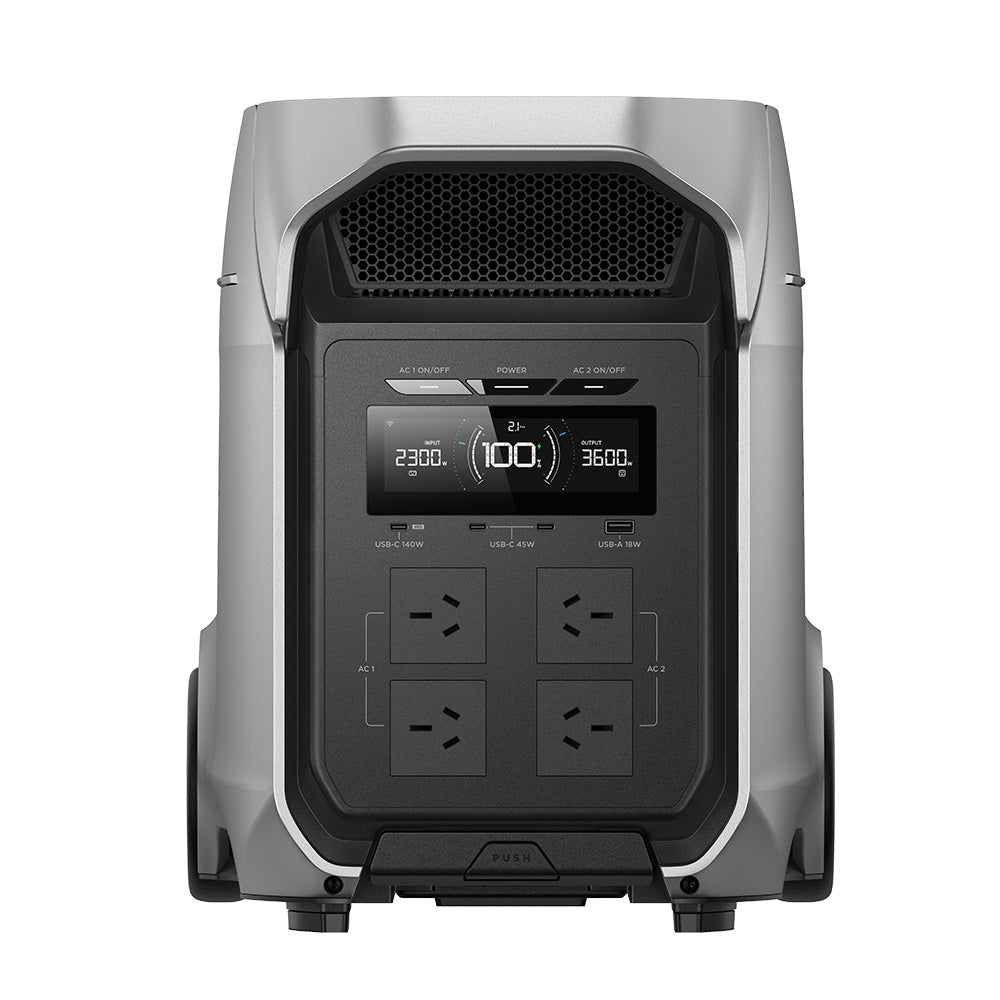

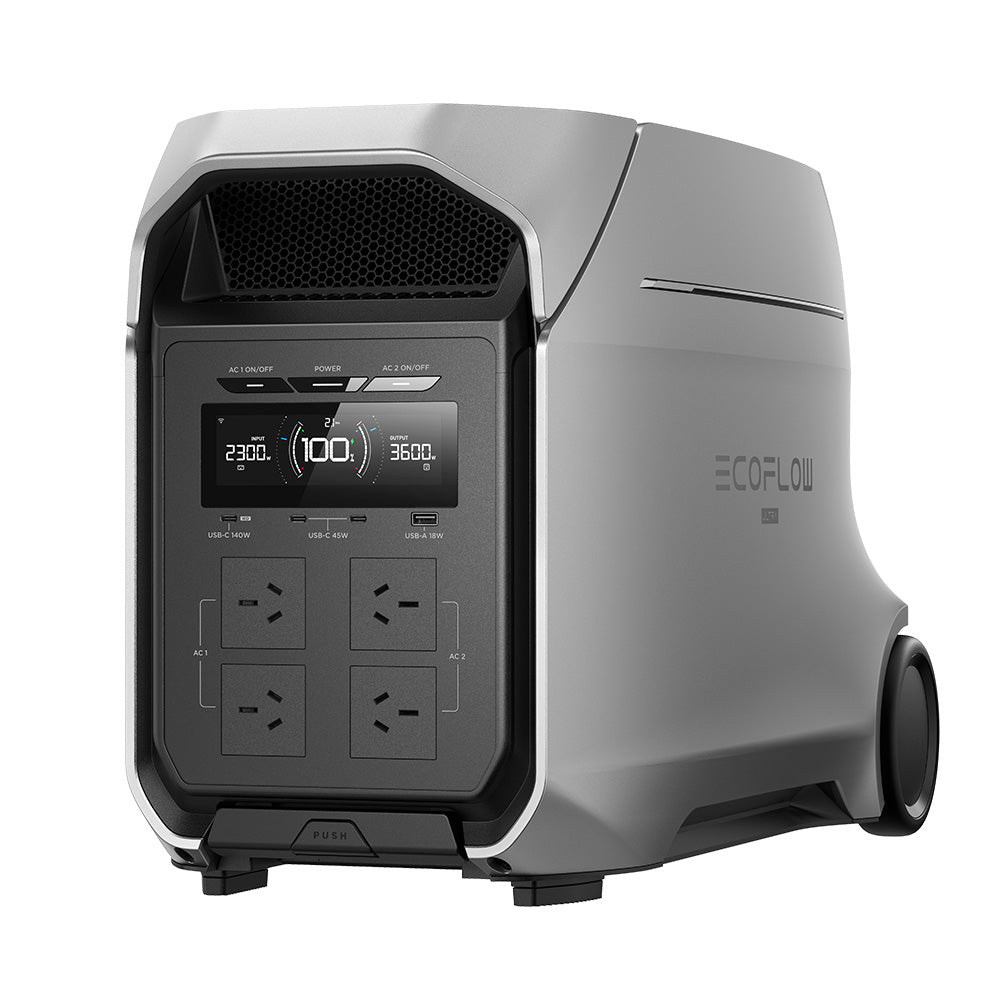

From battery chemistry to structural design, DELTA 3 Ultra Plus (3072Wh) is engineered for extreme durability, environmental resilience, and whisper-quiet performance.
Monitor your energy usage, savings, and solar generation—all with one intuitive dashboard. Easily track battery status, real-time electricity rates, and financial savings.
SPECIFICATIONS:
Colour: Silver
Capacity: 3072Wh
Extra Battery: D3M Plus EB/DP3 EB
Max Capacity with Extra Battery: Up to 11kWh
with 2*DP3 EB
Net Weight: Approx. 33.7kg
Dimensions: 613.1 × 327.7 × 395.0 mm
Output
Total Output Ports: 10
AC Output: 3600W (surge 7200W) ×4
Max Device(s) Power Supported by X-Boost: 4700W
USB-A Output (Fast Charge): 1×18W Max
USB-C Output: 1x140W Max; 2x45W Max (total 45W)
12V DC Output: Total 378W Max; 1x Car Charging Output x1, 12.6V⎓10A; 1x Anderson Output, 12.6V⎓ 30A
Input
AC Charging time: 75min (0-80% Charge time); 110min (0-100% Charge time)
AC Charging: 2300W
Solar Charging: 1600W
Car Charging: 1000W Max (Through 4+8 Port)
Battery
Battery Chemistry: LFP
Operating Humidity: 20%-95%
UPS
Response Time: <10ms HID
Noise: 600W ≤25db
IN THE BOX:
