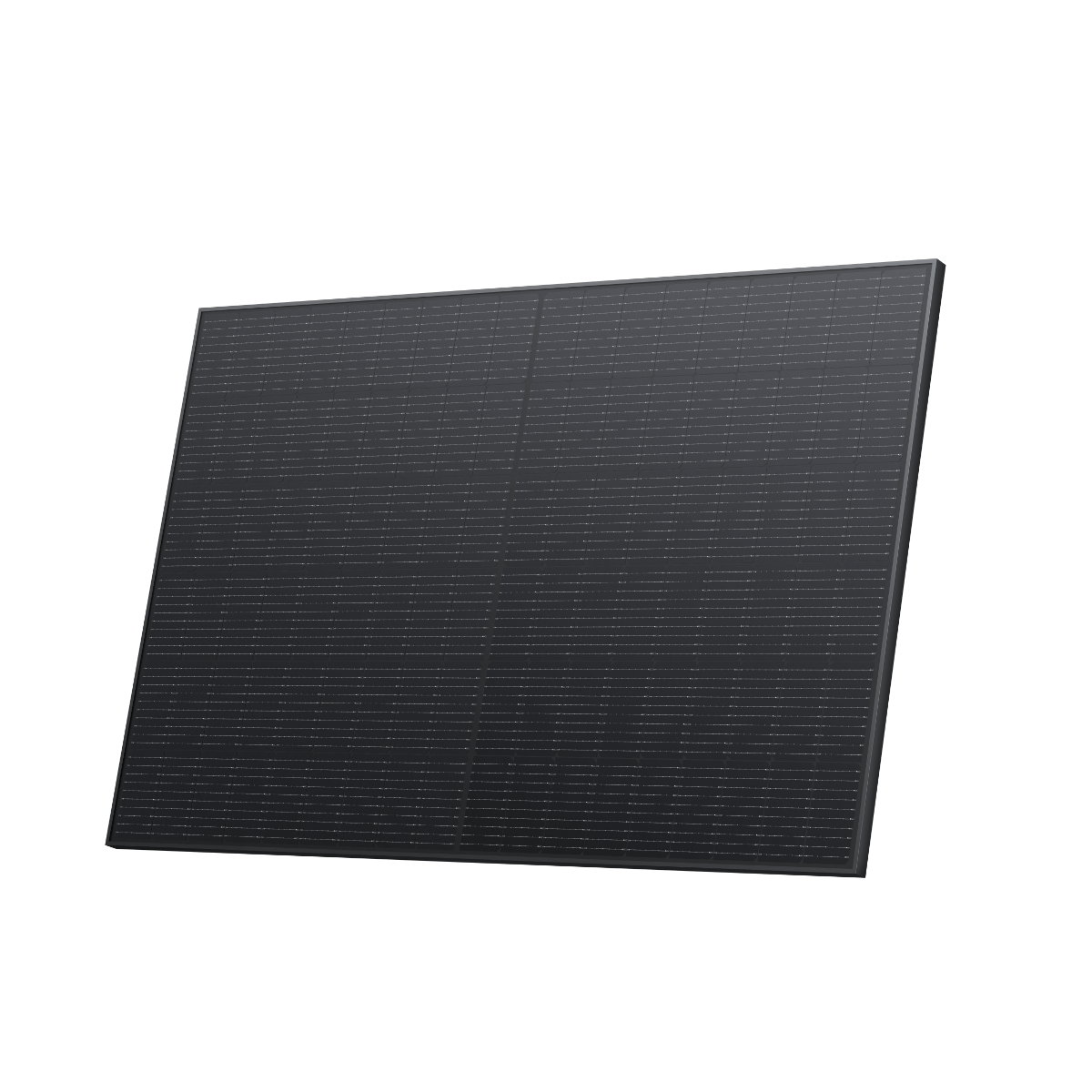

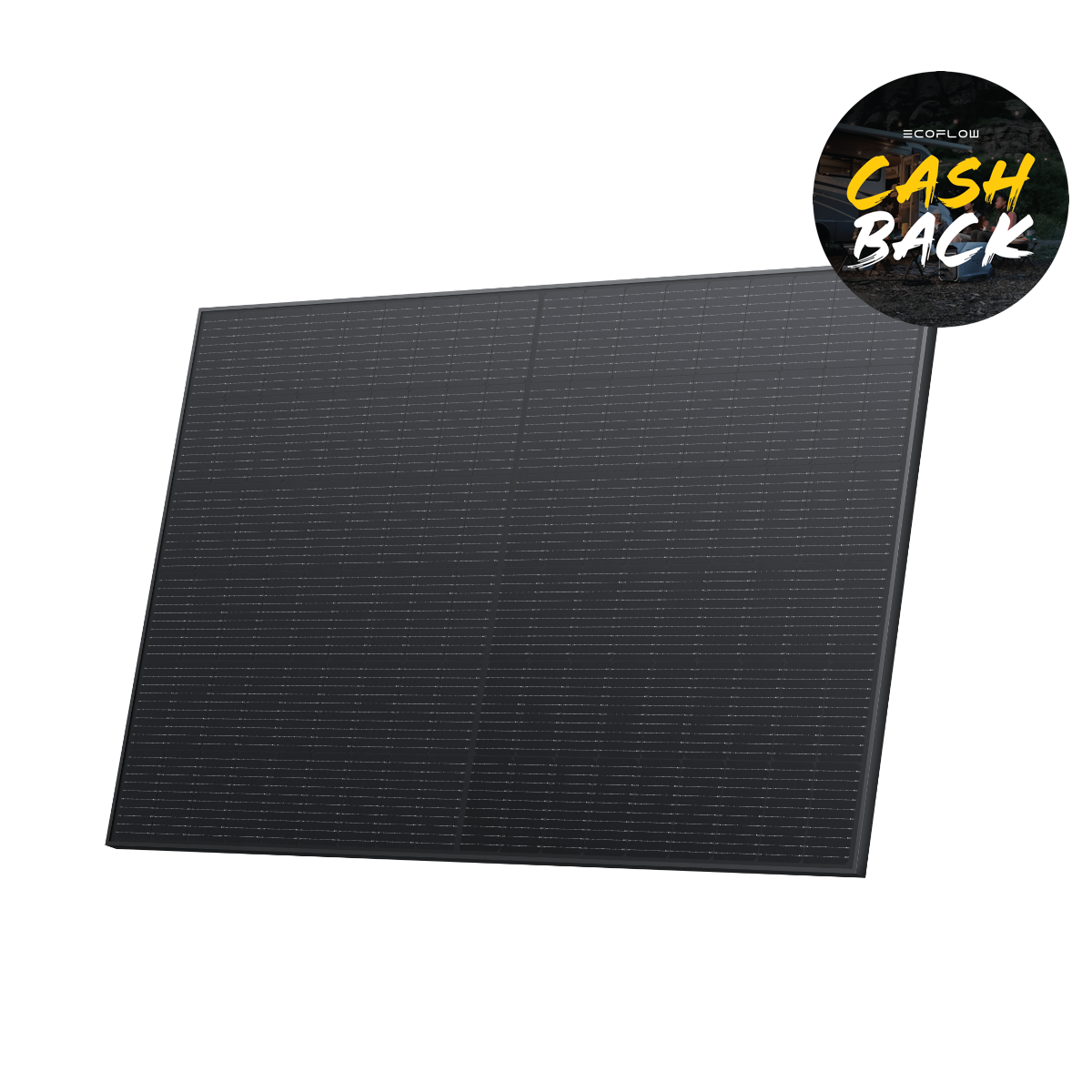

EcoFlow 2x 400W Rigid Solar Panel

    Description

    Our most densely cell-packed solar panel for increased solar output.

    Can be used either on or off-grid.

    Variety of compatible mounting accessories to fit any configuration.

    High Solar Energy Conversion

    Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.

    Waterproof & Durable

    The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.

    *Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
    *Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).

    Off-grid & On-grid Solution

    This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.

    Universally Compatible

    EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.

    What's in the box?


    1. 2×400W Rigid Solar Panel
    2. User Manual and Warranty Card
    *The solar to XT60 charging cable is included in EcoFlow portable solar panels.

    400W Rigid Solar Panel Specs:

    Short Circuit Current
    13.79A

    Open Circuit Voltage
    37.10V


    Connector Type
    Solar Connector

    Efficiency
    23%


    Cell Type
    Monocrystalline

    Rated Power
    400W


    Maximum Operating Voltage
    31.00V

    Maximum Operating Current
    12.90A


    Temperature Coefficient of Rated Power
    -0.38%/°C

    Temperature Coefficient of Open Circuit Voltage
    -0.35%/°C


    Temperature Coefficient of Short Circuit Current
    0.06%/°C

    Maximum Fuse Current
    25A


    Maximum System Voltage
    1500V DC (UL)




    Dimension (inch)
    67.8×44.6×1.38

    Net Weight (kg)
    21.8kg


    Dimension (cm)
    172.2×113.4×3.5

    Net weight (lbs)
    48.1lbs

    Product form

    Our most densely cell-packed solar panel for increased solar output. Can be used either on or off-grid. Variety of compatible... Read more

    Free pickup in our shop(s)

    SKU: EFR400WKIT
    Barcode: 4895251601450

    3 in stock

    $1,699.00

      Description

      Our most densely cell-packed solar panel for increased solar output.

      Can be used either on or off-grid.

      Variety of compatible mounting accessories to fit any configuration.

      High Solar Energy Conversion

      Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.

      Waterproof & Durable

      The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.

      *Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
      *Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).

      Off-grid & On-grid Solution

      This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.

      Universally Compatible

      EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.

      What's in the box?


      1. 2×400W Rigid Solar Panel
      2. User Manual and Warranty Card
      *The solar to XT60 charging cable is included in EcoFlow portable solar panels.

      400W Rigid Solar Panel Specs:

      Short Circuit Current
      13.79A

      Open Circuit Voltage
      37.10V


      Connector Type
      Solar Connector

      Efficiency
      23%


      Cell Type
      Monocrystalline

      Rated Power
      400W


      Maximum Operating Voltage
      31.00V

      Maximum Operating Current
      12.90A


      Temperature Coefficient of Rated Power
      -0.38%/°C

      Temperature Coefficient of Open Circuit Voltage
      -0.35%/°C


      Temperature Coefficient of Short Circuit Current
      0.06%/°C

      Maximum Fuse Current
      25A


      Maximum System Voltage
      1500V DC (UL)




      Dimension (inch)
      67.8×44.6×1.38

      Net Weight (kg)
      21.8kg


      Dimension (cm)
      172.2×113.4×3.5

      Net weight (lbs)
      48.1lbs
