Description

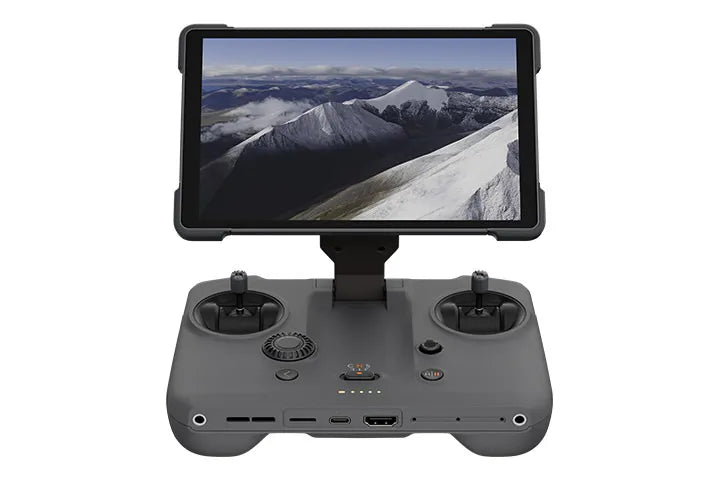

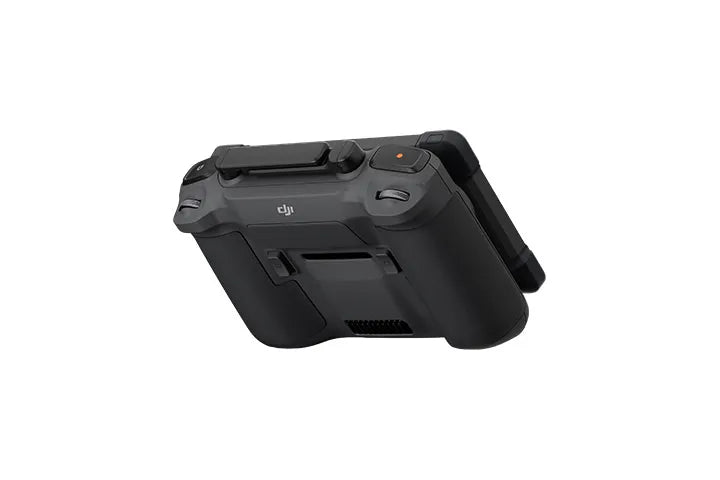

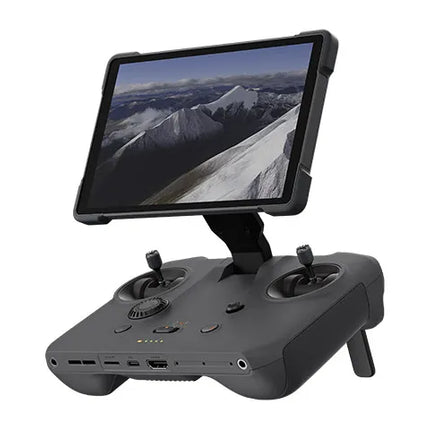

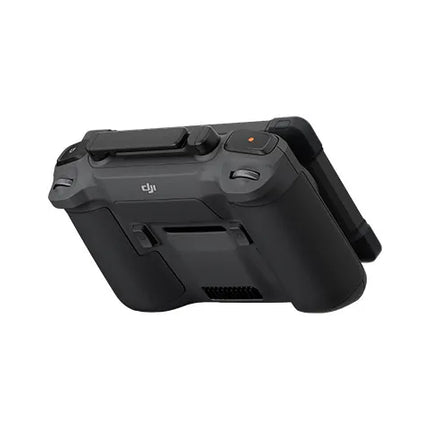

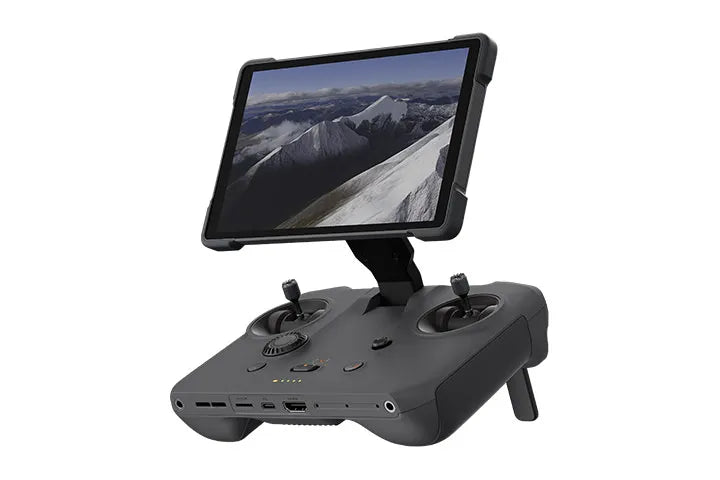

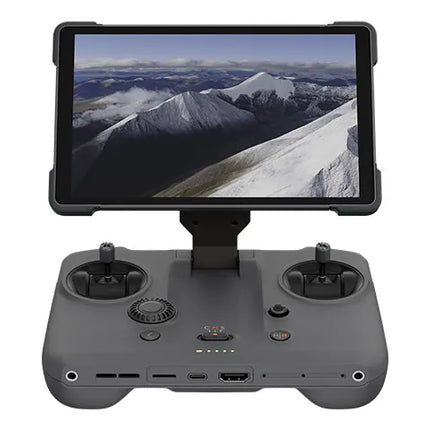

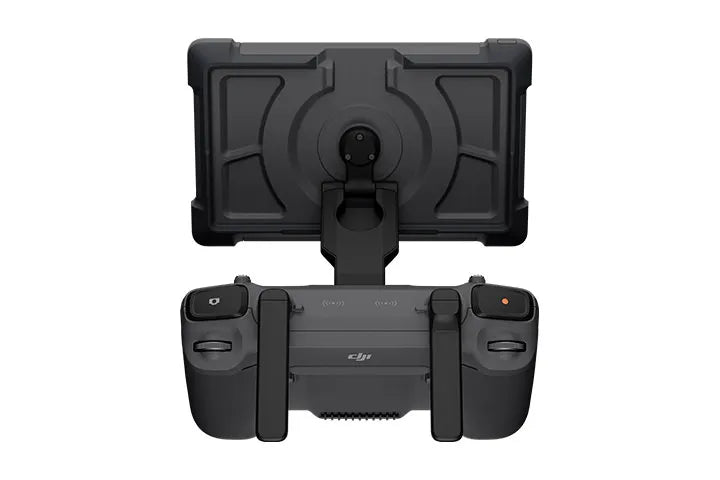

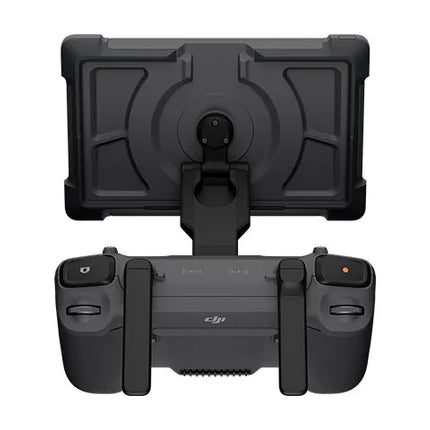

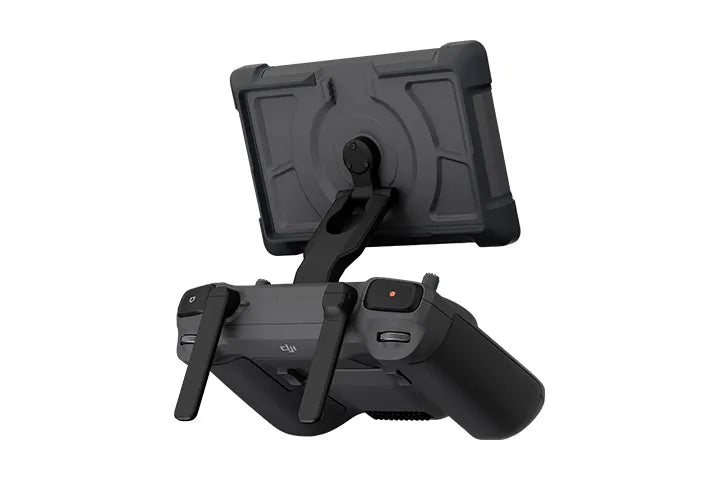

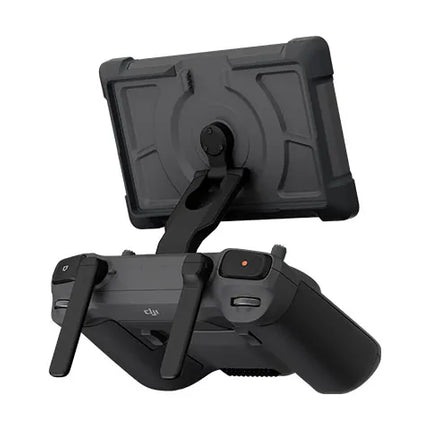

DJI RC Pro 2 is the ideal creative companion for the Mavic 4 Pro. Its ingenious integrated collapsible design eliminates control stick removal and makes powering on and off quick and easy. The controller also boasts a vibrant 7-inch high-bright Mini-LED screen, a built-in microphone, and direct compatibility with the DJI Mic series.
PRODUCT SPECIFICATIONS
VIDEO TRANSMISSION
Video Transmission System: O4/O4+
When connecting to drones other than Mavic 4 Pro, DJI RC Pro 2’s video transmission technology will switch to the video transmission specifications used by that drone’s technology, and the video transmission distance will also change accordingly.
Operating Frequency: 2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Antenna: Enterprise-Level Multibeam High-Gain Antennas, 2T4R
Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
WI-FI
Protocol: 802.11 a/b/g/n/ac/ax
Operating Frequency: 2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies according to country/region. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
BLUETOOTH
Protocol: Bluetooth 5.2
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
SCREEN
Resolution: 1920×1200
Dimensions: 7.02 inches
Frame Rate: 60fps
Brightness: 2000 nits (@APL 10%)
1600 nits (sustained brightness)
Touch Control: 10-point multi-touch
GENERAL SPECS
Battery: 18650 Li-ion, 44.64Wh (7.2V, 3100mAh×2)
Charging Type: Supports PD Protocol and up to 65W fast charge (20V/3.25A)
Charging Time: 1.5 hours (with DJI 65W Portable Charger)
Operating Time: 4 hours
Tested in a 25° C (77° F) laboratory environment with DJI RC Pro 2 connected to DJI Mavic 4 Pro in normal flight status and recording 1080p/60fps video.
Video Output Port: HDMI port
Operating Temperature: -10° to 40°C (14° to 104° F)
Storage Temperature Range: Less than one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Supported Aircraft Models: DJI Mavic 4 Pro, DJI Mini 4 Pro, DJI Air 3S, DJI Air 3
Pay attention to the official updates for future model compatibility.
GNSS: GPS + BeiDou + Galileo
Dimensions: Folded: 182×139×61 mm (L×W×H)
Weight: Approx. 750 g
Model: RC520
STORAGE
Internal Storage Capacity: 128 GB + expandable storage (with microSD card)
The actual available storage space is approximately 100 GB.
Supported SD Cards: UHS-I Speed Grade 3 rating microSD card or above.
Recommended microSD Cards: Lexar 1066x 64GB U3 A2 V30 microSDXC
Lexar 1066x 128GB U3 A2 V30 microSDXC
Lexar 1066x 256GB U3 A2 V30 microSDXC
Lexar 1066x 512GB U3 A2 V30 microSDXC
Kingston Canvas Go Plus 64GB U3 A2 V30 microSDXC
Kingston Canvas Go Plus 128GB U3 A2 V30 microSDXC
Kingston Canvas Go Plus 256GB U3 A2 V30 microSDXC
Kingston Canvas Go Plus 512GB U3 A2 V30 microSDXC
IN THE BOX
DJI RC Pro 2 × 1
