Weight: Approx. 1.25 kg
Dimensions: 235×93×83.5 mm (L×W×H)
Ports/cables:

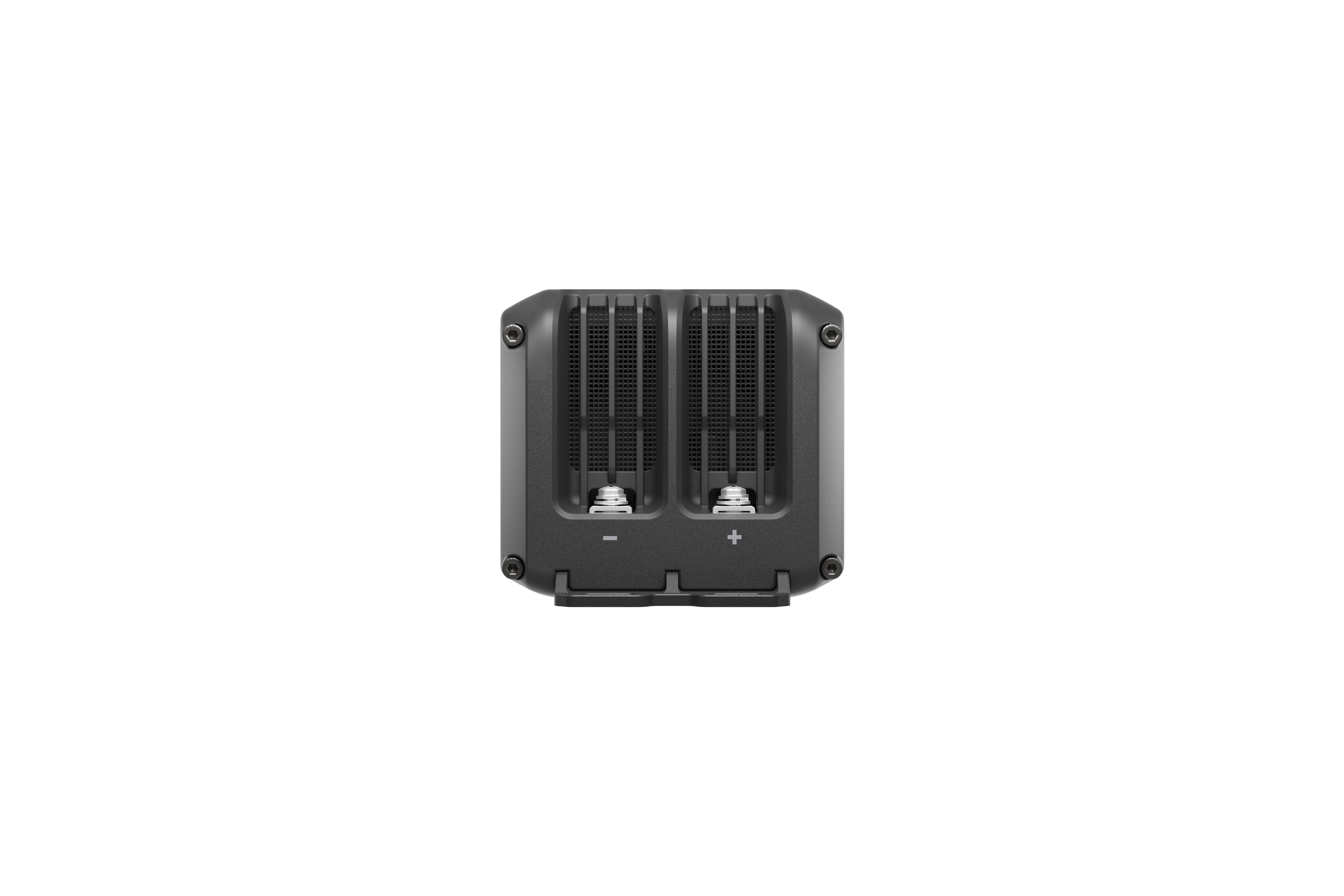

Car Charging Terminals (Positive Terminal and Negative Terminal) × 1 pair
SDC Cable × 1
Input:
Car Charging Terminals (Input): 12-45 V, max current: 70 A, max power: 1000 W*
SDC Port (Output): 40-58.4 V
* Measured at an ambient temperature of 25° C (77° F) when connected to a 12V car system with an input of 14.3 V and 70 A.
Output (Power Supply, Car Charging):
SDC Port (Input): 40-58.4 V
Car Charging Terminals (Output):
12V Car System: 11-14.4 V, 1000W max power*
24V Car System: 22-28.8 V, 1000W max power*
* At an ambient temperature of 25° C (77° F), it can recharge DJI Power 1000/2000/1000 V2 at a maximum output power of 1000 W via the car's alternator.
Charging Temperature: 0° to 45° C (32° to 113° F)
Power Supply Temperature: -10° to 45° C (14° to 113° F)
Car Charging Cable Length: 5 m
