Description
The curved base fits snugly against the helmet and adheres firmly to stay in place. Paired with a high-strength carbon fiber straight rod, it enables a distinctive third-person tracking perspective.
Tips
1. When attaching the base, press firmly for more than 30 seconds, and let it sit for 30 minutes to ensure adhesion.
2. This product is intended for one-time use on clean, curved surfaces only. If the surface is not sufficiently smooth, apply the included adhesive pad first, then attach the base.
3. The ideal application temperature is between -10°C and 40°C (14° F to 104° F).
4. After wearing, be sure to tighten the locking nut to prevent shaking or displacement due to significant bumps during movement.
5. While capturing 360° shots, The bottom of the camera facing the helmet may be closer than the minimum required stitching distance. Adjust the angle and composition to avoid close-range stitching flaws at the bottom.
Compatibility
Osmo 360
PRODUCT SPECIFICATIONS
Osmo Curved Adhesive Base Max
Dimensions: Approx. 50 × 55 × 24 mm (L × W × H)
Weight: Approx. 17 g
Hex Key
Dimensions: Approx. 53 × 97 × 16 mm (L × W × H)
Weight: Approx. 8 g
28cm Carbon Fiber Straight Rod
Dimensions: Approx. 291 × 17 × 23 mm (L × W × H)
Weight: Approx. 45 g
Osmo Locking Screw
Dimensions: Approx. 13.3 × 23 × 55.6 mm (L × W × H)
Weight: Approx. 12 g
1/4'' Thread to Two-Prong Adapter
Dimensions: Approx. 32×18×18 mm (L×W×H)
Weight: Approx. 9 g
Osmo Action Quick-Release Adapter Mount
Dimensions: Approx. 41×21×34 mm (L×W×H)
Weight: 16 g

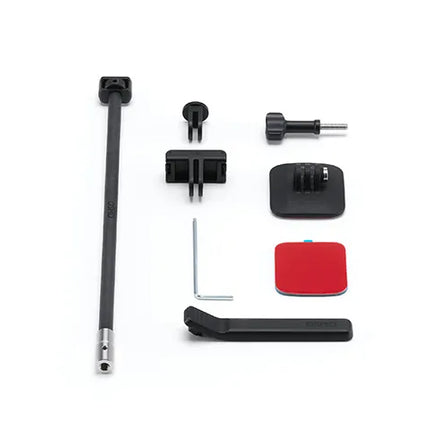

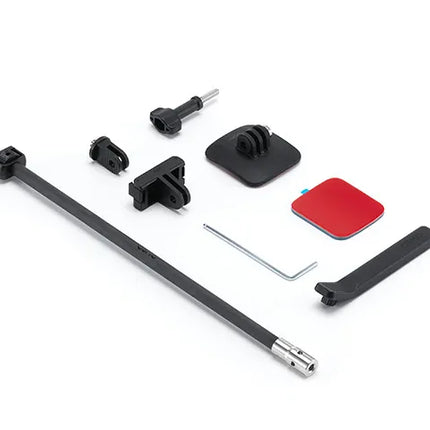

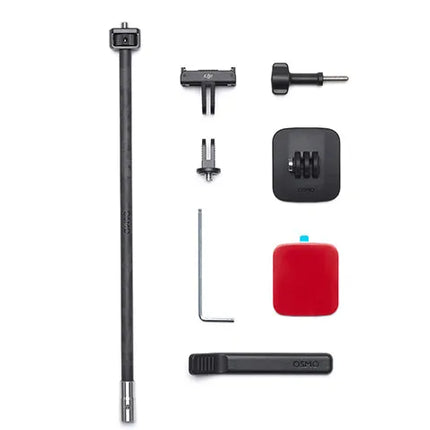

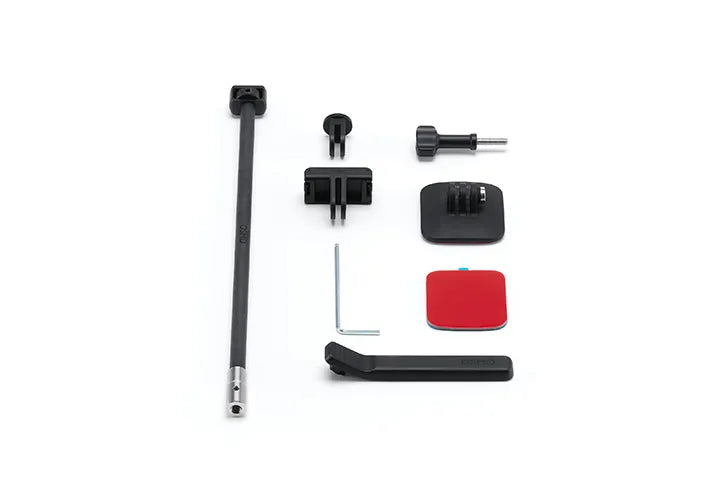

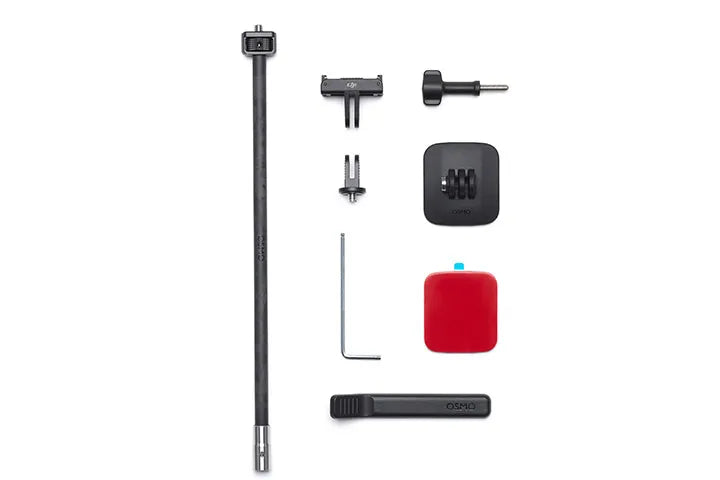

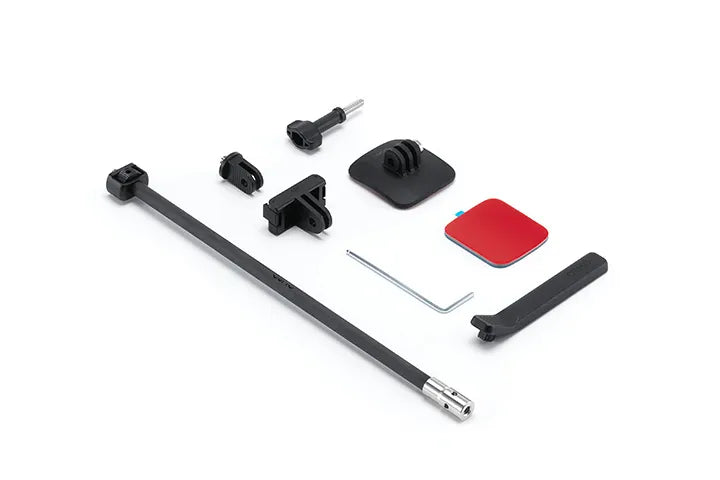

IN THE BOX
Osmo Curved Adhesive Base Max × 1
28 cm Carbon Fiber Straight Rod × 1
1/4" Thread to Dual Prong Adapter × 1
Osmo Action Quick-Release Adapter Mount × 1
Osmo Locking Screw × 1
Screw Locking Wrench × 1
Hex Key × 1
