Description
|
Immersive Flight Experience
|
Ready to Use
|
1080p Ultra-Wide Screen
|
|
DJI O4 Video Transmission
|
AR Cursor
|
2.7-Hour Max Operating Time [1]
|
EMBRACE THE PILOT'S PERSPECTIVE
When paired with DJI Neo/DJI Avata 2 and DJI RC Motion 3, [2] DJI Goggles N3 lets you soar through the skies and enjoy an immersive flight experience, as if you were in the pilot seat. Activate the head tracking function to control Neo/Avata 2 with head or wrist movements, achieving seamless synergy between you and your drone.
Easily unlock the aerial acrobatics of Neo, and let Goggles N3 immerse you in the thrilling experience of 360° front/back flips, left/right rolls, and 180° drifts.
Unlock the Easy ACRO feature - Power Loop with Avata 2 with a single push (no need for advanced Manual mode controls with the DJI FPV Remote Controller series), and experience adrenaline-pumping excitement with DJI Goggles N3.
READY TO USE, STREAMLINED CREATION
ROOMY AND EYEWEAR-FRIENDLY DESIGN
The roomy interior comfortably accommodates glasses, without needing diopter adjustments or lens installations. Simply put them on, and you can take off right away.

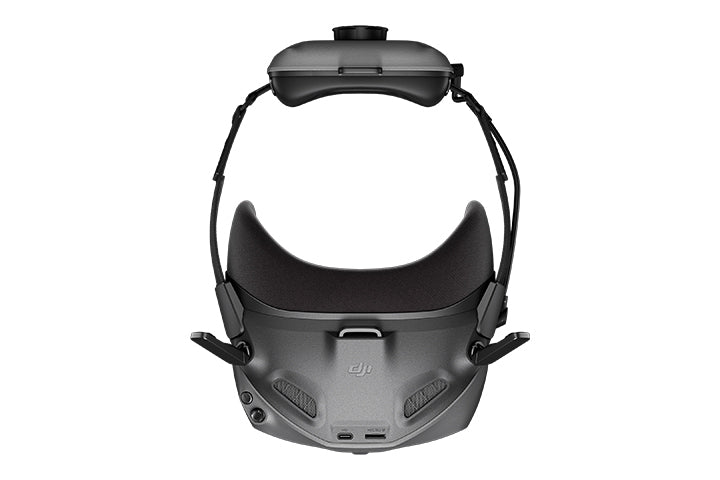

INTEGRATED DESIGN

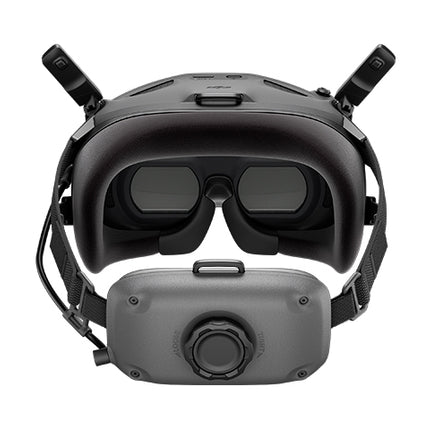

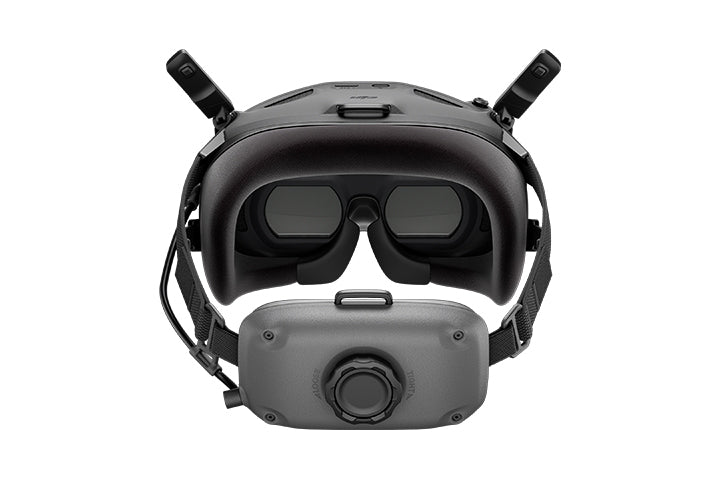

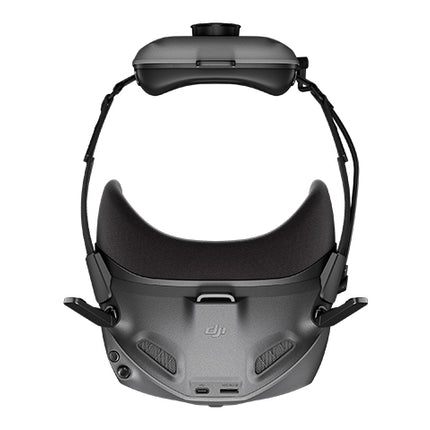

The integrated headband and battery design balance the overall weight of the goggles, ensuring no pressure on your face for a comfortable fit.
ONE-TAP DEFOGGING
When fog builds up on the surface of the lenses, the defogging function effectively controls moisture by accelerating the internal fan speed to swiftly circulate air, making it ideal for changing temperatures and high-humidity conditions.
1080P ULTRA-WIDE SCREEN
DJI Goggles N3 has a full 1080p 60Hz LCD screen and an impressive 54° FOV. Enjoy stunning visuals with minimal dizziness as impactful aerial scenes come alive before your eyes.
O4 FHD VIDEO TRANSMISSION
ULTRA-LOW LATENCY, STABLE VIDEO TRANSMISSION
The advanced DJI O4 digital video transmission system adopts a 2T4R antenna design, offering exceptional anti-interference performance. Enjoy 1080p/60fps live feeds with a minimum latency of 31 ms [3] and a transmission range of up to 13 km. [4] The goggles automatically select the optimal frequency band between 2.4 GHz and 5.8 GHz [5] based on the environment. This ensures stable transmission so you can experience flying in real-time and get a buttery-smooth live view.
With a max video transmission bitrate of 60 Mbps [6] and SyncSmooth technology, video transmission from the skies to the ground is optimized, providing a smooth live view even when flying at a high speed.
SMOOTH FLIGHT, POWERFUL OPERATING TIME
AR CURSOR
DJI RC Motion 3 [2] can be used as an AR cursor before the aircraft takes off, or when the aircraft is braking or hovering. This allows you to effortlessly activate functions and adjust settings without taking your hands off RC Motion 3.
REAL-TIME LIVE FEED SHARING
Connect DJI Goggles N3 to your smartphone using a USB-C cable, and you can display a secondary live feed through the DJI Fly app. This allows others to check the live view in real-time, making sharing and teaching convenient and efficient.
PANORAMA VIDEO PLAYBACK
Import panoramic videos onto a microSD card, and you can watch them through DJI Goggles N3. Enjoy a cinematic viewing experience in everyday life.
2.7-HOUR OPERATING TIME
A fully charged DJI Goggles N3 can last through the use of up to 13 DJI Neo batteries. [7] With a powerful 2.7-hour operating time, [1] you can unleash your creative passion and potential to the fullest.
DJI GOGGLES SERIES COMPARISON
|
DJI Goggles N3
|
DJI Goggles 3
|
|
One 1080p Ultra-Wide LCD Screen
FOV: 54°
|
Dual Micro-OLED Screens
FOV: 44°
|
|
Ready to Use With Glasses On
|
Adjustable Diopters
-6.0 D to +2.0 D
|
|
-
|
Real View PiP
|
|
USB-C Wired
Live Feed Sharing
|
Wi-Fi Wireless/USB-C Wired
Live Feed Sharing
|
|
Integrated Battery Design
2.7-Hour Max Operating Time [1]
|
Integrated Battery Design
3-Hour Max Operating Time [8]
|
|
DJI O4 Video Transmission
Max Transmission Bitrate: 60 Mbps (2) [6]
|
DJI O4 Video Transmission
Max Transmission Bitrate: 60 Mbps (Avata 2) [9]
|
|
Compatible Models
DJI Neo
DJI Avata 2
|
Compatible Models
DJI Neo
DJI Avata 2
DJI Air 3
DJI Mini 4 Pro
|
Notes
- The 2.7-hour max operating time was measured at an ambient temperature of 25° C, screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
2. DJI Neo, DJI Avata 2, and DJI RC Motion 3 are sold separately.
3. Measured when paired with DJI Avata 2, using 1080p/100fps video transmission, and in an open outdoor environment without interference. The 58ms minimum latency was measured when paired with DJI Neo, using 1080p/100fps video transmission, and in an open outdoor environment without interference.
4. Measured when paired with DJI Avata 2, compliant with FCC standards, in an open outdoor environment without interference, and subject to the aircraft's max flight distance. Under the same test conditions, when paired with DJI Neo, the transmission distance is 10 km (FCC) and 6 km (CE/SRRC/MIC).
5. The 5.8 GHz frequency band is currently banned in certain countries/regions. Always check and strictly abide by local laws and regulations before flying.
6. Measured when paired with DJI Avata 2 in an open environment without interference. The video transmission bitrate varies by operating environments. Under the same test conditions, the max bitrate is 50 Mbps when paired with DJI Neo.
7. Measured with DJI Neo paired with DJI RC Motion 3 during steady flight at constant speed in Normal mode.
8. The 3-hour max operating time was measured at an ambient temperature of 25° C, screen brightness at 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
9. Measured when paired with DJI Avata 2 in an open environment without interference. The video transmission bitrate varies by operating environments.
PRODUCT SPECIFICATIONS

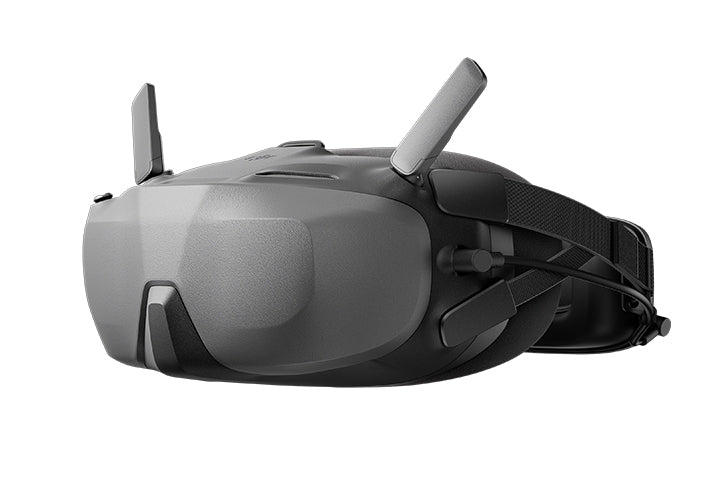

GOGGLES
Model: TKGSM
Weight: Approx. 536 g (battery and headband included)
349 g (battery and headband excluded)
Dimensions: With antennas folded: 193×163×103 mm (L×W×H)
With antennas unfolded: 206×163×132 mm (L×W×H)
Screen Size (single screen): 3.5 inches
Resolution (single screen): 1920×1080
Refresh Rate: Up to 60 Hz
Interpupillary Distance Range: No interpupillary distance adjustment required, ready to use immediately.
Diopter Adjustment Range: Diopter adjustment not supported, can be used with personal glasses.
FOV (single screen): 54°
Video Recording Format: MOV (video format: H.264)
Supported Video and Audio Playback Formats: MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
Panoramic Video: Spherical 2D panoramic videos
Max Video Specification: 4K/60fps
Real View Display: Real View not supported.
Operating Temperature: -10° to 40° C (14° to 104° F)
Power Input: Built-in battery
Supported SD Cards: microSD (up to 512 GB)
Recommended microSD Cards: Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
VIDEO TRANSMISSION
Video Transmission: O4
Operating Frequency: 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP): 2.4 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
< 21 dBm (FCC)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Latency: With DJI Avata 2:
1080p/100fps video transmission quality: Minimum 31 ms
With DJI Neo:
1080p/60fps video transmission quality: Minimum 58 ms
Measured in an open, outdoor environment without interference or obstructions. Actual data varies with different drone models.
Max Transmission Distance: With DJI Avata 2:
13 km (FCC)
10 km (CE/SRRC/MIC)
With DJI Neo:
10 km (FCC)
6 km (CE/SRRC/MIC)
Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the drone's max flight distance. Always pay attention to RTH reminders on the live view during your flight.
Max Video Bitrate: With DJI Avata 2: 60 Mbps
With DJI Neo: 50 Mbps
Measured in an open, outdoor environment without interference or obstructions. Actual data varies with the operating environment.
GFSK
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): < 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
BATTERY
Dimensions: 120×71×44 mm (L×W×H)
Capacity: 2450 mAh
Voltage: 6.33-8.4 V
Type: Li-ion
Chemical System: LiNiMnCoO2
Energy: 17.28 Wh
Charging Temperature: 5° to 45° C (41° to 113° F)
Max Charging Power: 5 V/3 A (charging when powered off)
Runtime: 2.7 hours
The 2.7-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
IN THE BOX
DJI Goggles N3 × 1
DJI Goggles N3 Foam Padding × 1
DJI Goggles N3 Top Headband × 1
Documents (Quick Start Guide, Safety Guidelines, and DJI Logo Stickers) × 1
