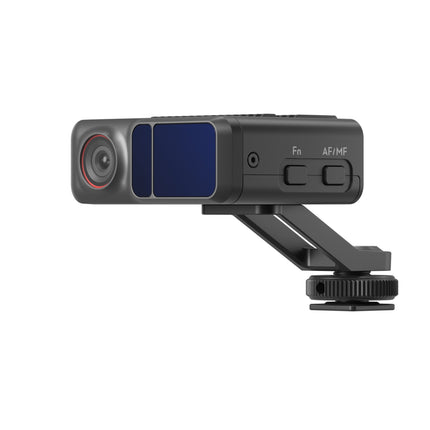

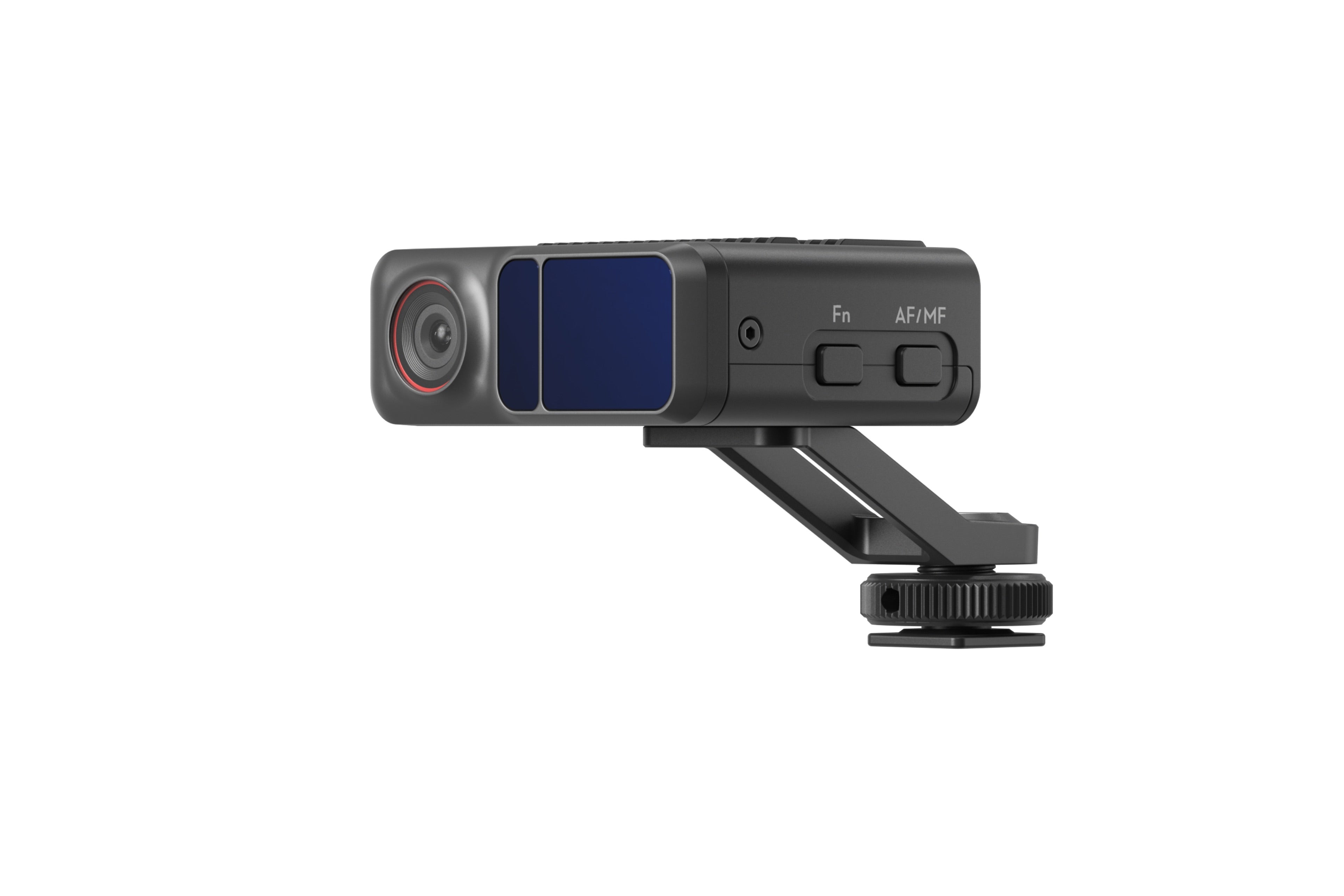

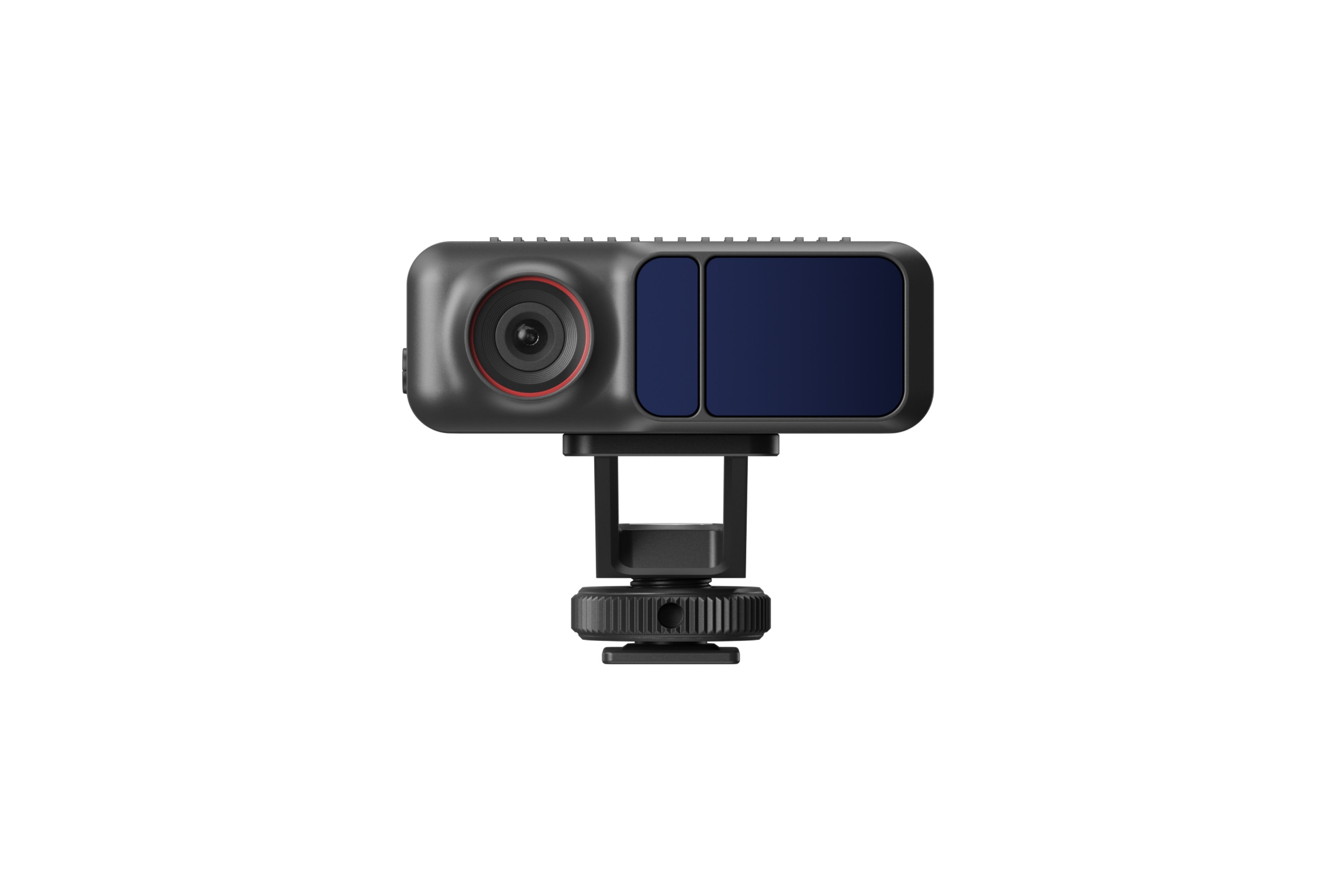

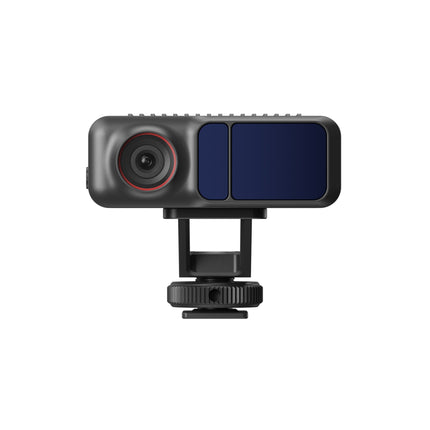

DJI Focus Pro LiDAR

    Description

    The LiDAR boasts 76,800 ranging points, a leap of 77% in quantity, sharpening human-subject edge detection while effectively reducing focus hunting. The max focus distance is 20 meters, and the human-subject focus distance is approximately three times that of the previous generation, effortlessly‌ handling long-distance focusing with telephoto lenses. The 70° FOV is beneficial for edge compositions and close-up shots, providing a larger framing space. The LiDAR refresh rate of 30 Hz allows for faster subject information collection, ensuring more confident focusing on moving subjects. When paired with the DJI Focus Pro Motor, the LiDAR can enable autofocus for manual lenses that have been calibrated.

    Tips

    When the stabilizer's screen is in 1x mode, the LiDAR's ToF sensor operates within a 10-meter sensing range by default. To extend to a 20-meter focus distance, you can tap the + icon on the screen to enable 2x zoom display.

    In The Box

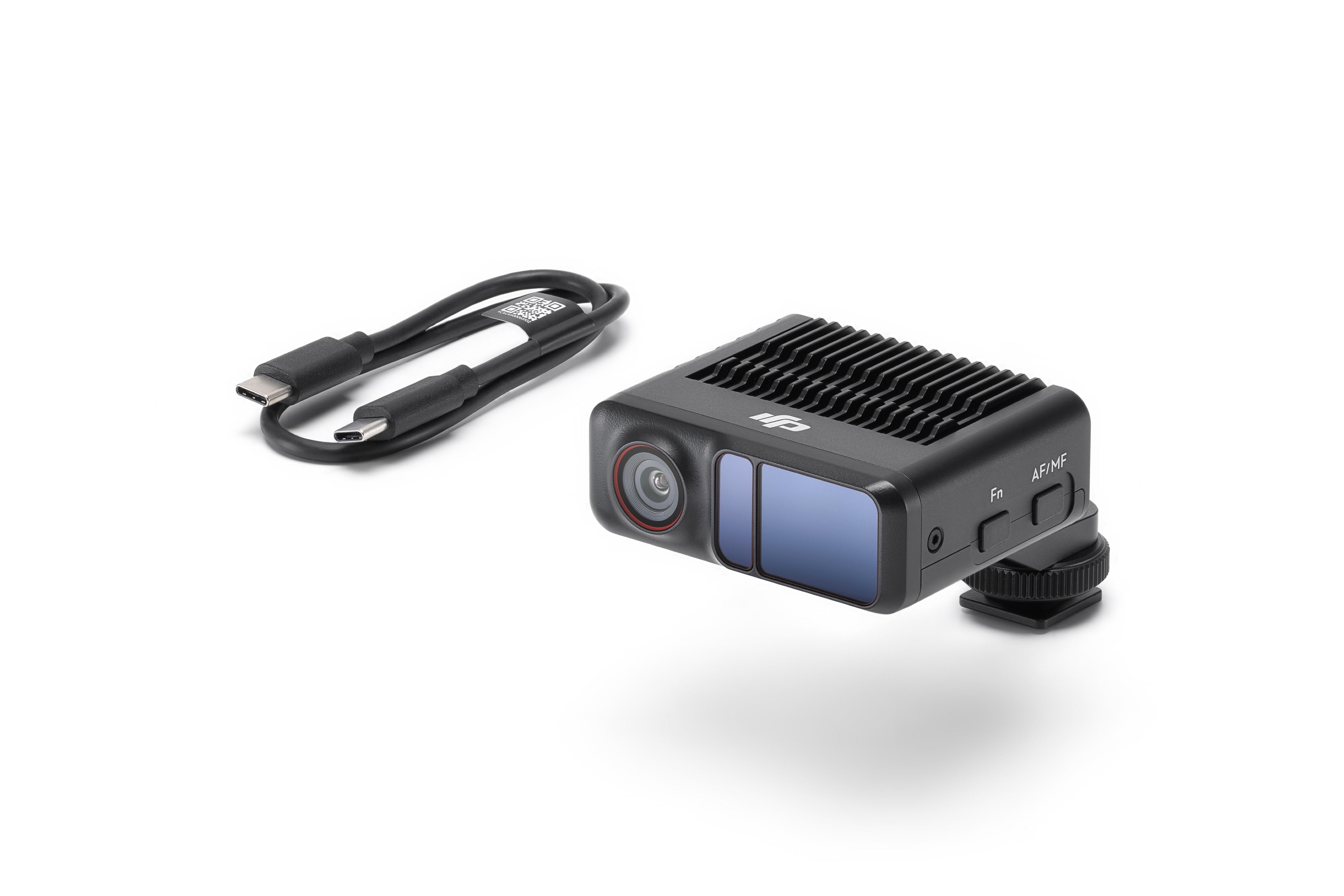

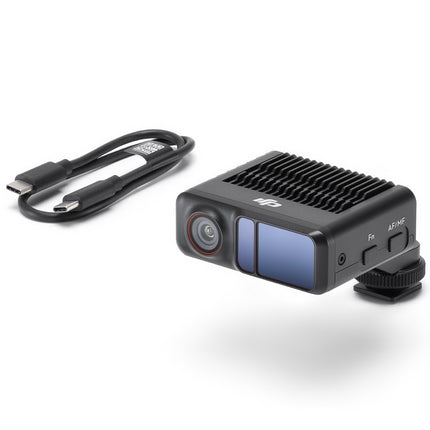

    Focus Pro LiDAR × 1

    Multi-Camera Control Cable (USB-C, 30 cm) × 1

    Specifications

    Ranging Points: 76,800

    Sensing Range: 0.5-20 m

    FOV:

    Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)

    Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)

    Frame Rate: 30fps

    Equivalent Focal Length: 30 mm (wide-angle mode)

    Ranging Accuracy: ±1% to 3% (affected by the distance)

    ‌Power Consumption: Average approx. 6.3 W, max 6.8 W

    Input Voltage: 6.6-17.2 V

    Operating Temperature: -20° to 45° C (-4° to 113° F)

    Main Body Dimensions: 68×25×57 mm (L×W×H)

    Weight: 140 g

    Compatibility

    DJI RS 4 Pro

    DJI RS 3 Pro

    DJI Focus Pro Grip

    Product form

    The LiDAR boasts 76,800 ranging points, a leap of 77% in quantity, sharpening human-subject edge detection while effectively reducing focus... Read more

    • Free Shipping on orders over $500

    SKU: CP.RN.00000359
    Barcode: 190021106208

    Out of stock

    $1,009.00

      Description

      The LiDAR boasts 76,800 ranging points, a leap of 77% in quantity, sharpening human-subject edge detection while effectively reducing focus hunting. The max focus distance is 20 meters, and the human-subject focus distance is approximately three times that of the previous generation, effortlessly‌ handling long-distance focusing with telephoto lenses. The 70° FOV is beneficial for edge compositions and close-up shots, providing a larger framing space. The LiDAR refresh rate of 30 Hz allows for faster subject information collection, ensuring more confident focusing on moving subjects. When paired with the DJI Focus Pro Motor, the LiDAR can enable autofocus for manual lenses that have been calibrated.

      Tips

      When the stabilizer's screen is in 1x mode, the LiDAR's ToF sensor operates within a 10-meter sensing range by default. To extend to a 20-meter focus distance, you can tap the + icon on the screen to enable 2x zoom display.

      In The Box

      Focus Pro LiDAR × 1

      Multi-Camera Control Cable (USB-C, 30 cm) × 1

      Specifications

      Ranging Points: 76,800

      Sensing Range: 0.5-20 m

      FOV:

      Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)

      Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)

      Frame Rate: 30fps

      Equivalent Focal Length: 30 mm (wide-angle mode)

      Ranging Accuracy: ±1% to 3% (affected by the distance)

      ‌Power Consumption: Average approx. 6.3 W, max 6.8 W

      Input Voltage: 6.6-17.2 V

      Operating Temperature: -20° to 45° C (-4° to 113° F)

      Main Body Dimensions: 68×25×57 mm (L×W×H)

      Weight: 140 g

      Compatibility

      DJI RS 4 Pro

      DJI RS 3 Pro

      DJI Focus Pro Grip
