Description
Chasing X: The Ultimate Evolution of Industrial Grade ROV
Engineered for the Toughest Environments
We proudly introduce the Chasing X, a next-generation underwater robot (ROV), integrated with cutting-edge technologies to deliver unmatched performance and reliability for deep-sea operations. With comprehensive upgrades in power, maneuverability, shooting flexibility, compatibility, diving depth, endurance, and maintenance, the Chasing X sets a new standard in underwater exploration and inspection.
Prime Power
4.5-Knot Thrust: Achieves stable performance even in harsh underwater environments, minimizing equipment damage and reducing work interruptions caused by strong water flows. Superior Power: offers enhanced features and capabilities compared to the M2 PRO MAX with enhanced power, enabling better adaptability to complex underwater conditions.
360° Rotation and Fast Response
Octo-Thruster Design: Allows full 360° rotation and rapid response, significantly boosting operational efficiency and flexibility. Advanced Power Layout: Provides superior maneuverability and operational range, outperforming the M2 PRO MAX.
Wider Shooting Angle
Electronic Pan-Tilt-Zoom System: Captures critical details with a wide viewing angle and one-touch flip functionality. Enhanced Shooting Flexibility: offers enhanced features and capabilities compared to the M2 PRO MAX in versatility, ensuring high-quality imaging in complex underwater environments.
Support for Customized Development
Open SDK: Offers custom development capabilities and compatibility with various accessories to meet diverse operational needs. Enhanced Flexibility: Ideal for customers requiring tailored solutions.
Extreme Diving Depth
350m Maximum Depth: Extends the range of applications to deep-sea exploration and professional underwater missions. Expanded Capabilities: offers enhanced features and capabilities compared to the M2 PRO MAX in diving depth, making it ideal for scientific research and exploration.
Continuous Uninterrupted Operation
Dual Power Supply: Features a standard 1000Wh lithium battery with an optional shore power supply, ensuring prolonged underwater operation.
Superior Endurance: offers enhanced features and capabilities compared to the M2 PRO MAX, perfect for long-duration, high-intensity tasks.
Low Maintenance Costs
Magnetic Coupling Thrusters: High sealing, anti-sand jamming, eco-friendly, and energy-efficient design reduces maintenance costs and ensures operational safety.
Applications
The Chasing X is designed for the most challenging underwater scenarios, including marine environments and rapid rivers. Key applications include:
Emergency Rescue
Water Conservancy & Hydropower
Hull & Dock Inspection
Aquaculture
Pipeline Inspection
Offshore Wind Power
Underwater Archaeology
Scientific Research & Environmental Protection
SPECIFICATIONS:
ROV
Size
810 × 636 × 453 mm
Maximum Depth
1148 ft / 350 m
Max Speed
Forward 4.5 knots, Lateral 2 knots
Max Flow Resistance
4.5 knots
Runtime
Up to 2 hours (normal operation)
Battery
1000 Wh
Power Supply
Battery / C-SPSS (Optional)
Operating Environment
Underwater
Operating Temperature
–10°C to 45°C
WSRC
Size
292 × 156 × 79 mm
Weight
1.3 kg
Battery Capacity
7000 mAh
Runtime
≥ 6 hours (environment dependent)
Wireless
Wi-Fi supported
HDMI
Supported
Waterproof Rating
IP65
Camera
CMOS
1/1.8"
Lens
F2.2
Focus Range
0.5 m
Field of View
160°
Maximum Image Resolution
8 Megapixel
Image Format
JPEG / DNG
Video
UHD: 3840 × 2160, 4K / 30 FPS
FHD: 1920 × 1080, 30 / 60 / 120 FPS
Slow Motion
720p: 6× (180 FPS)
1080p: 4× (120 FPS)
Time Lapse
4K / 1080p supported
Video Maximum Stream
60 Mbps
Video Format
MP4
SD Card
Standard 128 GB, supports up to 1 TB (removable)
ePTZ
CMOS
1/1.8"
Lens
F2.0
Focusing Distance
0.5 m
FOV
220°
Max Resolution
8 Megapixel
Format
Panoramic JPEG
Video Stream
60 Mbps
Video Format
Panoramic MP4
Video
UHD: 3840 × 1920, 25 FPS
SD Card
Standard 128 GB, supports up to 1 TB (removable)
Sensor
IMU
Axis gyro / Accelerometer / Compass
Depth Sensor
Accuracy < ±0.25 m
Temperature Sensor
Accuracy < ±2°C
LED Lights
Brightness
2 × 6000 lumen
Dimming
Stepless (adjustable via app)
Color Temperature
5000K–6000K
CRI
90
Charger
Power
50.4 V / 8 A
ROV Charging Time
2.5 hours
Remote Controller Charging Time
2 hours

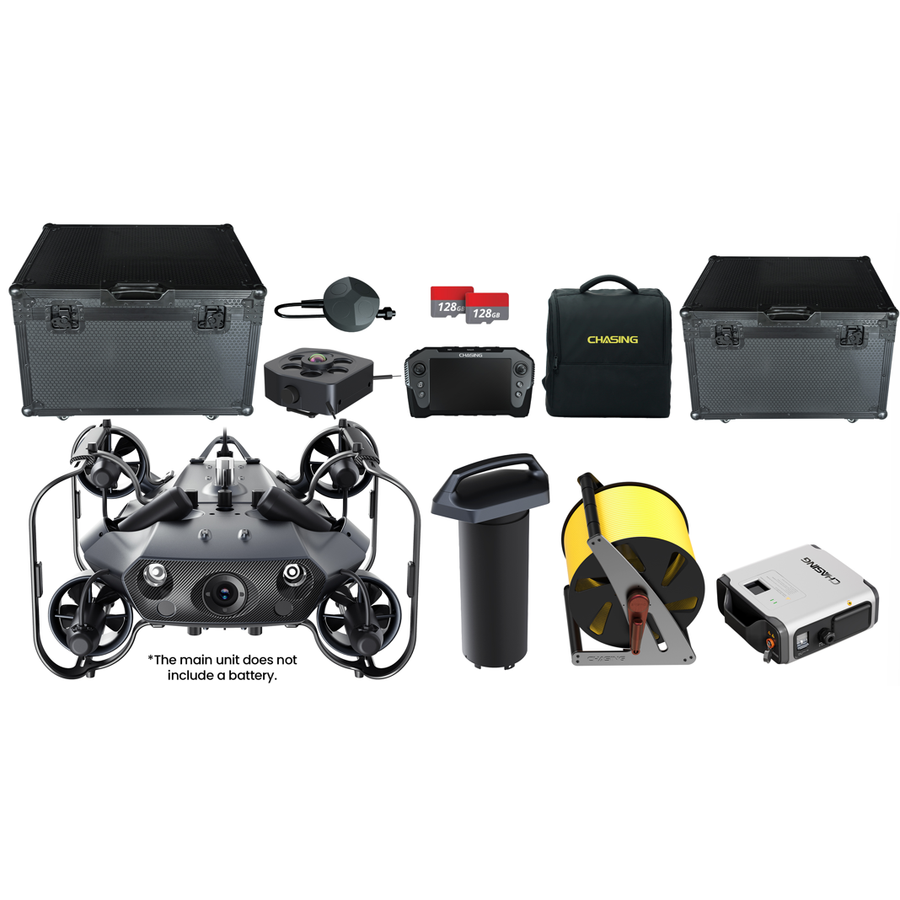

In The Box
Chasing X-Professional Set:
- Chasing X x1
- Waterproof RC x1
- Water linked DVL A50 x1
- Electronic PTZ x1
- Chaisng Shore-based Power Supply System (C-SPSS) x1
- Hard case x1
- Accessory Backpack x1
