Description

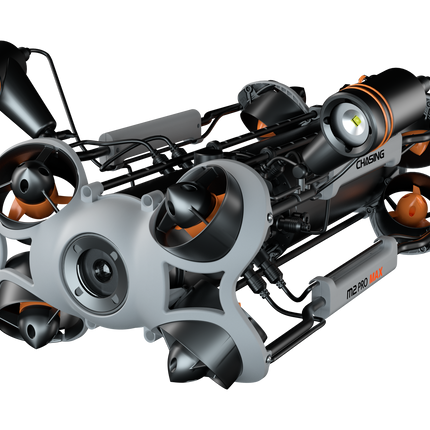

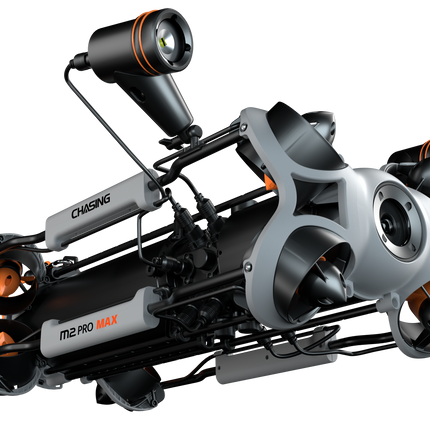

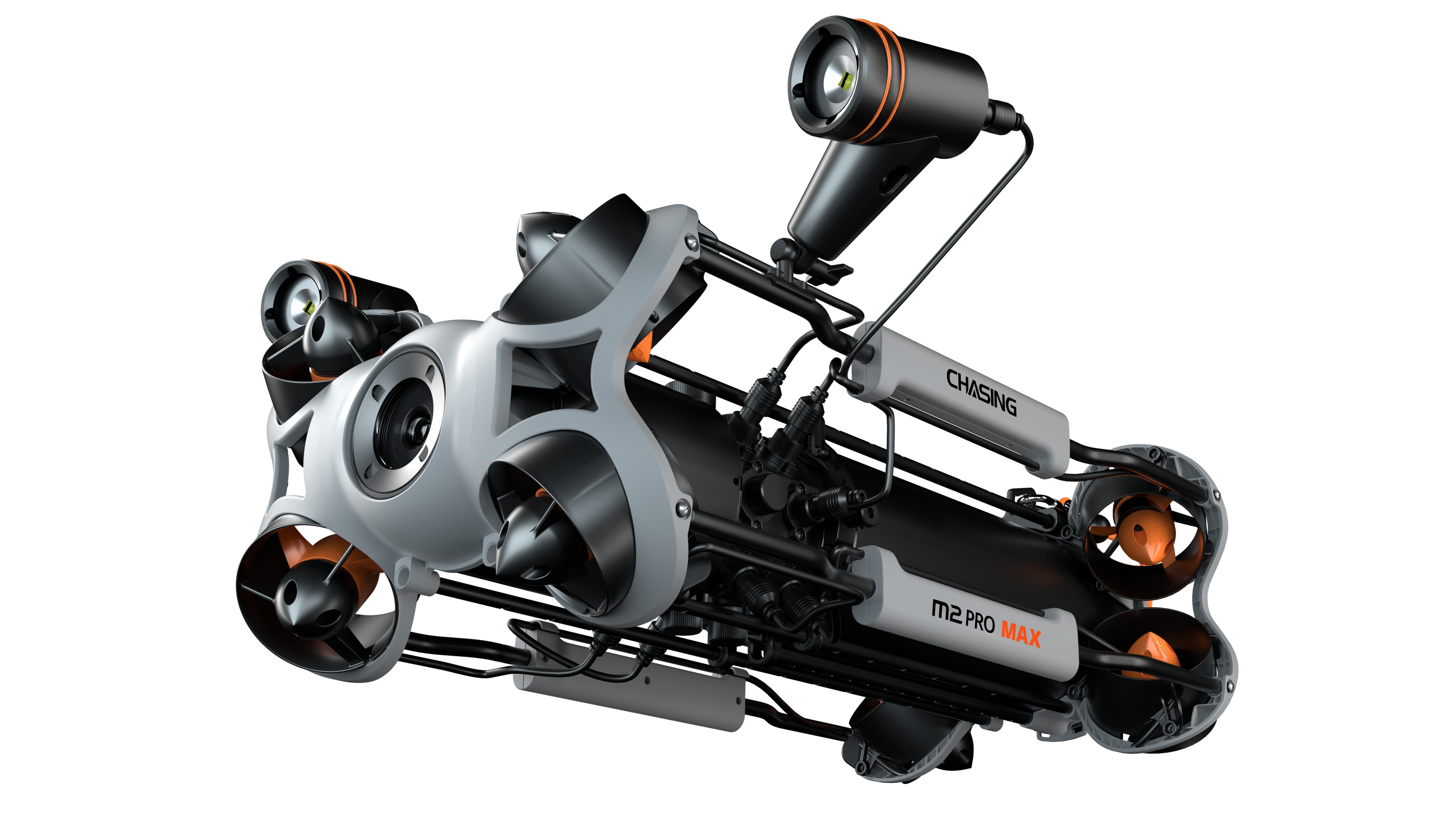

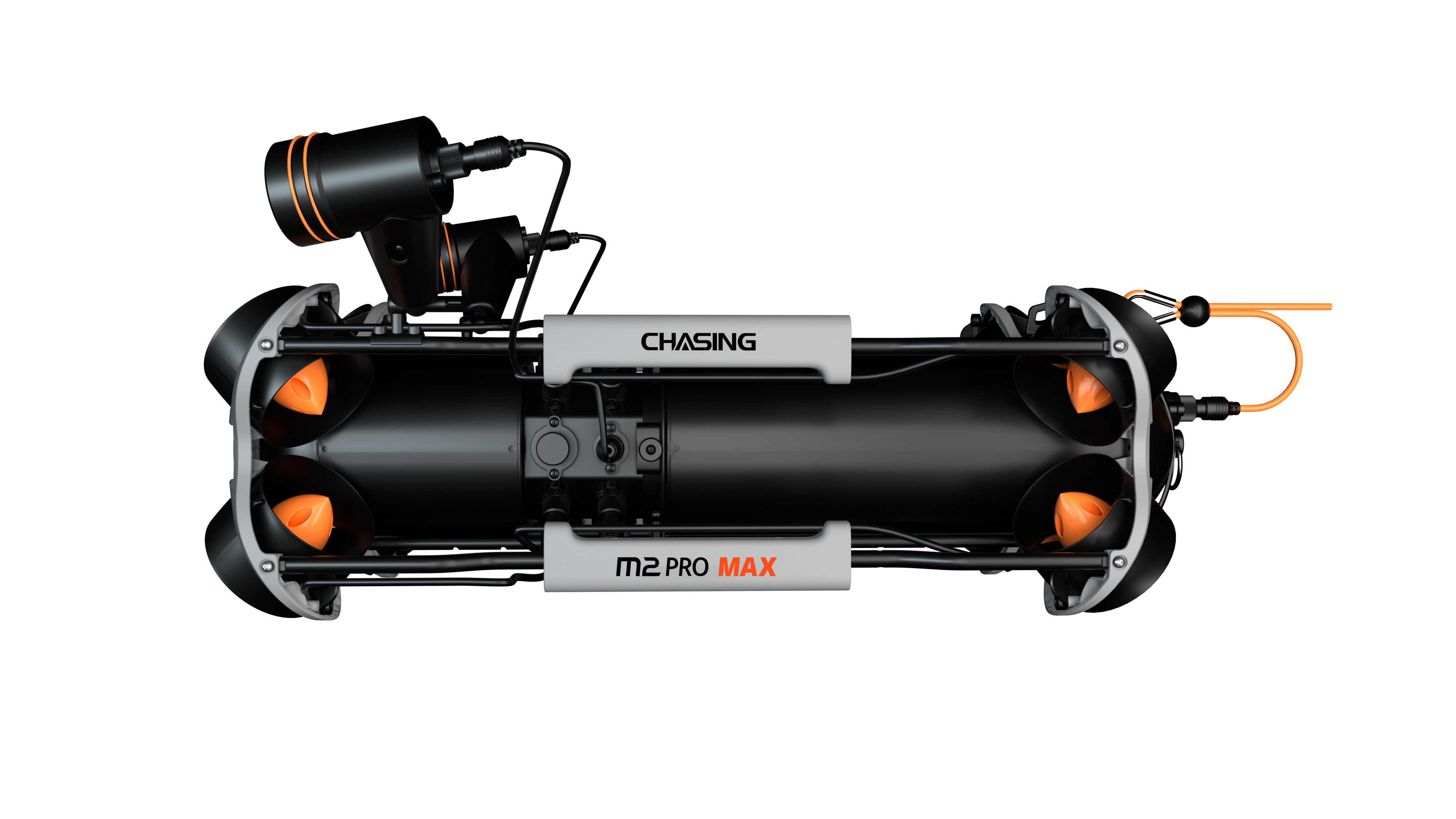

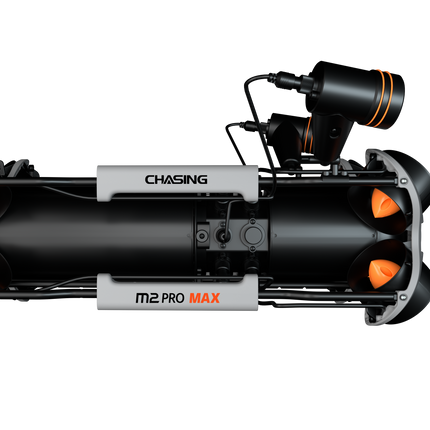

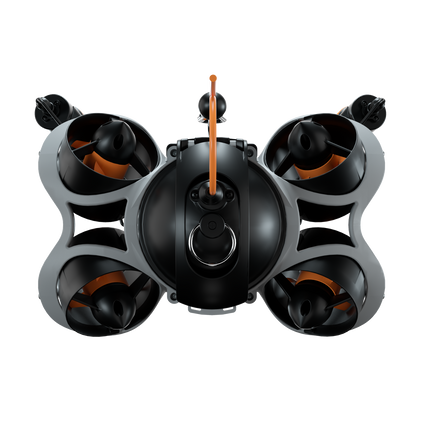

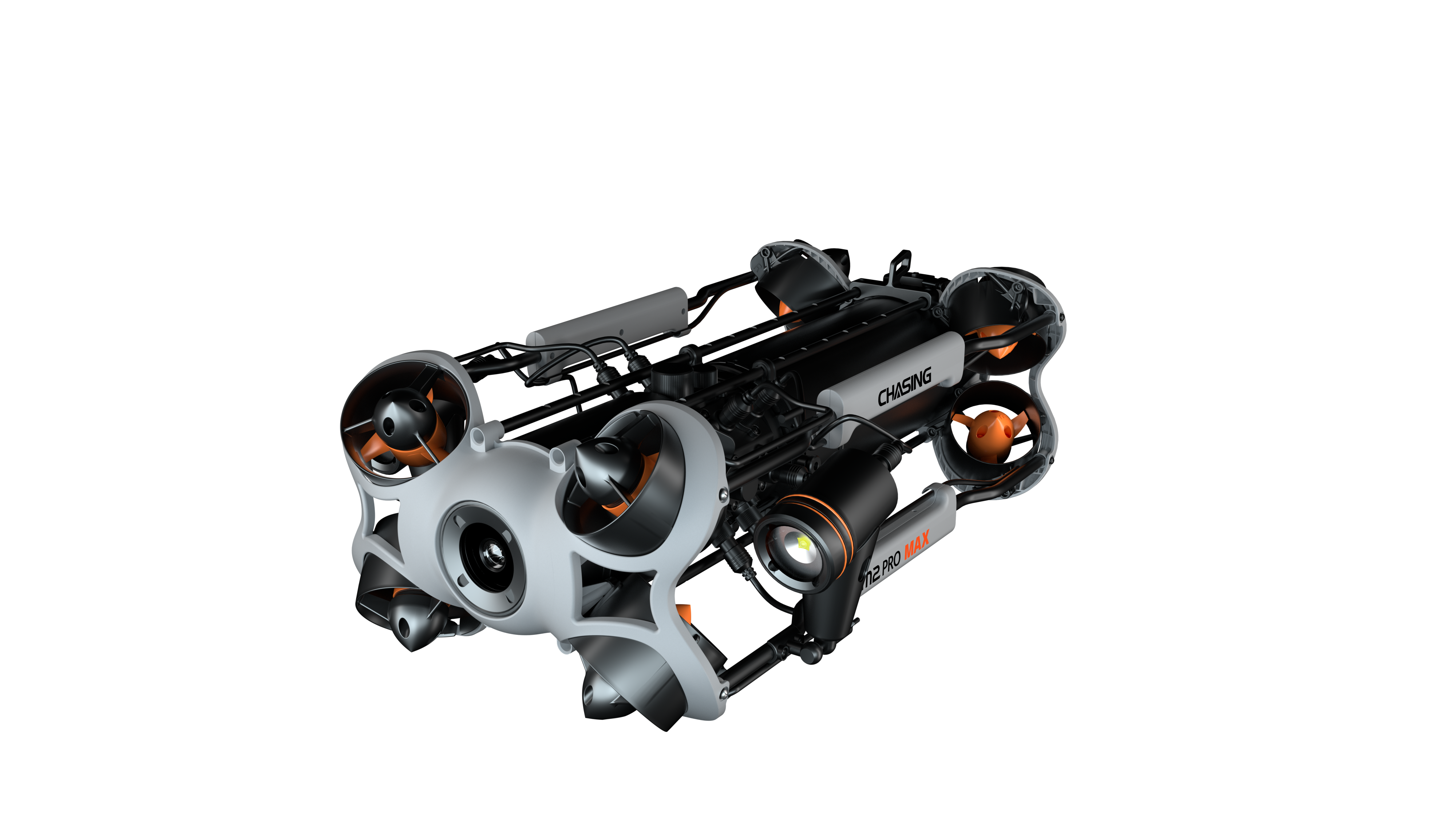

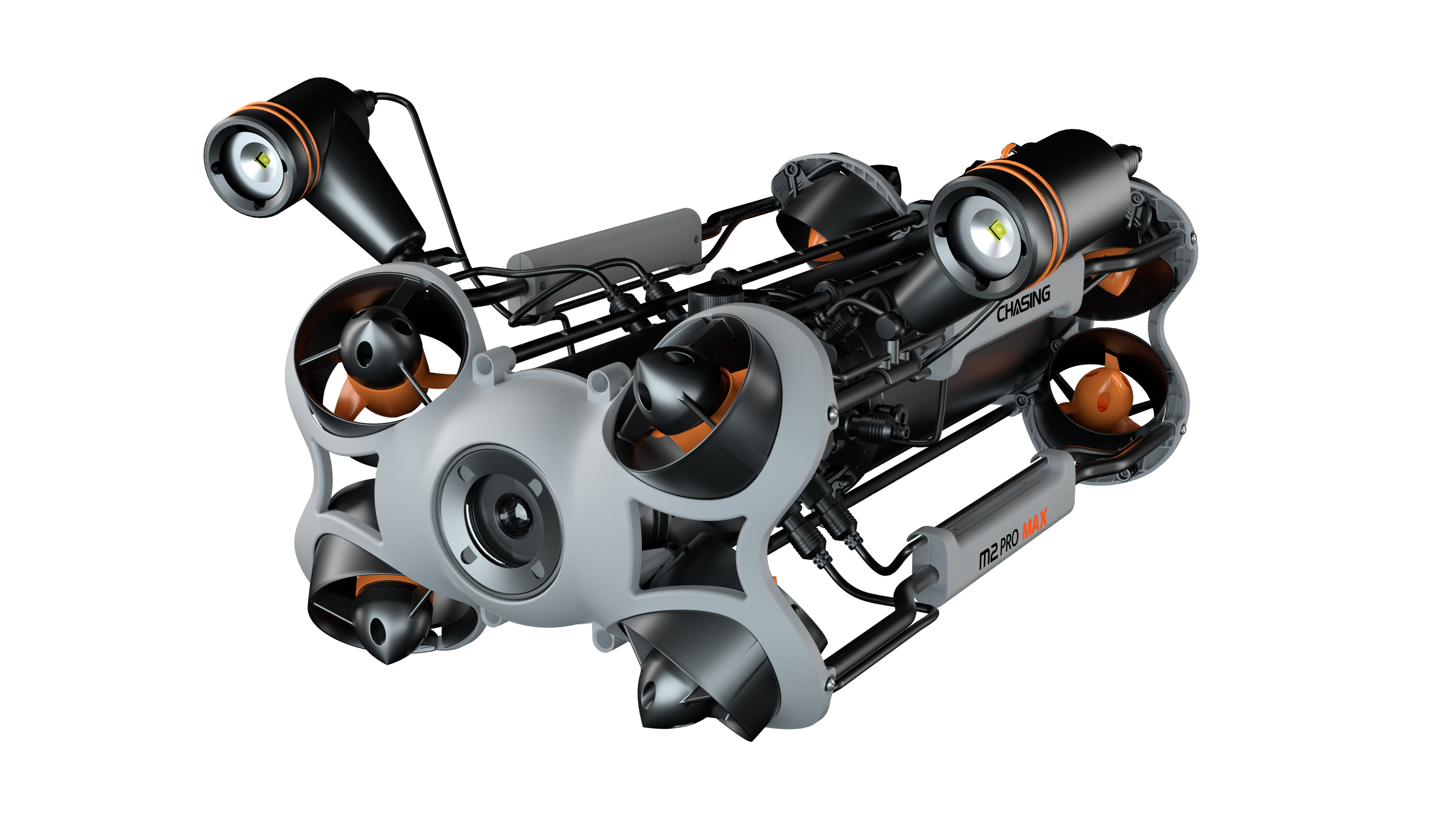

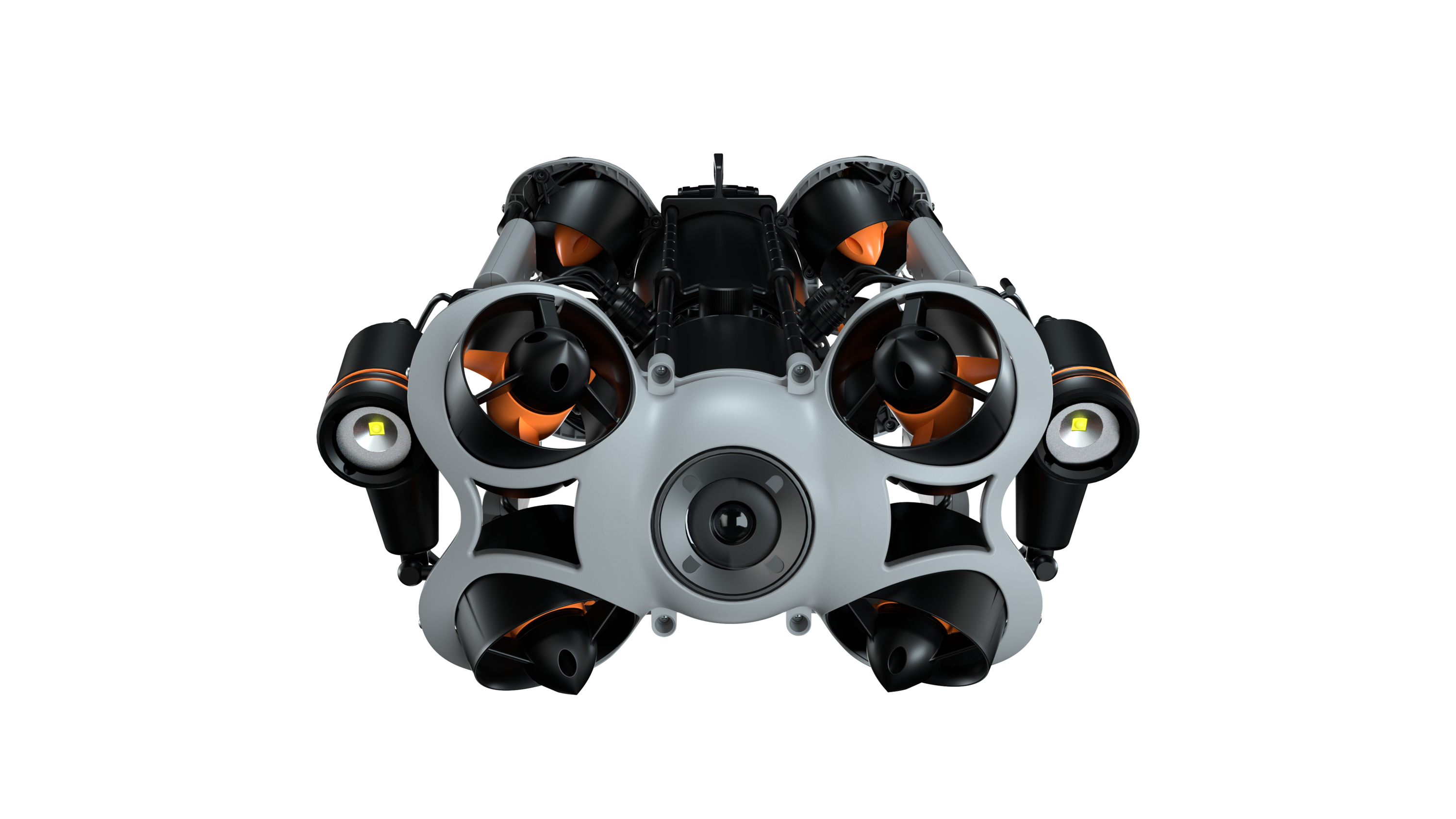

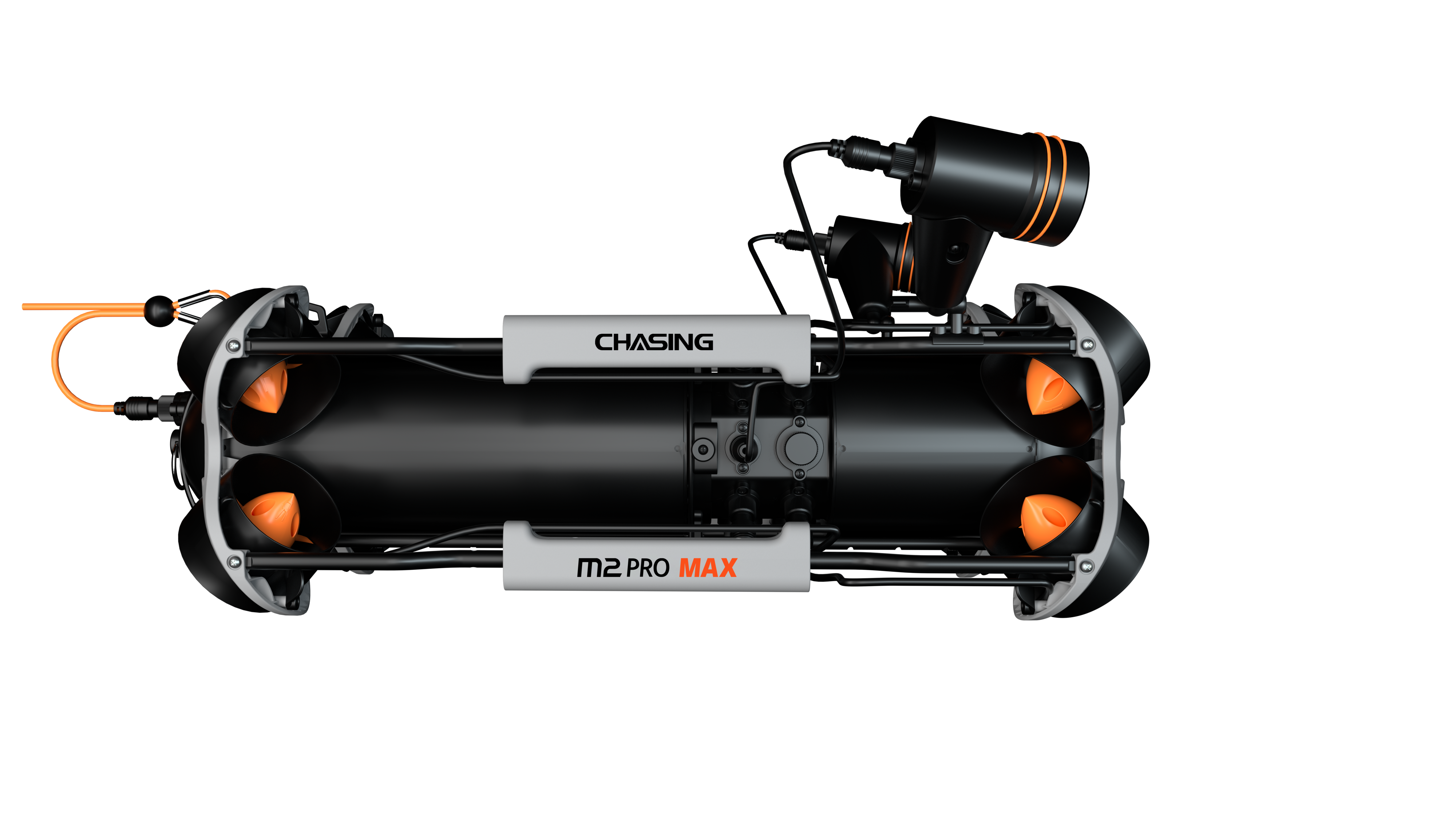

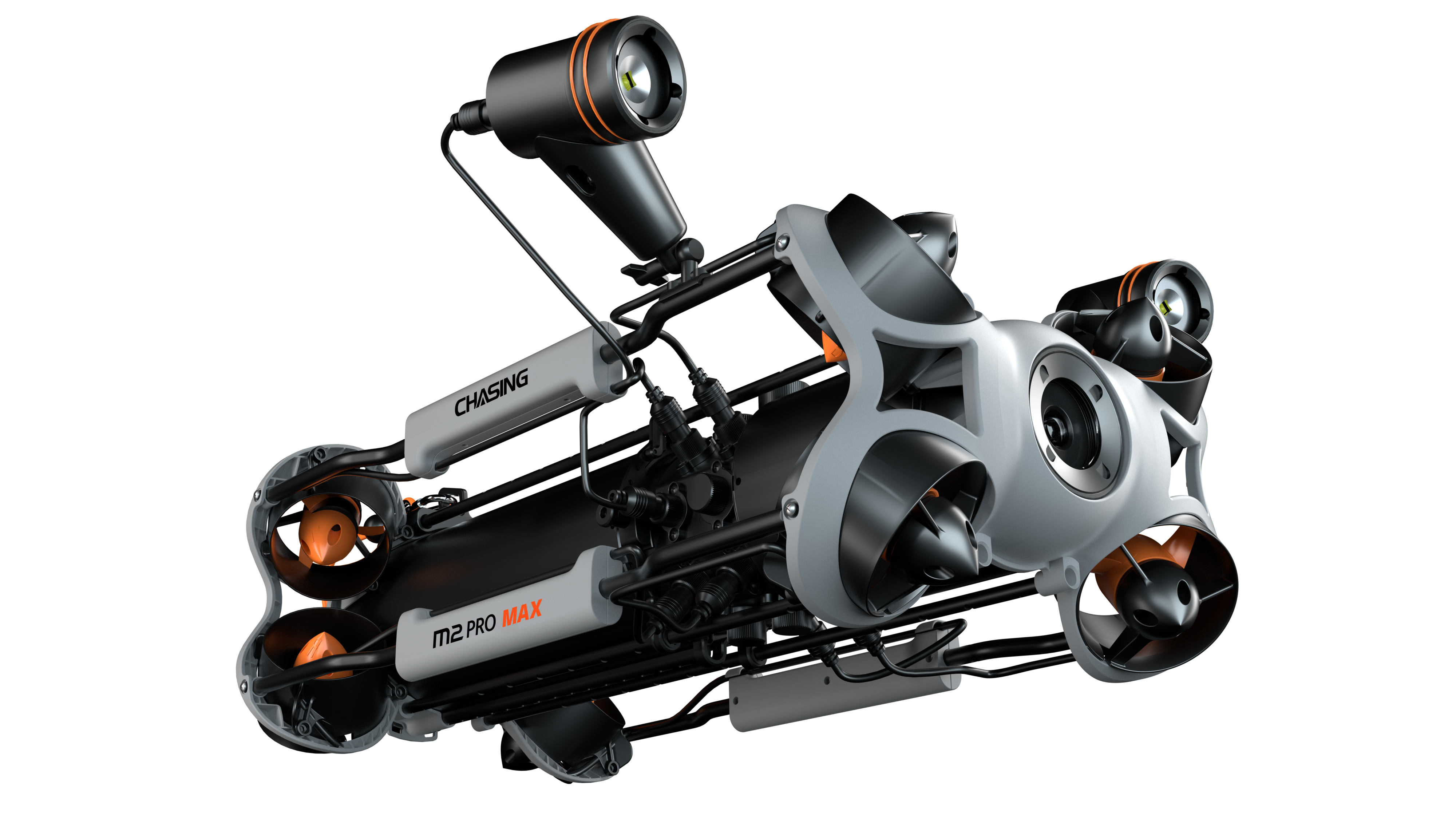

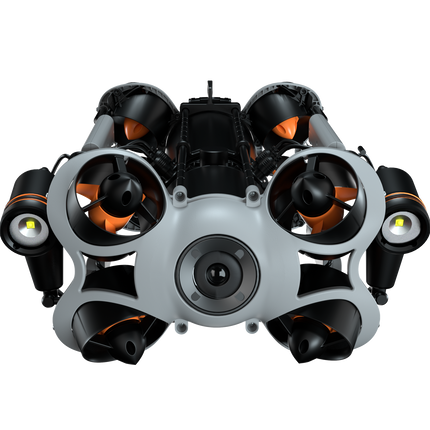

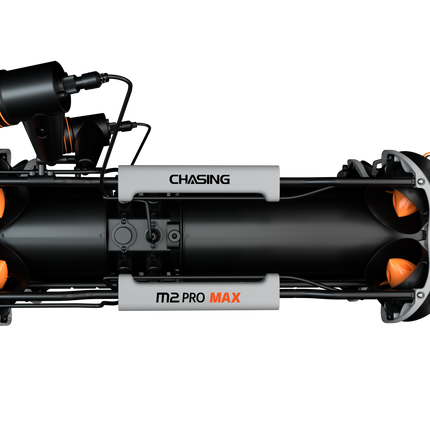

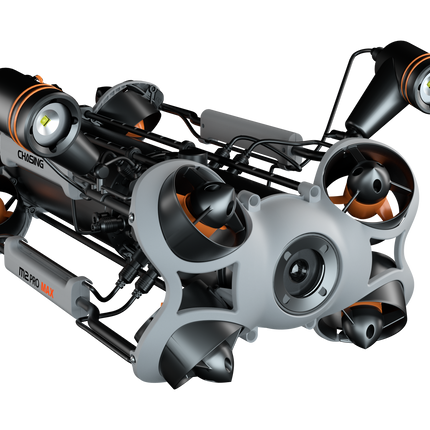

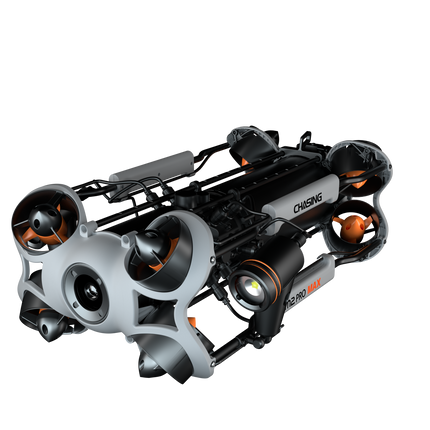

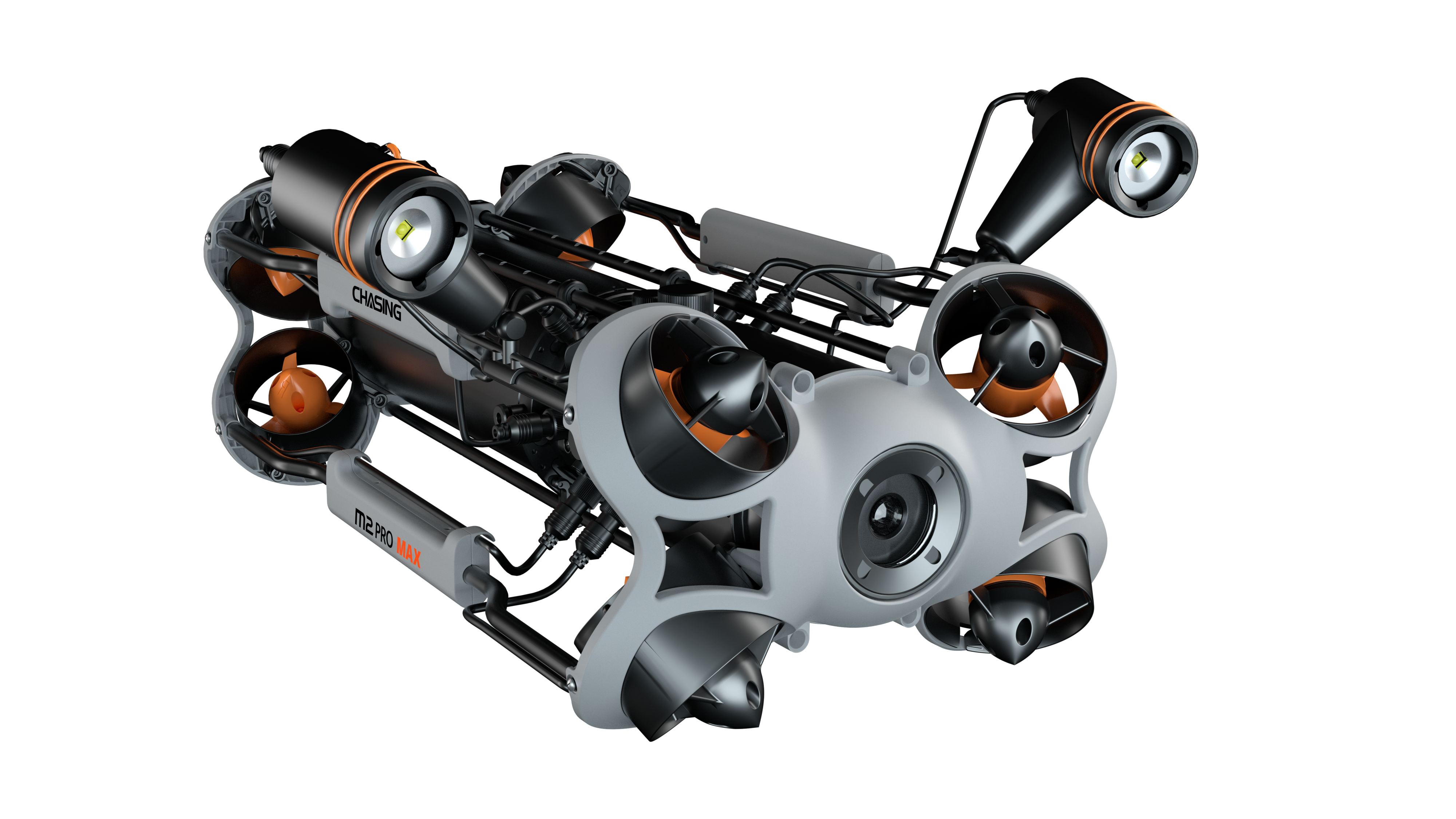

CHASING M2 PRO MAX is an Industrial grade underwater remote operated vehicle (ROV) designed for Government and enterprise users.
It adopts new generation of accessories mounting method, quick assembly and disassembly technology, shore based power supply and external floodlights provide easier-to-use, more professional, and more reliable underwater solutions for various industrial applications.
Product Specifications
CHASING M2 PRO MAX
Maximum Depth
200m
|
Video Maximum Stream
60M
|
Maximum Battery Life
>4h
|
Micro SD Card Memory
128G
|
Maximum Image Resolution
12 M
|
Normal Video
FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
|
ROV
|
|
608 x 294 x 196 mm (Excluding the floodlight) |
|
≈8 KG |
|
200m |
|
5.7 / 4.0 / 3.6 KG |
|
>4h |
|
302.4Wh |
|
-10 ℃ ~ 45 ℃ |
E-Reel
|
|
296x189x279 mm |
|
3.5 KG |
|
200 meters |
|
4800 mAh |
|
>300 times |
|
30 times |
|
3 gears |
|
Fast speed 220 s Low speed 9 min |
|
-10℃~45℃ |
|
2 H (12 V ) / 4 H (25.2 V) |
Remote Controller
|
|
160 x 155 x 125 mm |
|
685 g |
|
2500 mAh |
|
≥6H (Depend on working condition) |
|
Support |
|
support |
|
support |
|
Maximum support 10 inches |
LED Lights
|
|
2 x 4000 lm |
|
5000 K ~ 5500 K |
|
85 |
|
|
Sensor
|
|
Three-axis gyroscope acceleration compass |
|
<±0.25 m |
|
<±2 ℃ |
Adapter
|
|
8 A / 25.2 V |
|
2.5 H |
|
2 H |
Camera
|
|
1/2.3’’ |
|
f/1.8 |
|
0.3m~∞ |
|
100-6400 |
|
150° |
|
12 M |
|
JPEG / DNG |
|
UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps |
|
720p: 8x (240fps) 1080p: 4x (120fps) |
|
4K / 1080p |
|
60 M |
|
MP4 |
|
128 G |

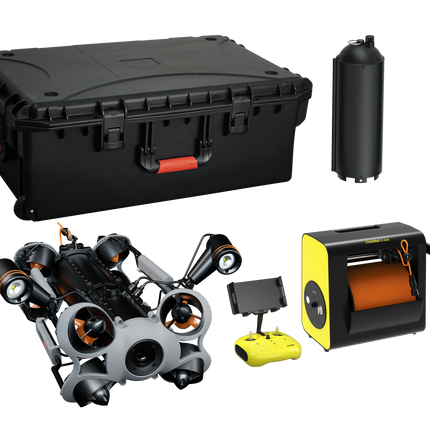

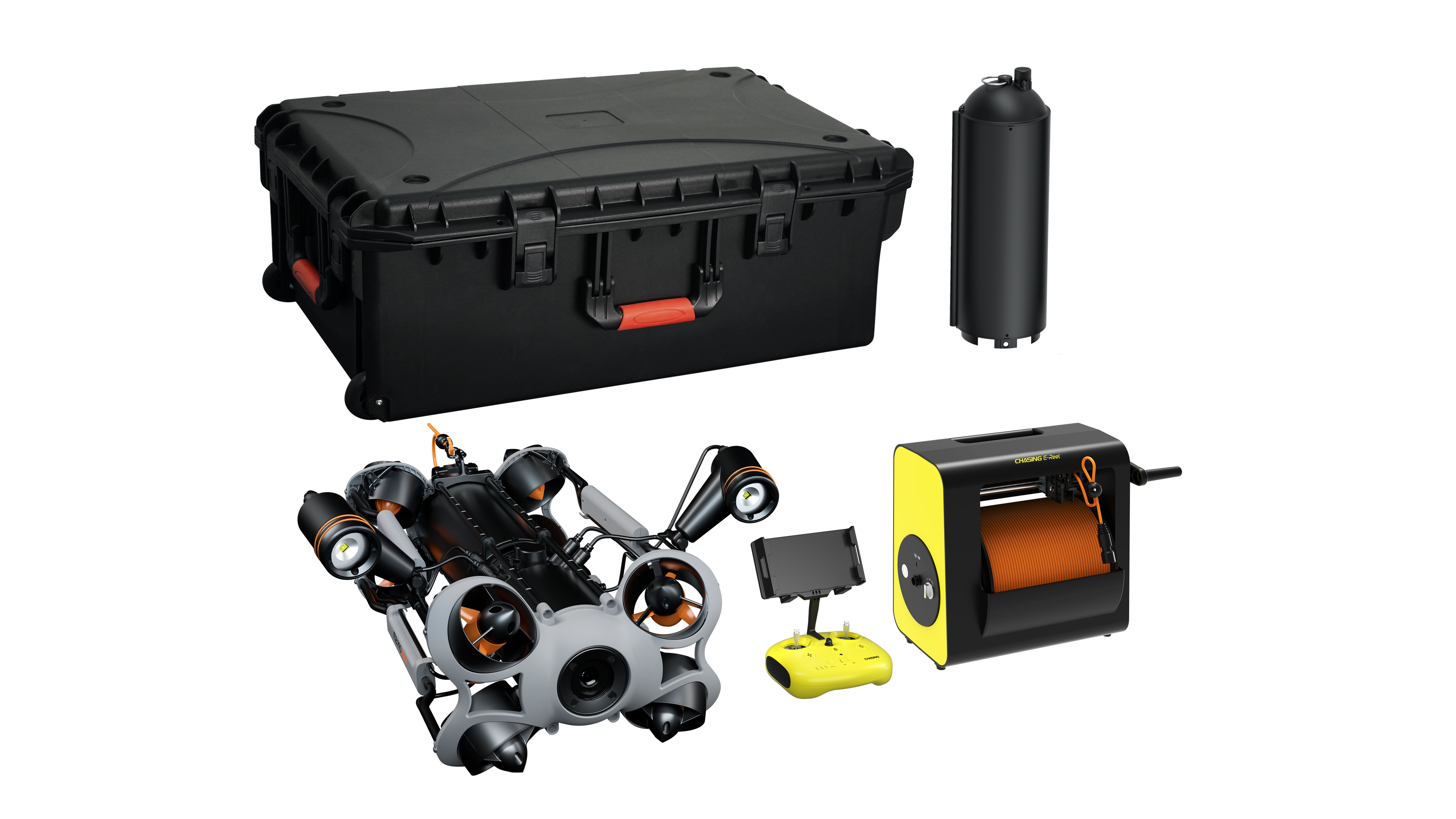

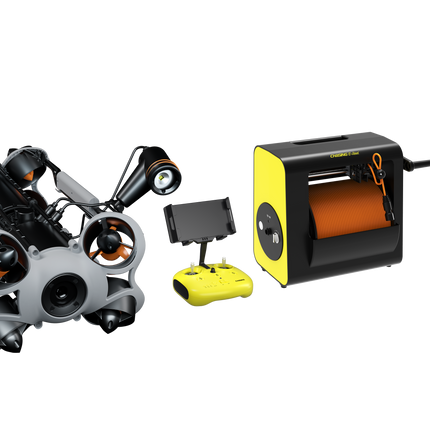

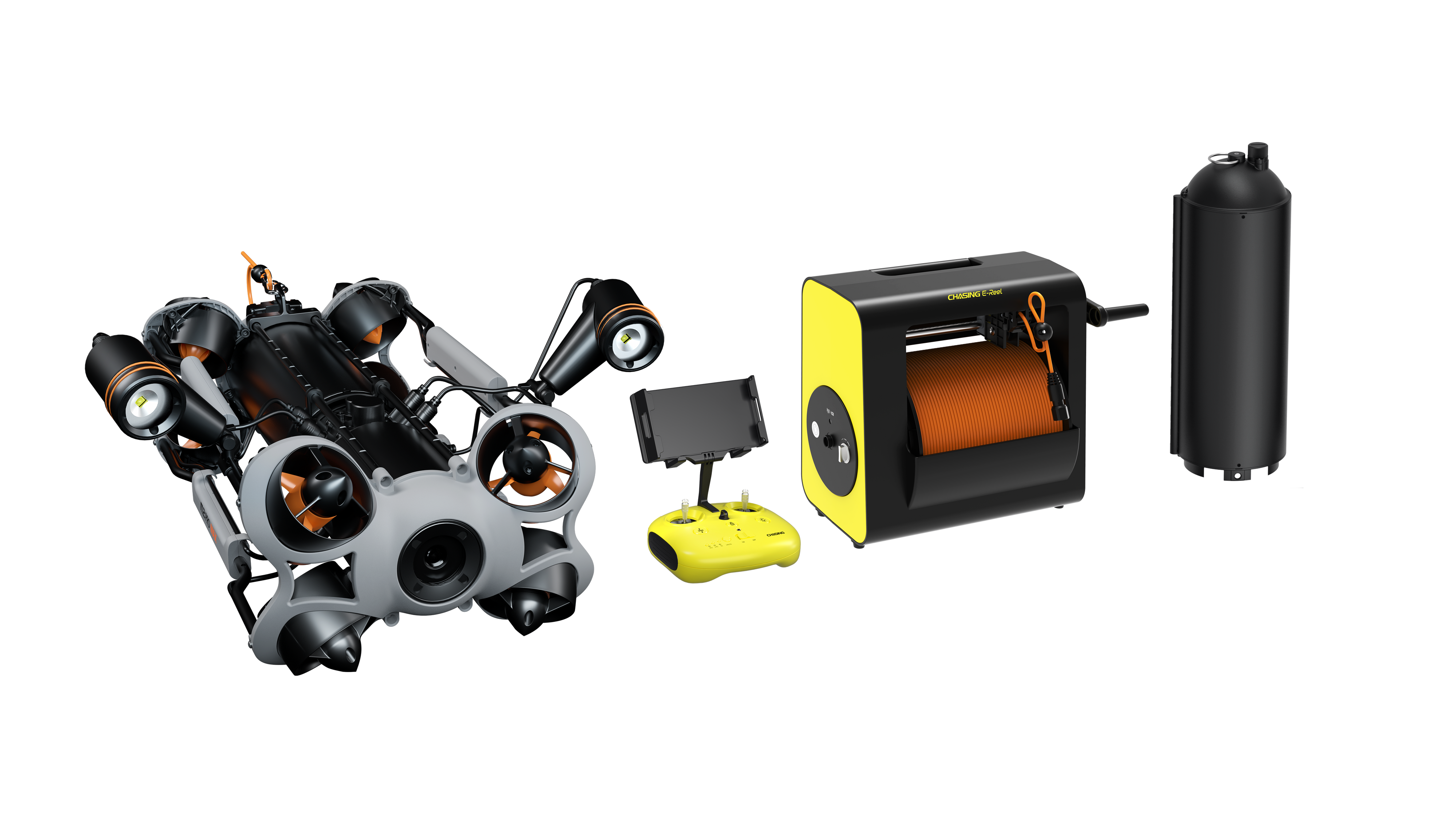

In The Box:
-
Drone ×1
-
CHASING E-Reel 200m ×1
-
Charging cable & 3-in-1 Charger ×1
-
Remote Controller ×1
-
Data cable ×3
-
Carrying case ×1
-
Backpack for accessories ×1
-
Towel ×1
-
23.6X1.8 O-rings ×2
-
19X1.8 O-rings ×4
-
12.5X1.5 O-rings ×4
-
M3X8 Combination screw ×10
-
M3X8 Machine screw ×5
-
M5 small flat washer ×6
-
M5 spring washer ×6
-
Cross/Hexagon dual-purpose screwdriver ×1
-
Flat wrench ×1
-
Sealing cover of the tether socket ×1
-
Sealing cover of the peripheral socket ×2
-
Thruster shield ×8
-
Left/Right floodlight Spare parts for mounting support ×2
-
Information Kit ×1
-
300Wh Battery ×2
