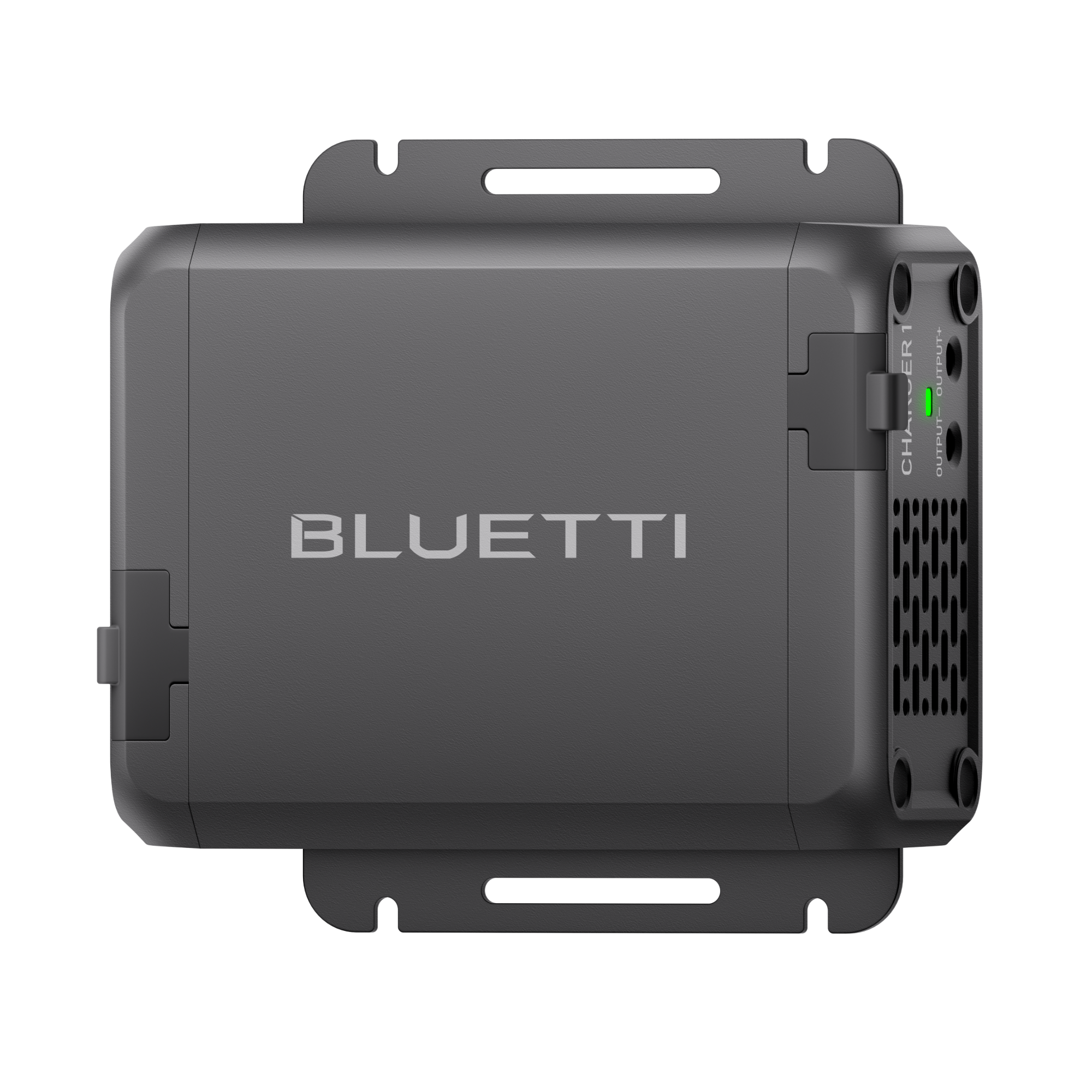

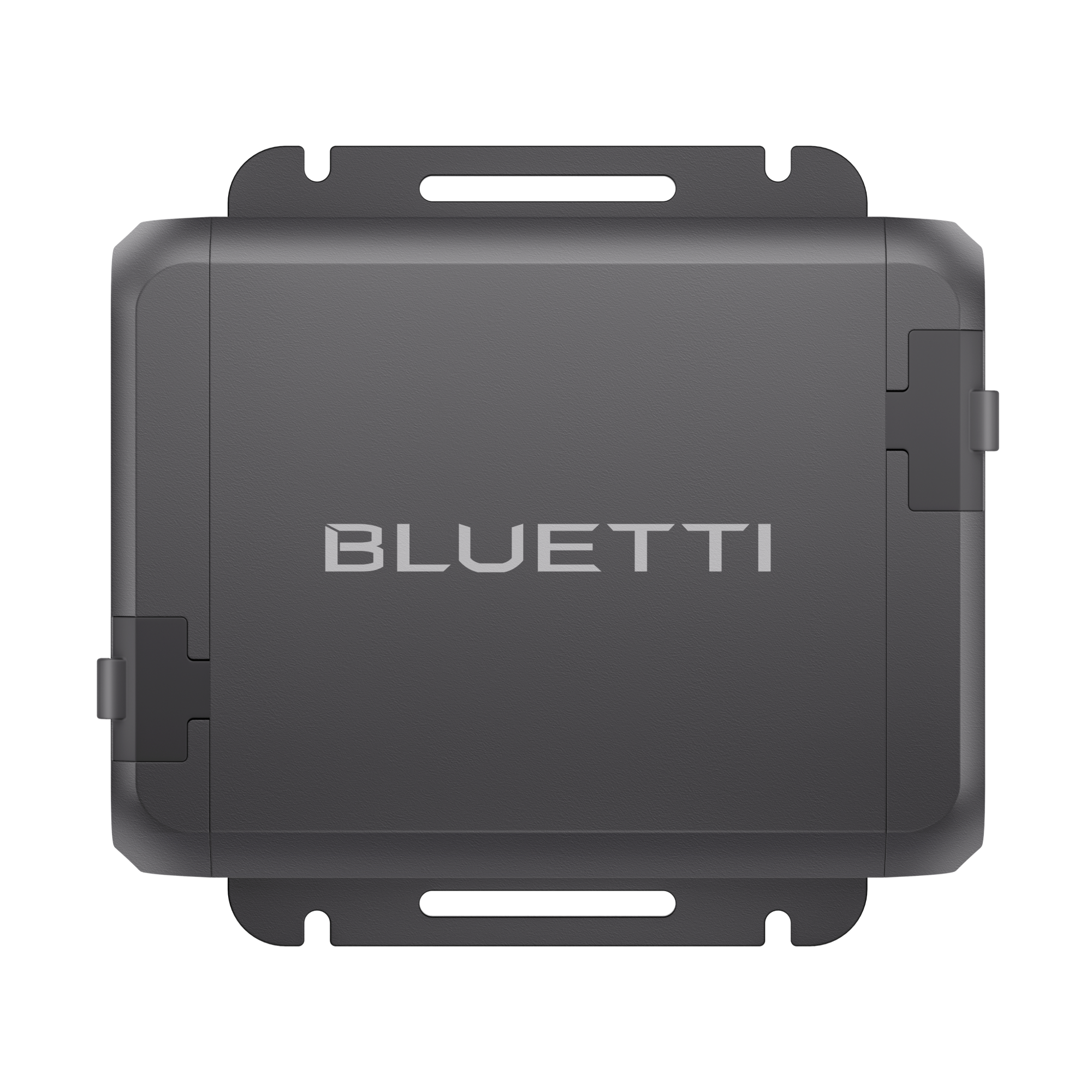

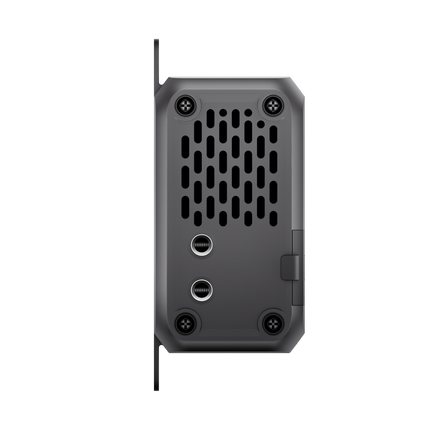

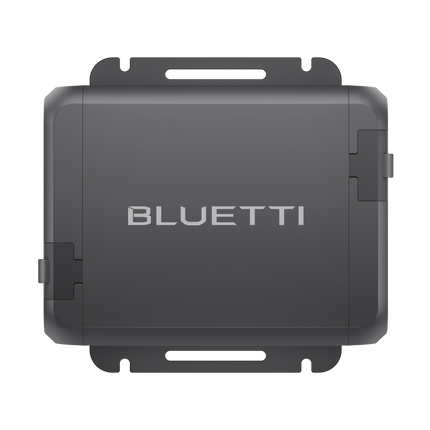

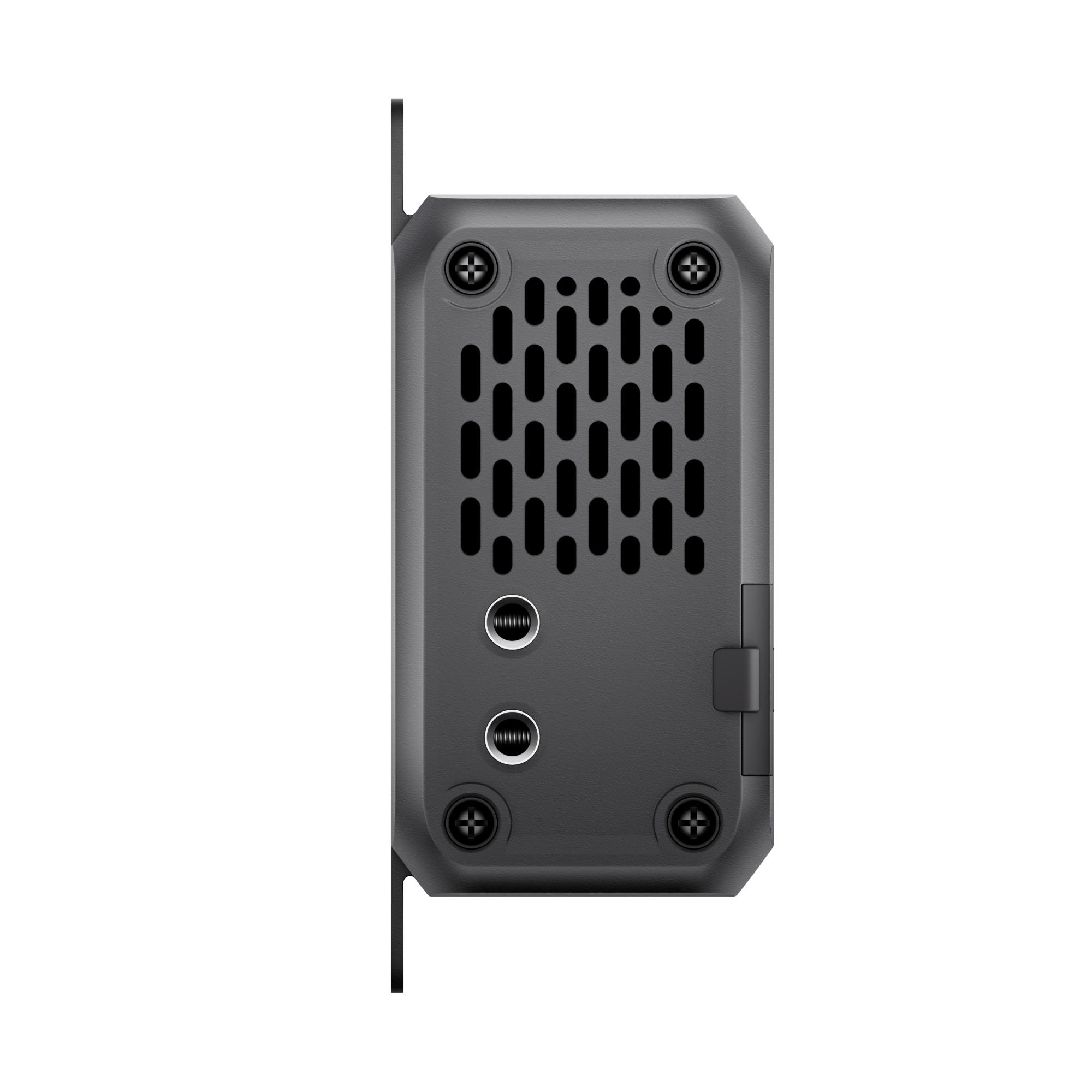

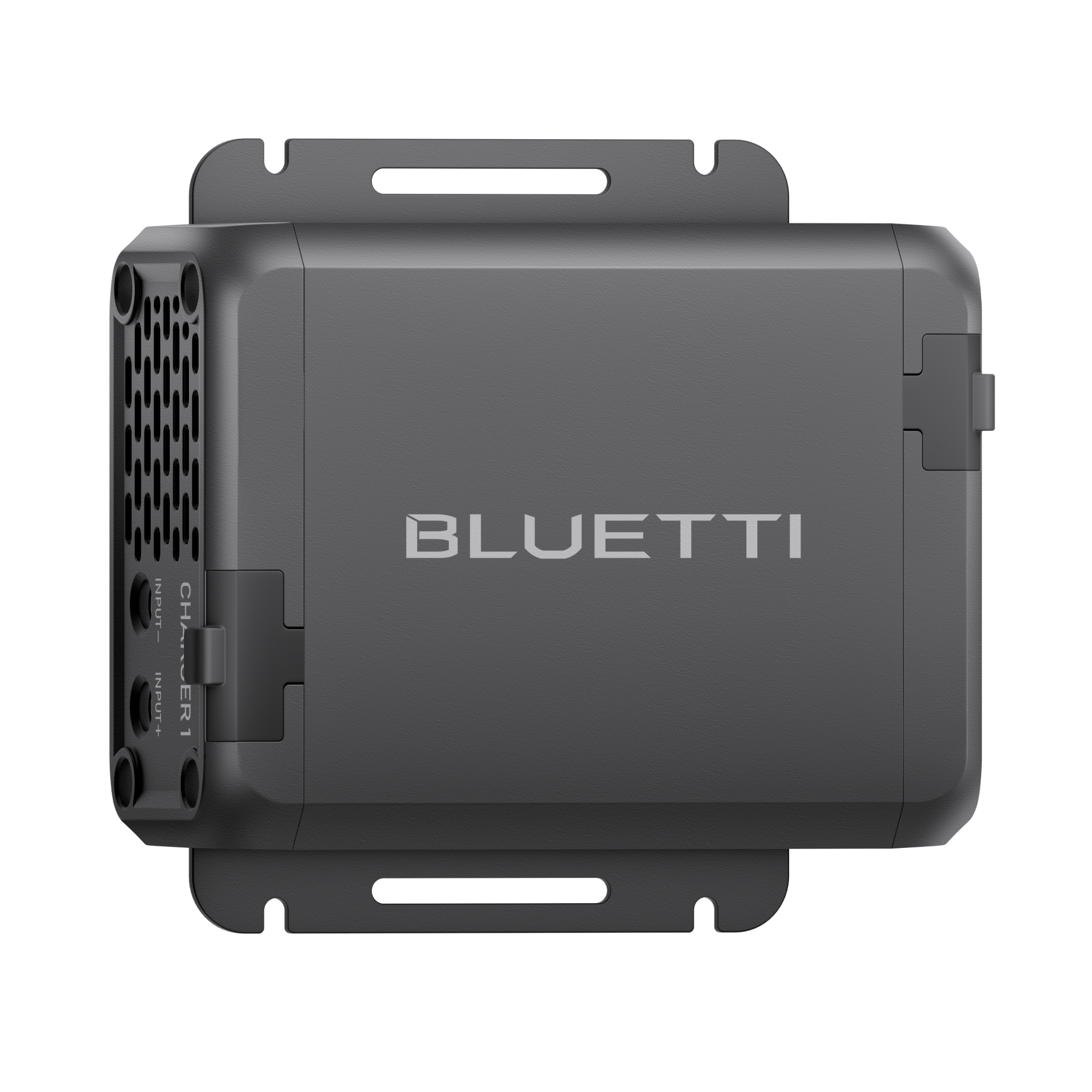

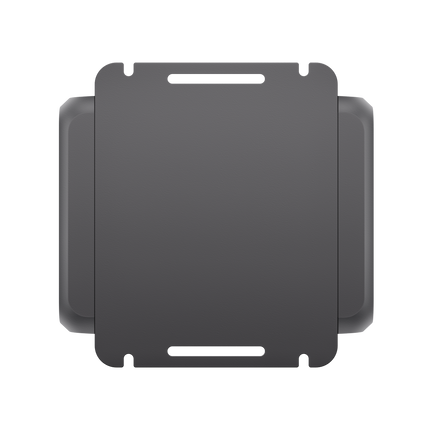

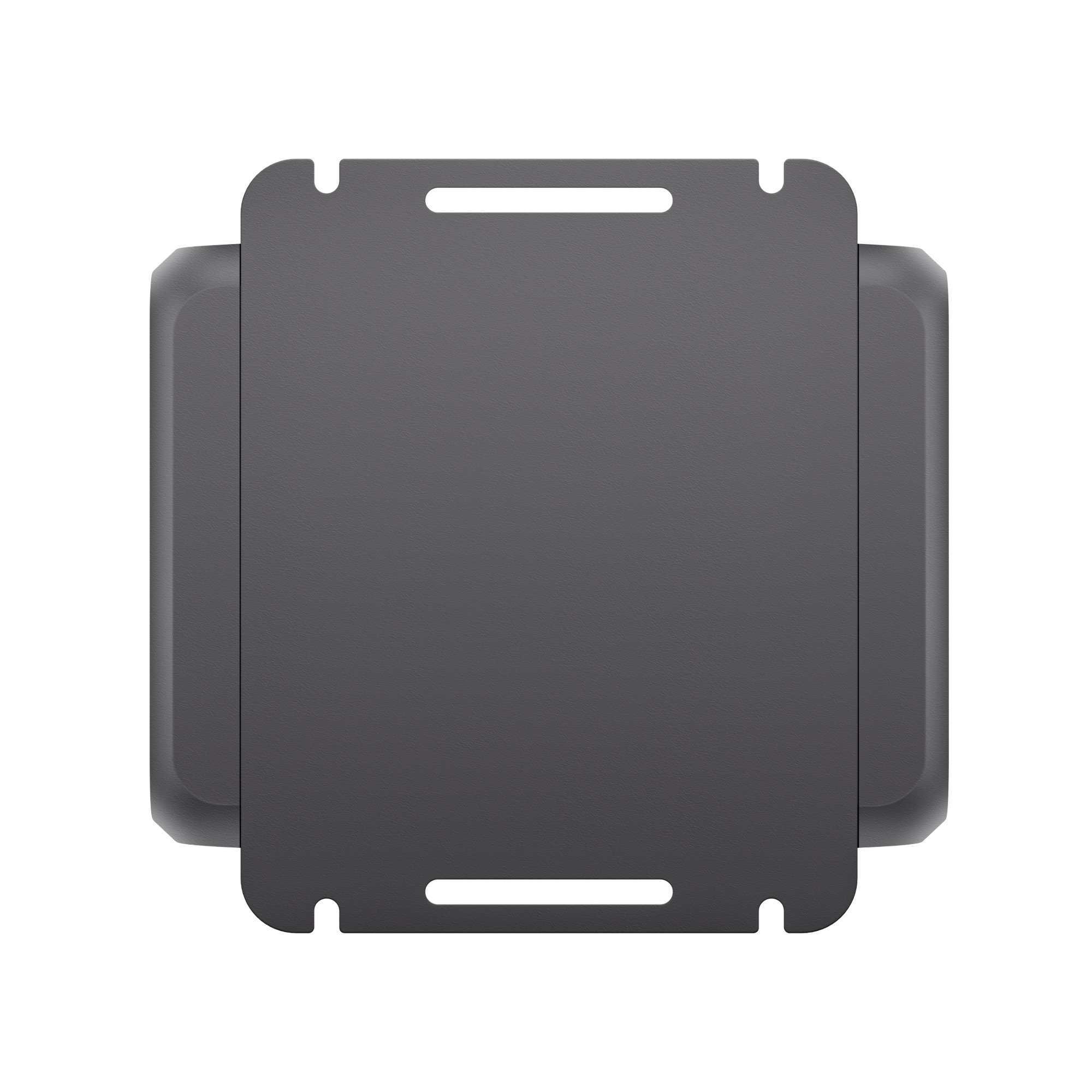

BLUETTI Charger 1 | 560w Alternator Charger + 5m DC Cable

    Description

    6x Faster Charging Speed

    The Charger 1 delivers up to 560W of power— 6X faster than a traditional car charger. Now you can fully charge a 1kWh power station in just 2.5 hours, making it a game-changer for your on-the-go charging experience.

    Why Choose Charger 1?


    High Security
    High Security
    Auto On/Off
    Super Temperature Control
    With adjustable voltage, it adapts to all BLUETTI power stations and 95% other models on the market.

    Multi-Layer Protection in Every Charge


    Protect Your Vehicle Battery
    Protect The Charger 1
    Protect Your Power Station
    Prevents your car battery from draining, so you can start your vehicle anytime.

    Monitor and Control While Driving

    With the BLUETTI app, you can easily check the charging status, adjust the voltage directly from your phone, and ensure everything is running smoothly.

    Easy Steps to Install


    Easy Install in 4 Steps
    Check the Compatibility Table and Installing Your BLUETTI Charger 1 With Ease.

    Step 1 : Prepare your installation
    1. Check all components in place, including a 6AWG DC input cable. 2. Prepare the tools. 3. Ready your power station and solar charging cable.

    Step 2: Connect to Charger 1
    1. Switch off the circuit breaker on the 6AWG DC input cable. 2. Connect the 6AWG input cable and the MC4 output cable to the Charger 1. 3. Connect the output cable to your power station via a solar charging cable.

    Step 3 : Connect to Car battery
    1. Run the input cable through your car to the car battery. 2. Attach the cable to the car battery terminals, red to the positive, black to the negative.

    Step 4 : Start Charging
    1. Switch on the circuit breaker. Set the proper voltage before turn on the Charger 1 on App. 2. Find a place to secure the Charger 1 properly.

    Tech Specs

    BLUETTI Charger 1

    OUTPUT

    • Default Voltage

      27V

    • Voltage Range (with 12V battery)

      15.0V to 56.0V (adjustable via app)

    • Voltage Range (with 24V battery)

      27.0V to 56.0V (adjustable via app)

    • Current

      10A

    • Power

      560W

    INPUT

    • Input Voltage

      12V -14V / 22.5V - 28V

    • Input Amperage

      50A - 12V / 25A - 24V

    GENERAL

    • Product Function

      Increase output voltage (To charge power station)

    • Compatibility

      All BLUETTI power stations & 95% other models on the market.

    • Protections

      Short circuit/anti-reverse/under-voltage/over-temperature

    • Cooling

      Fan cooling

    • Surge Protection

      60A Circuit Breaker (Optional)

    • Operating Temperature

      -20°C to 60°C / -4°F to 140°F

    • Protection Grade

      IP20

    • Noise

      50dB Max.

    • Weight

      Approx. 1.2kg / 2.645lbs

    • Dimensions (L x W x D)

      145mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in

    • Warranty

      2 Years

    • App Control

      Bluetooth

    IN THE BOX

    • Charger 1 DC-DC Charger
      x 1

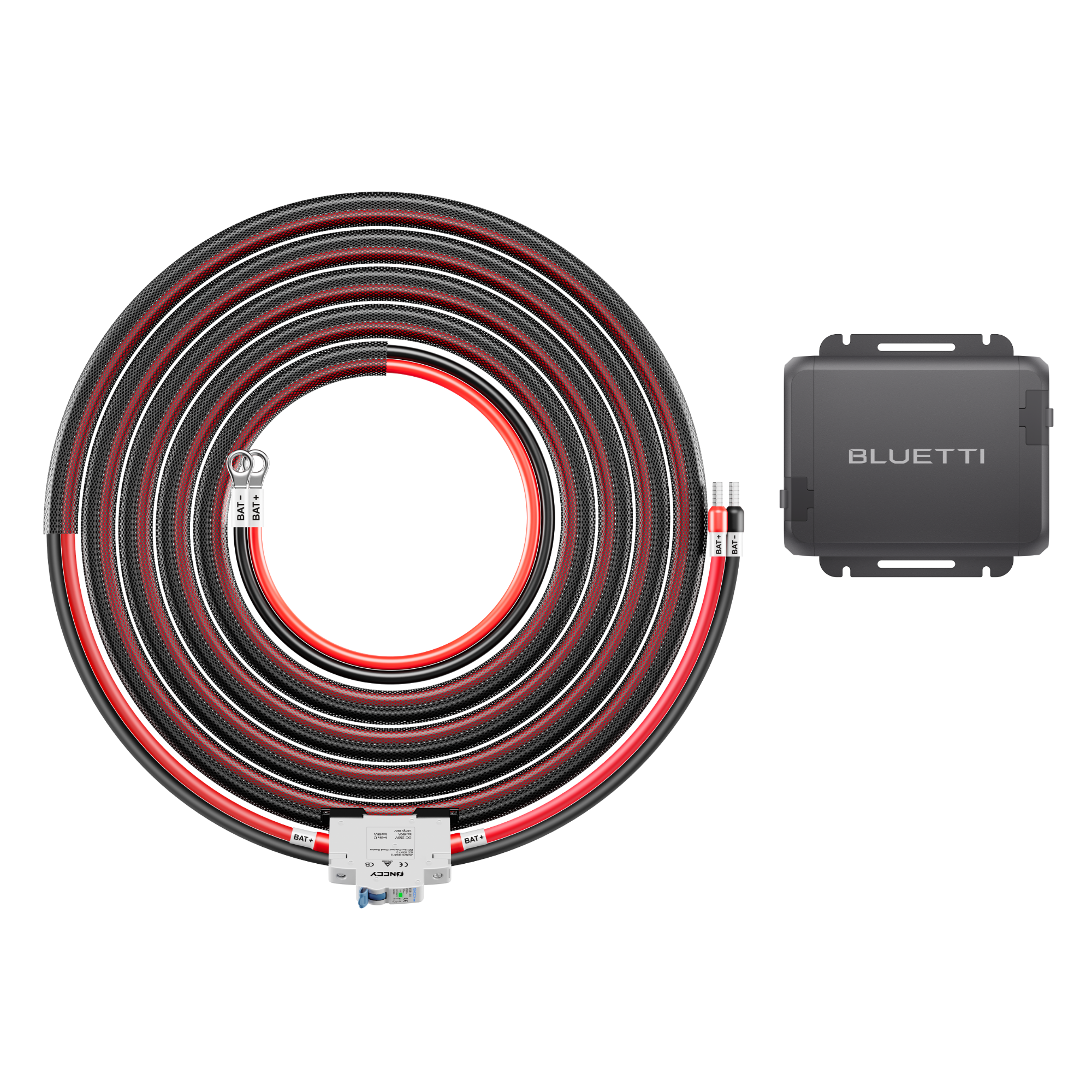

    • DC Input Cable
      x 1
    • MC4 Output Cable
      x 1
    • Hex Socket Screw
      x 4
    • Self-tapping Screw
      x 6
    • Hex Socket Wrench
      x 1
    • User Manual
      x 1
