Description

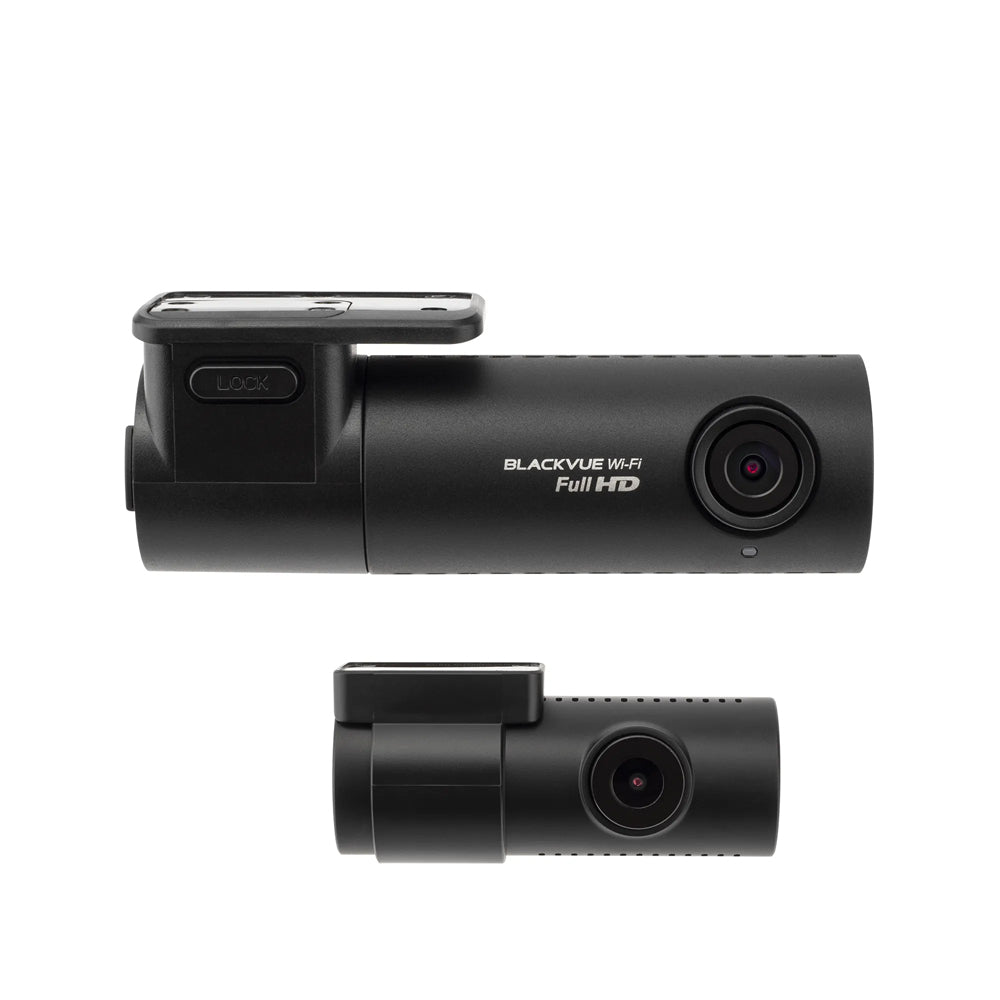

Simple Dual Full HD Wi-Fi Dashcam
Outstanding Dual Full HD quality in a small form factor, featuring Sony’s STARVIS™ image sensor in the front camera for better clarity in low light.
The DR590X-2CH Plus records both front and back or interior of your vehicle in Full HD 1080p.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
Dual Full HD Wi-Fi Dashcam
Full HD front and rear @30fps: the DR590X-2CH-PLUS records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 131-degree wide view angle. With the front camera’s Sony STARVIS imaging sensor. You get awesome image clarity day and night.
Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view the front and rear cameras or transfer files to your mobile device.
Native Parking Mode
With included Hardwiring cable
DR590X Plus can be hardwired to your vehicles’ fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR5950X Plus Series is also compatible with all BlackVue Parking Mode kits and batteries.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS
What's included?
• Front Camera
• Rear Camera
• Quick start guide
• Cable clips (5EA)
• microSD card
• microSD card reader
• Analog Video Cable
• Hardwiring power cable
• Cigarette lighter power adapter
Specifications
Model Name: DR590X-2CH Plus
Channel: 2CH
Highlights: Full HD (Front + Rear), Wi-Fi, Sony Sensor
Product Dimensions: Front: Black / Width 111.8 mm x Height 34 mm / 87.8 g
Rear: Black / Width 67.4 mm x Height 25 mm / 20.3 g
Rear Camera Connection: Analog cable
Memory Support: microSD Card (32 GB / 64 GB / 128 GB / 256GB / 512GB)
Recording Modes:
– Normal,
– Event recording (when impact is detected in normal and parking mode)
– Parking Mode (when motion is detected)
Parking Mode : YES (hardwiring cable included)
Parking Mode Event Voice Notifications: YES
Imaging Sensor: Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: CMOS Sensor (Approx. 2M Pixel)
Viewing Angle:
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°
Resolution Frame Rate : Front / Rear
Full HD @30fps – Full HD @30fps
Video Codec: H.264 (AVC)
Image Quality and Bitrate Front/Rear:
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free: YES (Adaptive)
Event File Overwrite Protection: YES
SD Card Failure Alert: YES
Scheduled Reboot: YES
Video File Extension: MP4
Wi-Fi: Built-in (802.11 b.g.n)
GPS: External (Dual Band: GPS, GLONASS) (Optional not included in the box)
Microphone: Built-in
Speaker: Built-in
Impact Sensor: 3-Axis Acceleration Sensor
LED Indicators: Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Rear: Rear Security LED
Button: Wi-Fi button: * Press once to turn on/off Wi-Fi.
Operation Temperature: -20℃ – 70℃ (-4°F – 158°F)
Storage Temperature: -20℃ – 80℃ (-4°F – 176°F)
High Temp Cut Off: Approx. 70℃ (158°F)
Backup Battery: Built-in supercapacitor
Input Power: DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Power Consumption Hour: Normal Mode (WiFi On / GPS On / 2CH) : 370mA / hour
Normal Mode (WiFi Off / GPS On / 2CH) : 330mA / hour
Parking Mode (WiFi On / GPS Off / 2CH) : 340mA / hour
Parking Mode (WiFi Off / GPS Off / 2CH) : 300mA / hour
Certifications : Front: FCC, CE, RoHS, Telec, WEEE, IC, RCM
Rear: FCC, CE, RoHS, WEEE
Software: BlackVue Viewer
Application: BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others: Adaptive Format-Free File Management System
