| Takeoff weight |
1191 g |
| Max takeoff weight |
2000 g |
| Wheelbase |
397 mm |
| Size(L*W*H) |

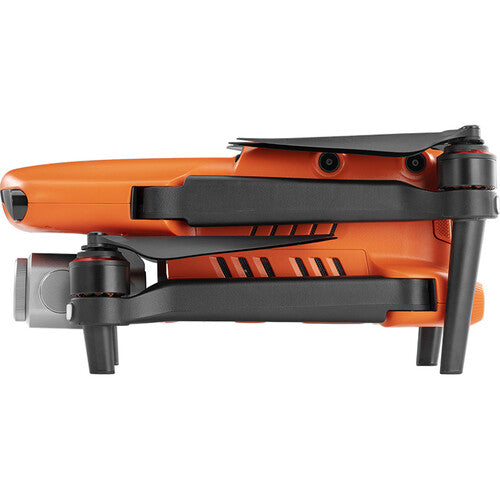

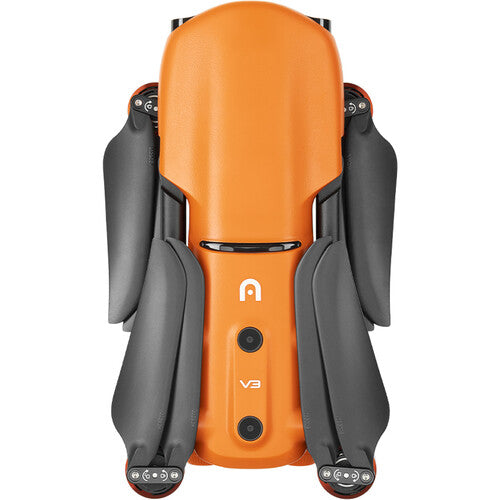

230x130x108 mm (folded)
457x558x108 mm (unfolded)
|
| Maximum service ceiling altitude |
7000 m |
| Max ascent speed |
8 m/s (Ludicrous) |
| Max descent speed |
4 m/s (Ludicrous) |
| Max horizontal flight speed |
20m/s (Ludicrous) |
| Max flight distance (no wind) |
25 km |
| Max tilt angle |
33° (Ludicrous) |
| Max angular velocity |
120°/s |
| Max flight time (no wind) |
40 min |
| Max hovering time (no wind) |
35 min |
| Operating temperature range |
-10℃ ~ 40℃ |
| Maximum resistance to wind |
12 m/s (Take-off and landing) |
| Operating frequency |
902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only) |
| Transmission power |
900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm |
| Hovering accuracy |
Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally) |
| GNSS |
GPS/Beidou/Glonass/Gallieo |
| Internal storage |
8GB |
| SD storage |
max. support 256GB (UHS-3 or Class 10) |
