Built for Stealth and Security
Up to Triple Camera Protection and Secure Recording Unit (FRONT CAMERA INCLUDED ONLY)
The DR770X Box Pro is a triple-channel-capable dash cam with BlackVue Cloud connectivity.
The compact cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for outstanding image quality under any light, and the infrared cameras can record clear videos in full darkness.
The wireless button lets you manually and safely bookmark videos (tagged as “Manual Event”) while driving.
Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App.
Cloud support via optional LTE Connectivity module or Wi-Fi hotspot.
• Up to Three Cameras and Secure Recording Box
• Standard Rear Camera
• Ultrawide Infrared Interior Camera
• AI-Powered Driver-Monitoring Camera
Color / Size / Weight:
Main unit : Black / Length 130.0mm x Width 101.0 mm x Height 33 mm / 209 g
Front : Black / Length 62.5mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Rear Truck : Black / Length 70.4mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
DMS : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g:
EB-1 (Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Memory: microSD Card (64 GB/128 GB/256 GB/512GB)
Recording Mode:
Normal recording, Event recording (when impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode.When using other methods, G-sensor will trigger parking mode.
Camera:
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear/Rear Truck : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR/DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle:
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear Truck(ERC1) : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR(RC1-IR) : Diagonal 180°, Horizontal 150°, Vertical 93°
DMS(RC1-DMS) : Diagonal 109°, Horizontal 94°, Vertical 52°
Resolution / Frame Rate:
Full HD (1920x1080) @ 60 fps - Full HD (1920x1080) @ 30 fps- Full HD (1920x1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality (Mbps): Extreme: 16 + 10 + 10 Mbps / Highest: 12 + 10 + 10 Mbps
Video Compression: Mode MP4
Wi-Fi: Built-in (802.11 b.g.n)
GNSS: External (Dual Band : GPS, GLONASS)
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: External (Optional)
Microphone: Built-in
This models supports BlackVue Cloud
Read more about BlackVue Cloud here
BlackVue DR770X Box Truck Pro features front, rear and interior protection for your vehicle, with a waterproof external rear camera. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.
Total Video Protection for Trucks and Heavy Vehicles
The DR770X BOX TRUCK PRO is ideal to secure most large commercial trucks. The waterproof (IP69K) infrared rear camera connects to the secure Box recording unit via a 15m video cable. This allows to monitor not only the road behind, but also cargo loading and unloading operations.
The ultrawide interior camera is also equipped with infrared LEDs to capture clear video of the cabin under any light.
You can also connect the optional Connectivity Module to keep the dashcam connected to the Cloud at all times.
• Seamless Pairing with the BlackVue App
• Infrared external rear camera
• Waterproof coaxial cable
• GPS, Wi-Fi and Optional LTE
• Ultrawide Infrared Interior Camera
• Built-in Speaker, Impact Sensor and Motion Detection
• SOS Button
• BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web).
Model Name DR770X Box Truck
Channel
3CH
Highlights
2K (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g
Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear Truck : Black / Length 70.4 mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 256GB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear Truck : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Front / Rear / Interior
Highest(Extreme): 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 51)
SD Card Failure Alert
YES
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
External (Dual Band : GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
Rear Camera IR Illumination
Rear Truck : 940nm (6 Infrared (IR) LEDS)
Interior IR : 940nm (2 Infrared (IR) LEDS)
Input Power
DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour
Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.
* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
This models supports BlackVue Cloud
Read more about BlackVue Cloud here

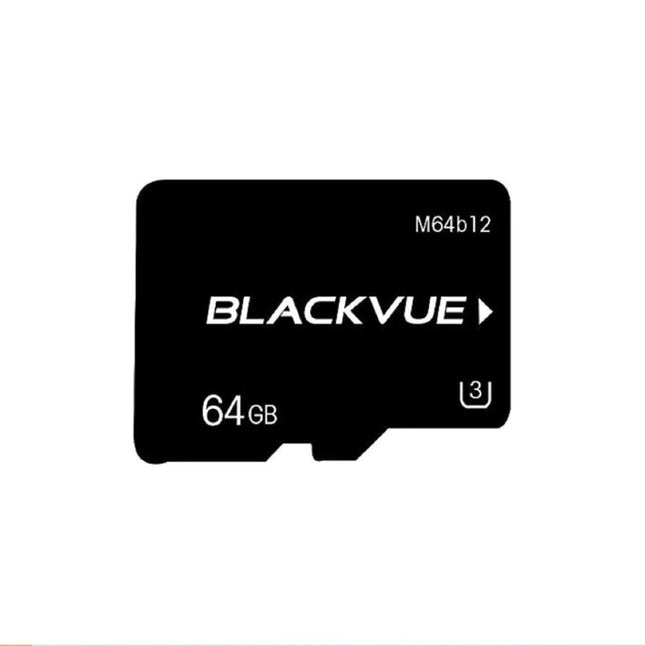

The BlackVue microSD cards are optimized to work with all BlackVue dashcams.
The 64GB is compatible with all of the following dashcams:
DR970X / DR970X LTE
DR750X-3CH/3CH Truck/3CH DMS/3CH DMS TRUCK Plus
DR750X LTE Plus
DR900X Plus
DR750X Plus
DR750 LTE
DR900X
DR750X
DR900S
DR750S
DR590W
DR590
Please note regarding compatibility with older BlackVue dashcam models: although it may seem to work, we cannot fully guarantee compatibility and performance with older models.

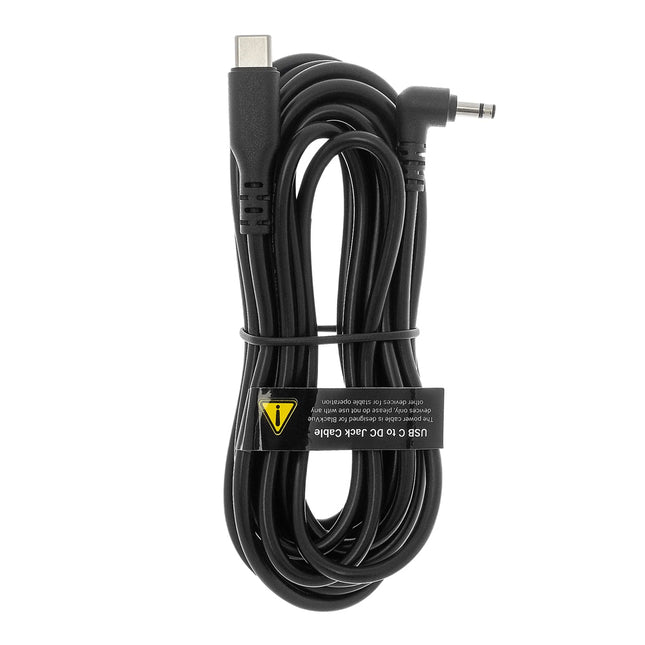

This cable will come handy to those who don’t have a 12V cigarette lighter type power outlet in their vehicle. It could also makes it easier to power your dash cam outside of your car, if you wanted to, thanks to the widely supported universal USB-C connector.
