SURRON LIGHT BEE X 2023
The light bee combined the both high torque from dirt bike and lightweight and agility from downhill bicycle.Under the dynamic appearance , it hides a wild and enthusiastic heart.
Specifications:
ORIGINAL DESIGN
G3 Curved frame design
The total weight of the main frame of the rear pendulum is 7.8 kg
Forging press 6000 tons
The frame is made of aviation aluminum with powder coating
Tested by strict quality standards, using advanced industry technologies
SUR-RON ENGINE
High-performance engine
Engine power 5400 W
Engine torque 32 Nm
0-80 Km/h in 6.02 sec
The bike can climb uphill with an angle of more than 50 degrees
Degree of protection from water IP55
Active engine braking system
Recuperation is the function of recharging the battery with an idling engine
THE BATTERY
Minimum charging time
Removable battery
Battery capacity 40Ah
Working voltage 60V
Battery weight 11 kg
Power reserve up to 100 km
Charging time 3-4 hours
Panasonic Ncr 18650pf battery cells, 176 pcs.
4 real-time temperature sensors
Display for charge tracking
BRAKE SYSTEM
Shimano high-performance braking system
Four-piston hydraulic disc brake system, stable and reliable
All metal brake pads are durable and have low thermal conductivity
It is characterized by high braking power and increased durability
Robust design that provides excellent braking performance when riding in a variety of styles
Durable streamlined main cylinder
4-piston caliper for confidence on difficult tracks and the pleasure of riding
Heat-insulated pistons for stable braking and reduced pad wear
One-way oil supply to the caliper and pumping with a funnel for quick and convenient maintenance of the brake hydraulic line
3.8 s
0-50 km/h
75 km/h
Top Speed
50 kg
Ultra lightweight Design
Product specification
Explore the Light Bee X more extensively.
MOTOR
Motor Type: PMSM
Weight / Motor External Diameter: 7.0kg / 180mm
Motor Axial Length: 130mm
Peak Efficiency: 95.60%
Cooling Method: Air-Cooled
CONTROLLER
Controller Type: X Version Sine Wave
Dimensions: 240mm x 110mm x 50mm
Peak Efficiency: 98.50%
Power Modes: Eco and Sport

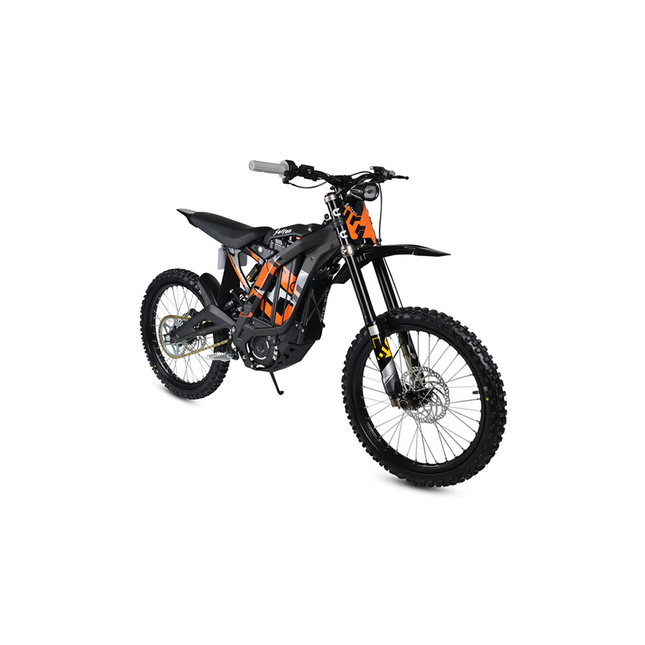

Light Bee X
The Sur-ron Light Bee X is tailored for off-road adventures, excelling on rough terrain and cross-country trails. Its multi-link suspension effortlessly handles irregularities, while off-road tires ensure optimal grip on dirt, sand, and stones. The controller is tuned to a maximum engine speed of 5400 rpm, and the bike weighs a minimum of 50 kg. Experience the joy of riding a powerful bike.
In-house Engineered Intersect TR Rear Suspension System
Following extensive trials on cross-country tracks and urban roads, we've developed an exceptional multi-link rear suspension system for the Light Bee X. The design seamlessly integrates with the overall vehicle structure, and the shock absorption performance is finely tuned to suit the usage characteristics of electric bikes, ensuring consistent optimal tire grip.
More about Surron Light Bee X
Outstanding Athletic Performance
In sports mode, the powerful 5KW output and instant 250N.m torque on-wheel simplify maneuvers like jumping and wheelies. The 19-inch off-road wheel set guarantees excellent passage, preventing any chance of getting stuck, enhancing overall sport performance.
Power Ready
The EIC system, crafted at their advanced headquarters, utilizes top-notch tech for superior performance. The sine wave controller delivers smoother power, increased torque, and ReGen for extended range, ensuring an exceptional riding experience.
Ideal Power Pairing
This 60V bike packs 6kW power, a removable Panasonic battery, 47kg frame, 4 Piston Hydraulic Disc Brakes, and an LCD dash with USB charger. Ideal for all ages, it handles 45° slopes, offers a 20 to 60-mile range, speeds over 45 mph, with a fast 2.5 to 3.5-hour recharge.

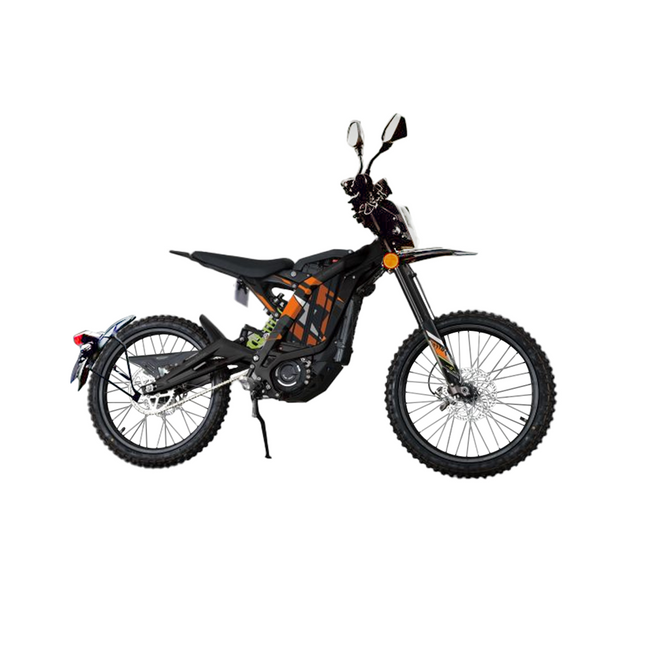

SURRON L1E is intended for use on public roads and contains a full-fledged headlight, brake light, turn signals, a dashboard, mirrors, and an anti-theft lock.
Specifications:
ORIGINAL DESIGN
G3 Curved frame design
The total weight of the main frame of the rear pendulum is 7.8 kg
Forging press 6000 tons
The frame is made of aviation aluminum with powder coating
Tested by strict quality standards, using advanced industry technologies
SUR-RON ENGINE
High-performance engine
Engine power 5400 W
Engine torque 32 Nm
0-80 Km/h in 6.02 sec
The bike can climb uphill with an angle of more than 50 degrees
Degree of protection from water IP55
Active engine braking system
Recuperation is the function of recharging the battery with an idling engine
THE BATTERY
Minimum charging time
Removable battery
Battery capacity 32Ah
Working voltage 60V
Battery weight 11 kg
Power reserve up to 100 km
Charging time 3-4 hours
Panasonic Ncr 18650pf battery cells, 176 pcs.
4 real-time temperature sensors
Display for charge tracking
BRAKE SYSTEM
Shimano high-performance braking system
Four-piston hydraulic disc brake system, stable and reliable
All metal brake pads are durable and have low thermal conductivity
It is characterized by high braking power and increased durability
Robust design that provides excellent braking performance when riding in a variety of styles
Durable streamlined main cylinder
4-piston caliper for confidence on difficult tracks and the pleasure of riding
Heat-insulated pistons for stable braking and reduced pad wear
One-way oil supply to the caliper and pumping with a funnel for quick and convenient maintenance of the brake hydraulic line

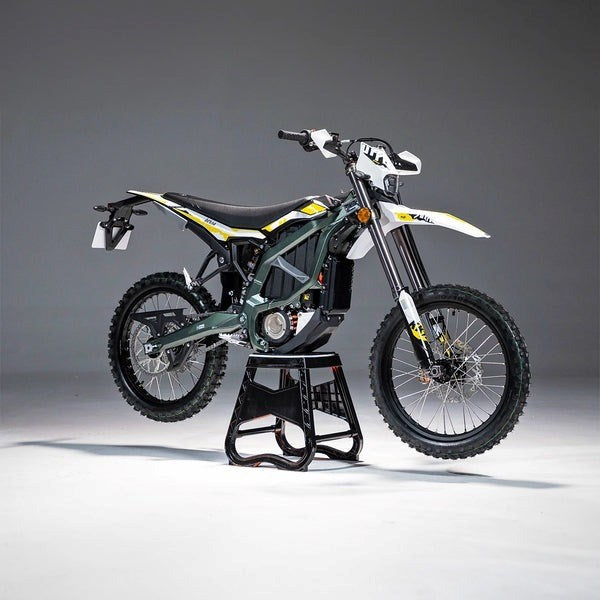

Surron Ultra Bee X Electric Dirt Bike is the perfect choice for off-road enthusiasts. Featuring a powerful electric motor and 72V battery, this bike is designed to provide a thrilling ride across any terrain. Experience peak performance and reliable efficiency with this industry-leading dirt bike.
2.3 s
0-50 km/h
140 km
Max Range
85 kg
Ultra lightweight Design
Product specification
Explore the Ultra Bee T more extensively.
Motor
Dimension: 2010мм 880мм 1178мм
Curb weight: 85 kg
Carrying capacity: 100 kg
Vehicle
Ground clearance: 318 мм
Wheelbase: 1,380 мм
Seat height: 910 мм
Front fork travel: 240 мм
Rear shock/wheeltravel: 85/240 мм
Power system: PMSM
Maximum power (Motor): 12,5 kW
Maximum torque (on wheel): 440 N.M.
Top speed: >90 km/h
Max. range: 140 km (40 km/h)
Electrical Components
Battery type: 74V55AH Lithium-ion Battery pack
Charge time: 4.5 h
Frame material: Forged aluminum alloy
GPS Terminal: APP connection (if available)
Tyres type: Front 80/100-19 off-road / Rear 90/90-19 off-road (80/100-19 optional)
Assistance functions: Surron Traction Control system / Surron Energy Regenerative System
'Bee' Revolution
Ultra Bee, driven by a cutting-edge 4th generation power platform, offers unmatched off-road performance. With precision handling, smooth power output, and advanced traction control, it redefines extreme capability. The race-refined braking system instills confidence on challenging trails. Equipped with TR rear and new front suspension, the Ultra Bee encourages faster rides, extended jumps, and confident cornering—an epitome of off-road excellence.
More about Surron Ultra Bee T
Ultra-light forged aluminum alloy chassis
Compact structure, lowering the center of gravity, providing an unmatched precision and a lightweight handling experience.
Optimized lightweight off-road braking system
Enhanced braking response, uniquely designed parking system allowing one-handed wheel locking.
Balancing on the cutting edge
It combines an aluminum alloy forged chassis with a 4th generation compact powertrain for an evenly distributed 85kg weigh for easy lifting by hand and delivering trail motorcycle capability.
Advanced SRTC
Ultra Bee's SRTC, featured across the lineup, offers three rider-selectable settings controlled by a single button for optimal off-road control in any scenario.
Riding Mode Switch
Choose ECO, DAILY, SPORT, or Reverse modes with user-friendly switches for seamless operation, even while navigating tight lines without losing sight of the road.
Full Adjustable Suspension System
For optimal safety and comfort on various terrains, the distinctive chassis design and steering bump stops enhance protection in case of a fall.
Riding Anytime
A designated space under the seat for the Ultra Bee's charger, equipped with an air-cooling duct, allows on-bike recharging. Charge on the go.
Surron loV System
The Sur-Ron IoV System offers a range of features, including vehicle information, remote status checking, ride tracking, anti-theft safety, OTA updates, and system self-diagnosis.
